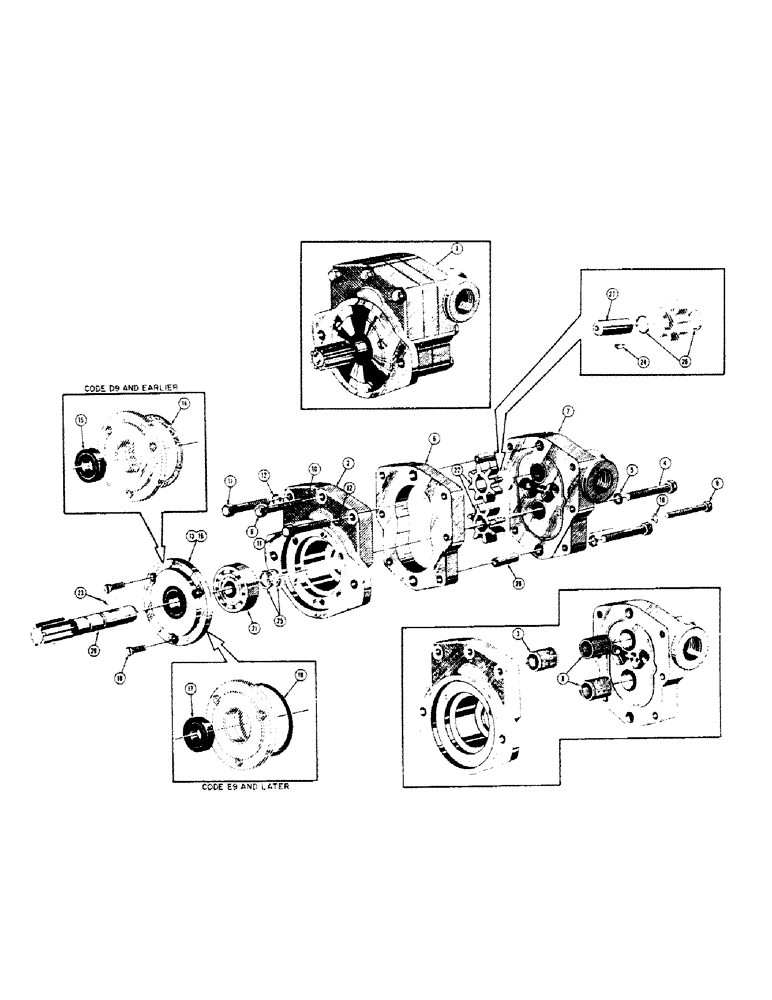

Запчасти Case 310 (100) - 31615 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

1

31615

CAP

PUMP - hydraulic (15 G.P.M.) (Webster #3HCS-4L)

1шт.

2

1969215C1

BUSHING,51.2mm ID x 55.3mm OD x 62mm L

BODY - (Code D9 and earlier pumps only) Use D26062, D27732, and D26065

1шт.

3

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

2

D26062

SHIN

BODY - pump (Code E9 and later pumps)

1шт.

3

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

4

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

3шт.

5

92-5

LOCK WASHER,5/16"

3шт.

6

34452

PLATE - gear

1шт.

7

35695

PLATE

COVER - pump

1шт.

8

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

2шт.

9

14-440

CAPSCREW,Hex, 1/4" - 28 x 2 1/2", Gr 5

HHCS - 1/4" - 28 NF x 2-1/2"

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS - 5/16" - 18 NC x 2-1/4"

3шт.

12

92-5

LOCK WASHER,5/16"

3шт.

13

35737

LEVER

PLATE - pilot (Code D9 and earlier pump only)

1шт.

14

14221

GASKET

- pilot plate

1шт.

15

34449

OIL SEAL

SEAL - oil, driveshaft

1шт.

16

D27332

PLATE - pilot (Code E9 and later pumps only)

1шт.

17

34449

OIL SEAL

SEAL - oil, driveshaft

1шт.

18

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- machine, flat head (Plated) (#10 - 24 NC x 5/8")

3шт.

19

D26065

X

SEAL - "O"ring, pilot plate (Code E9 and later pumps only)

1шт.

20

34445

SHIELD

- drive, pump

1шт.

21

MT2041S

BEARING

- ball, driveshaft

1шт.

22

5445

GEAR-SET

KIT - gear, drive and driven

1шт.

23

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

drive gear to driveshaft #7, 1/8" x 3/4", HT

1шт.

24

34455

HOOK

KEY - Woodruff, driven gear to idler shaft

1шт.

25

O6044AB

X

SNAP RING - drive gear

2шт.

26

D27331

RING

SNAP RING - driven gear

2шт.

27

34451

SHAFT - idler

1шт.

28

NLS

NO LONGER SERVICED

PIN - dowel

2шт.
