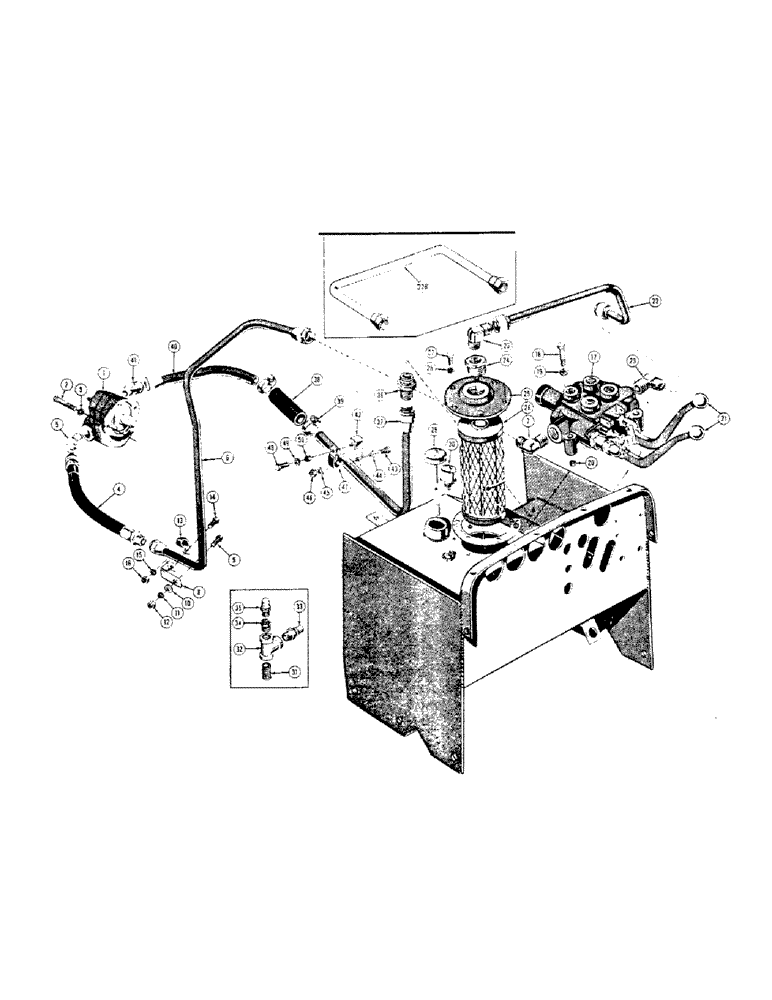

Запчасти Case 310 (096) - BASIC TRACTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

31615

CAP

PUMP - hydraulic, 15 G.P.M. (See figure 100 for breakdown)

1шт.

31614

PUMP - hydraulic, 15 G.P.M. (Backhoe models only) See figure 102 for breakdown (Use D21319 or D26066)

1шт.

D21319

PUMP - hydraulic, 19 G.P.M. (See 31614 and D26066)

1шт.

D26066

PUMP - hydraulic, 19 (Heavy duty) See figure 106 for breakdown (See 31614 and D21319)

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

35710

SPACER

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 21-1/2")

1шт.

5

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (3/4" JIC x 3/4" NPT)

1шт.

6

37760

TUBE - pressure line, hose to valve inlet

1шт.

7

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" JIC x 3/4" NPT)

1шт.

8

37753

BUSHING

BRACKET - tube clamp

1шт.

9

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

1шт.

10

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

1шт.

11

92-8

LOCK WASHER,1/2"

1шт.

12

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

1шт.

13

D20611

CLAMP - tube

1шт.

14

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

15

92-5

LOCK WASHER,5/16"

1шт.

16

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

17

NLS

NO LONGER SERVICED

VALVE - control (See figure108 for breakdown) Use D24387

1шт.

D24387

SPOOL

VALVE - control (See figure 110 for breakdown)

1шт.

18

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

HHCS - 3/8" - 24 NF x 2-1/4"

3шт.

19

92-6

LOCK WASHER,3/8"

3шт.

95-6

WASHER,3/8"

- standard wrot ( I.D. x 7/8" O.D. x 5/64" thick) Not shown 3/8"

3шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

3шт.

21

D20089

LEVER - control, valve

2шт.

22

37761

TUBE - control valve outlet to reservoir (Enters filter elbow from front) Used before tractor serail no. 3003825 (See D20333)

1шт.

22b

D20333

TUBE - control valve outlet to reservoir (Enters fiter elbow from R.H. side of tractor) Used on tractor serial no. 3003825 and after (See 37761)

1шт.

23

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" JIC x 3/4" NPT)

2шт.

24

221-69

BUSHING

- reducing pipe (1-1/4" NPT x 3/4" NPT)

1шт.

25

38266

ARM

CAP - inlet, oil filter

1шт.

26

36442

FILTER

- oil, hydraulic

1шт.

27

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

6шт.

28

92-6

LOCK WASHER,3/8"

6шт.

29

35072

CAP - filler (Dipstick, Serial Range: welded-cap)

1шт.

30

31543

BREATHER

FILTER - breather, reservoir (See D11183)

1шт.

T14011

ELEMENT

- filter (Not shown)

1шт.

D11183

KIT - reservoir pressure control (See 31543)

1шт.

31

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - close pipe (1/4" NPT x 1")

1шт.

32

221-431

TEE

- female pipe (1/4" NPT x 1/4" NPT x 1/8" NPT)

1шт.

33

R15538

VALVE

- relief, vacuum (2 to 5 P.S.I.)

1шт.

34

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - reducing pipe (1/4" NPT x 1/8" NPT)

1шт.

35

R15536

VALVE

- relief, pressure (10 to 20 P.S.I.)

1шт.

36

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (1" JIC x 3/4" NPT)

1шт.

37

36312

NEEDLE BEARING

TUBE - reservoir to pump inlet, rear section

1шт.

38

32798

HOSE

- reservoir to pump inlet, center section (1" I.D. x 1-1/2" O.D. x 6")

1шт.

39

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

40

36535

O-RING

TUBE - reservoir to pump inlet, front section

1шт.

41

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (1" JIC x 3/4" NPT)

1шт.

42

37753

BUSHING

BRACKET - tube clamp

1шт.

43

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

1шт.

44

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

1шт.

45

92-8

LOCK WASHER,1/2"

1шт.

46

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

1шт.

47

49789

CLAMP

- tube

1шт.

48

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

49

92-5

LOCK WASHER,5/16"

1шт.

50

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

44

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

1шт.
