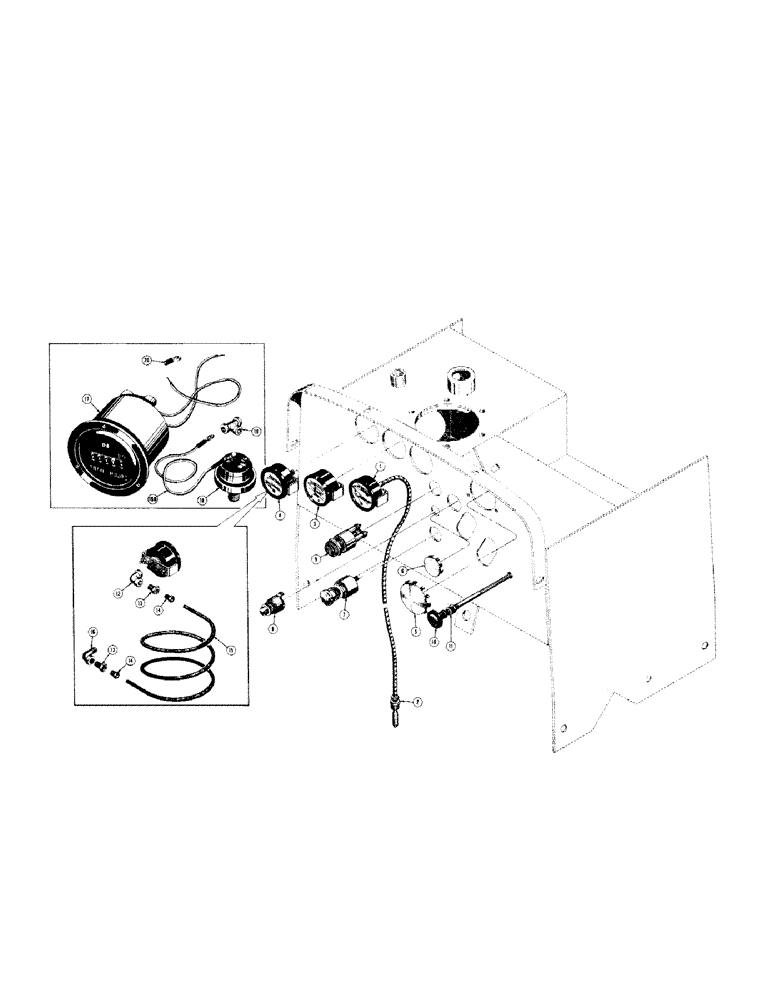

Запчасти Case 310 (046[1]) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

1

11284

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

2

D26015

FITTING

ADAPTER - temperature gauge heat bulb

1шт.

3

10860

X

AMMETER - use R18748

1шт.

R18748

AMMETER

1шт.

4

NLS

NO LONGER SERVICED

GAUGE - oil pressure (Use D26894)

1шт.

D26894

X

GAUGE - oil pressure

1шт.

5

30842

SPARE PART

PLUG - button, hourmeter hole (2" dia.)

1шт.

6

49861

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

PLUG - button, control valve relief adjustment hole (1-1/4" dia.) Use 205-56

1шт.

205-56

PLUG

- button, control valve relief adjustment hole (1-1/4" dia.)

1шт.

7

10855

X

SWITCH - light (Use R22699)

1шт.

R22699

X

SWITCH - light

1шт.

8

D23216

SWITCH

- push button starter

1шт.

9

A10868

DECAL

SWITCH - ignition

1шт.

D20262

KEY

- ignition switch (Not shown)

2шт.

10

10856

CONTROL - carburetor choke

1шт.

10858

LOOM - protective (3/16" O.D. x 32" long) Not shown

1шт.

11

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

2шт.

12

221-365

ELBOW,45 Degree, 1/8" NPT

- female, 45 degrees (1/8" NPT)

1шт.

13

37388

SPRING

NUT - tube, brass

2шт.

14

37389

SPRING

CONNECTOR - tube, brass

2шт.

15

D29789

X

LINE - oil pressure, copper

1шт.

16

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

17

33481

X

METER - engine hours (6-12 volt) Optional

1шт.

18

O8179AB

X

SWITCH - pressure, hourmeter (Use D28798)

1шт.

D28798

SWITCH

- pressure, hourmeter

1шт.

18b

D28797

ELECTRICAL WIRE

WIRE - D28798 pressure switch

1шт.

19

221-421

TEE,1/8" NPT

- pipe ( x 1/8" NPT x 1/8" NPT) Used with hourmeter 1/8" NPT

1шт.

20

54772R2

TERMINAL CONNECTOR

END - wire, eyelet type

1шт.
