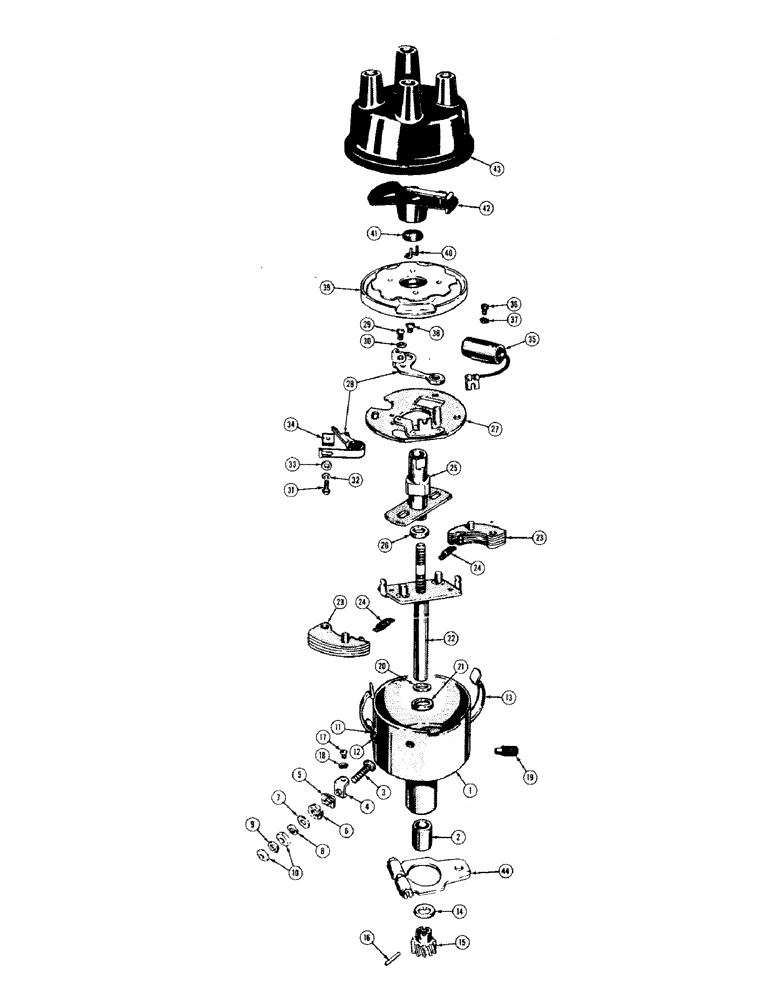

Запчасти Case 310 (038) - G11051 DISTRIBUTOR (AUTO-LITE NO. 1AD-6003-2J) (06) - ELECTRICAL SYSTEMS

A49015

X

DISTRIBUTOR - Auto-Lite #IAD-6003-2J

1шт.

With the exception of references 28, 35, 42, 43, 44 and P/N A49015, all parts numbers must be obtained from an Auto-Lite Service Station.

1шт.

1

IAD-2020

BASE ASSEMBLY - distributor

1шт.

2

24-8

BEARING - absorbent bronze

2шт.

3

31-32

STUD - terminal, primary

1шт.

4

IAD-7

CONNECTOR - terminal stud

1шт.

5

IAD-8

INSULATION - terminal stud

1шт.

IAO-13

BRACKET - mounting, breaker plate (Not shown)

2шт.

6

31-5

TEE,1/8"-27 Female

BUSHING - insulation, terminal stud

1шт.

7

31-33

PLUG

WASHER - insulation, terminal stud

1шт.

8

43-3

WASHER - plain, terminal stud (#10)

1шт.

9

43-6

WASHER - lock, terminal stud (#10)

2шт.

10

43-1

NUT - hex., terminal stud (#10 - 32 NF)

2шт.

11

IAD-14

BRACKET - cap spring

2шт.

12

X-525

RIVET - tubular

4шт.

13

IGZ-9

SPRING - clamp, cap

2шт.

14

31-80

WASHER - thrust, driveshaft (Lower)

1шт.

IG-94

TERMINAL - high tension wire (Not shown)

5шт.

15

GE-98

GEAR - distributor drive

1шт.

16

31-42

RIVET - drive gear

1шт.

17

8X-301

SCREW - round head, connector (#6 - 32 NC x 3/16")

1шт.

18

43-4

WASHER - lock, terminal stud (#6)

1шт.

19

31-2

OILER - driveshaft bearing

1шт.

20

31-6

TEE,1/4"-18 Female

WASHER - thrust, driveshaft inner (Upper)

1шт.

21

31-7

TEE,1/2"-14 Female

WASHER - thrust, driveshaft outer (Upper)

1шт.

22

28-38

SHAFT - distributor drive

1шт.

23

IGC-2168R

WEIGHT - governor

2шт.

24

IGB-252S

SPRING - governor weight (Set of two)

1шт.

25

29-7

GAUGE

CAM AND STOP PLATE - 4 cylinder

1шт.

IGT-70

SPRING - anti-rattle (Not shown)

1шт.

26

31-38

PLUG

SPACER - cam

1шт.

IGS-117

WICK - felt (Not shown)

1шт.

7-1

PLATE ASSEMBLY - breaker, complete

1шт.

27

7-26

CLAMP

PLATE - breaker

1шт.

28

A8371

X

CONTRACT SET - breaker points (Auto-Lite #1-45)

1шт.

With the exception of references 28, 35, 42, 43, 44 and P/N A49015, all parts numbers must be obtained from an Auto-Lite Service Station.

1шт.

29

43-17

SCREW - lock, fillister head (#8 - 32 NC x 3/16")

1шт.

30

43-13

WASHER - plain (#8)

1шт.

31

31-28

SCREW

- spring clamp (#6 - 32 NC x 5/16")

1шт.

32

43-4

WASHER - lock (#6)

1шт.

33

8X-353

WASHER - plain (#6)

1шт.

34

31-22

ELBOW

CLIP - contact arm spring

1шт.

35

A8370

PACKAGE

CONDENSER - Auto-Lite #2-32

1шт.

With the exception of references 28, 35, 42, 43, 44 and P/N A49015, all parts numbers must be obtained from an Auto-Lite Service Station.

1шт.

36

43-27

SCREW - condenser, fillister head (#6 - 32 NC x 5/32")

1шт.

37

43-4

WASHER - lock, condenser screw (#6)

1шт.

38

X-2878

SCREW - fillister head, breaker plate (#10 - 32 NF x 5/16")

2шт.

39

IAD-2015

PLATE ASSEMBLY - seal

1шт.

IAD-12

WASHER - felt (Not shown)

1шт.

40

31-23

SNAP RING - cam retaining

1шт.

41

31-31

TEE,3/8"-18 Female

WICK - felt, cam sleeve

1шт.

31-36

PLUG

- rubber, vent hole (Not shown)

1шт.

42

8369

ROTOR - distributor (Auto-Lite #4-10)

1шт.

With the exception of references 28, 35, 42, 43, 44 and P/N A49015, all parts numbers must be obtained from an Auto-Lite Service Station.

1шт.

43

A8368

CAP

ASSEMBLY - distributor (Auto-Lite #3-11)

1шт.

With the exception of references 28, 35, 42, 43, 44 and P/N A49015, all parts numbers must be obtained from an Auto-Lite Service Station.

1шт.

31-21

ELBOW

CONTACT - plunger (Not shown)

1шт.

50-27

SPRING - contact (Not shown)

1шт.

44

VTA2775

X

ARM - advance, distributor

1шт.

With the exception of references 28, 35, 42, 43, 44 and P/N A49015, all parts numbers must be obtained from an Auto-Lite Service Station.

1шт.
