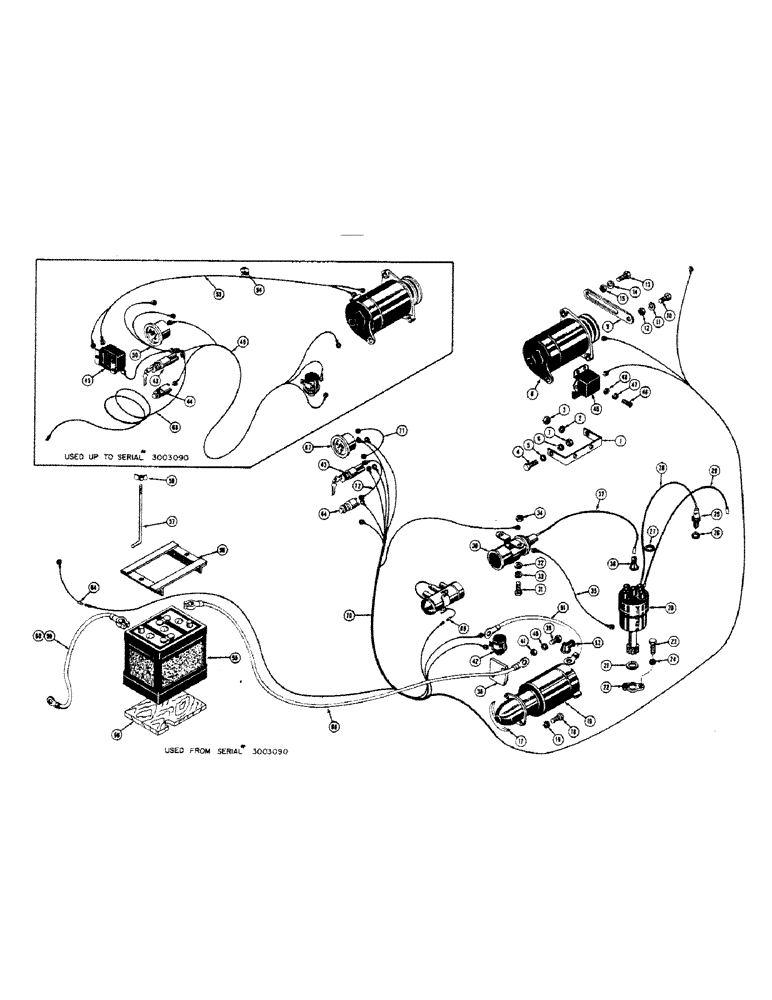

Запчасти Case 310 (030) - STARTER, GENERATOR, BATTERY, AND WIRING (6 VOLT), USED BEFORE TRACTOR S/N 3003825 (06) - ELECTRICAL SYSTEMS

1

G10826

BRACKET - generator

1шт.

2

92-6

LOCK WASHER,3/8"

2шт.

3

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

4

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

2шт.

5

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

8

G13080

GENERATOR - 6 volt

1шт.

9

G10827

STRAP - generator adjusting

1шт.

10

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF x 1-1/4"

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

13

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

16

G13920

MOTOR - starting, 6 volt

1шт.

17

V14662

SEAL - felt, starting motor

1шт.

18

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

HHCS - 7/16" - 14 NC x 1"

2шт.

19

92-7

LOCK WASHER,7/16"

2шт.

20

A49015

X

DISTRIBUTOR - Auto-Lite #IAD-6003-2J (See figure 38 for breakdown)

1шт.

21

VT5060

X

WASHER - thrust, distributor advance arm

1шт.

22

VTA2775

X

ARM - distributor advance

1шт.

23

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

G44840

SPARK PLUG

- 18MM (Champion #D-16)

4шт.

26

G46839

GASKET

- spark plug

1шт.

27

V20356

NUT

WASHER - rubber, spark plug wire retaining

1шт.

28

VTA3354

X

WIRE - #2 and #3 spark plugs (8-1/2" long)

2шт.

29

VT2879

X

WIRE - #1 and #4 spark plugs (10-1/2" long)

2шт.

29b

G11705

BRACKET

STRAP - mounting, coil to valve cover stud (Not shown)

1шт.

30

G44810

X

COIL - ignition

1шт.

30b

G46106

BRACKET

BAND - coil mounting (Not shown)

1шт.

173-219

SCREW - machine, round head, (Zinc plated) #10 - 32 NF x 1-1/2" (Not shown)

1шт.

31

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4" - 28 NF x 3/4"

2шт.

32

195-18

WASHER,1/4"

- plain (9/32" I.D. x 5/8" O.D. x 5/64" thick)

2шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

34

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

2шт.

35

VT3534

X

CABLE - coil to distributor (11" long)

1шт.

36

VT3561

X

NIPPLE - rubber, spark plug wire and coil cable

6шт.

37

G13085

ELECTRICAL WIRE

WIRE - distributor to coil (12" long)

1шт.

38

G11286

BRACKET - solenoid support

1шт.

39

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

- machine, round Phillips head (1/4" - 20 NC x 3/4")

2шт.

40

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

42

G44839

SOLENOID

- starting

1шт.

43

A10868

DECAL

SWITCH - ignition

1шт.

D20262

KEY

- ignition switch (Not shown)

2шт.

44

D23216

SWITCH

- push button starter

1шт.

45

G13081

X

REGULATOR - voltage (Auto-Lite #VRR4105A)

1шт.

46

77-812

SCREW - machine, truss head (1/4" - 20 NC x 3/4"_

3шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

48

25-104

NUT,1/4"-20, G5

3шт.

49

G13158

CABLE - ignition switch to solenoid, ammeter, and starter switch

1шт.

50

G13159

CABLE - ammeter to voltage regulator, hourmeter, and ignition switch

1шт.

51

G13164

CABLE -, Serial Range: solenoid-starter

1шт.

52

A21753

CAP

NIPPLE - starter and solenoid terminals

3шт.

53

G13160

CABLE - generator to voltage regulator

1шт.

54

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- wiring

2шт.

55

O8934AB

BATTERY - 6 volt (Auto-Lite #1M-105R)

1шт.

56

38179

CLAMP

BRACKET - battery hold down

1шт.

57

38892

BOLT - angle, battery hold down bracket retaining (5/16" - 18 NC x 10")

2шт.

58

129-419

WING NUT,5/16"-18

NUT - wing (5/16" - 18 NC)

2шт.

59

30875

CABLE - battery, ground (75" long) Used up to serial no. 3003090

1шт.

38478

CALBE - battery, ground (16" long) Used on serial no. 3003090 and after (Use D11194)

1шт.

D11194

KIT

- cable, improved electrical ground

1шт.

60

D27497

CABLE - battery, ground (35" long)

1шт.

61

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Not shown Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

62

92-6

LOCK WASHER,3/8"

not shown 3/8"

1шт.

63

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) (Not shown)

1шт.

64

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber (Not shown)

1шт.

65

32375

CABLE

- battery, hot (75" long)

1шт.

66

38178

BOARD - battery bottom

1шт.

67

10860

X

AMMETER

1шт.

68

36795

CABLE

CABLE - electric, ignition switch to fuel pump (Use 38870)

1шт.

38870

CABLE - electric, ignition switch to fuel pump

1шт.

69

32395

SEAL ASSY.

BULLET - wireing (Used on serial no. 3003090 and after)

1шт.

70

38868

HARNESS - wiring (Used on serial no. 3003090 and after)

1шт.

VT2124

X

FUSE - 20 amp (Mfrs. #SFE-20) Not shown

2шт.

71

33706

WIRE - ammeter to ignition switch (Used on serial no. 3003090 and after)

1шт.

72

33709

WIRE - ignition switch to starter buttom (Used on serial no. 3003090 and after)

1шт.
