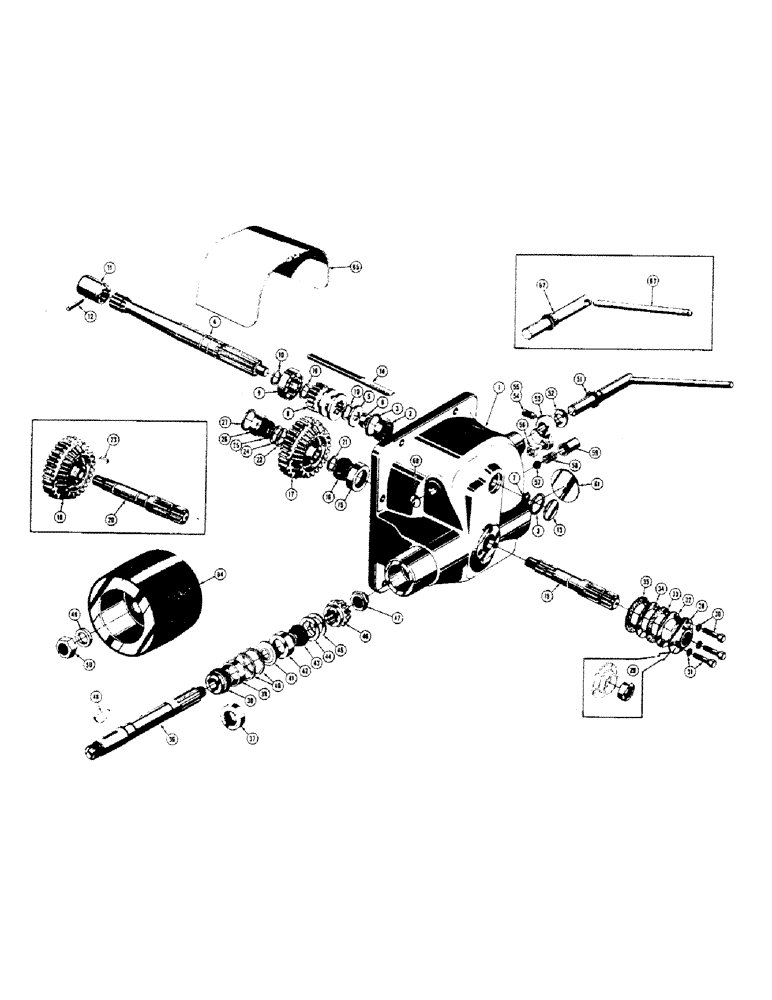

Запчасти Case 310 (182) - POWER TAKE-OFF AND BELT PULLEY (05) - UPPERSTRUCTURE CHASSIS

D23999

POWER TAKE-OFF - complete, model #70 BP-18 (Control mounted on P.T.O.) When stock is exhausted, use D29504 and 23047

1шт.

D29504

POWER TAKE-OFF - complete, model #70 BP-19 (Control mounted in tractor cockpit) See D23999

1шт.

1

23087

HYDRAULIC HOSE

HOUSING - P.T.O. drive (Includes (1) 11453 snap ring for inner bearing on belt pulley shaft)

1шт.

2

23043

BEARING - P.T.O. drive shaft

1шт.

3

23030

PLATE

SNAP RING - P.T.O. shaft bearing

2шт.

4

23009

OIL SEAL

SHAFT - P.T.O. drive

1шт.

5

23022

HYDRAULIC HOSE

SPACER - driveshaft bearing

1шт.

6

23023

BEARING CONE,0.669" ID x 0.9797" OD

RACE - inner, driveshaft bearing

1шт.

7

23024

HYDRAULIC HOSE

RING - retaining, driveshaft

1шт.

8

23054

CARTRIDGE

GEAR - drive, P.T.O. shaft (Has 207959 stamped in surface) when stock is exhausted, use D29503 P.T.O. shaft drive gear and D293997)

1шт.

When replacing 23054 P.T.O. shaft drive gear with D29503 P.T.O. shaft drive gear, it will also be necessary to order (1) D29502 P.T.O. shaft driven gear. When replacing D23997 P.T.O. shaft driven gear with D29502 P.T.O. shaft driven gear, it will also be necessary to order (1) D29503 P.T.O. shaft drive gear.

1шт.

8

D29503

GEAR - drive, P.T.O. shaft (Has 216628 stamped in surface) See 23054

1шт.

9

40040

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

- ball

1шт.

10

VT211

SNAP RING - P.T.O. driveshaft

3шт.

11

23018

SLEEVE,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

- driveshaft

1шт.

12

23019

RIVET

- driveshaft sleeve

1шт.

13

23080

HYDRAULIC HOSE

PLUG - expansion, P.T.O. driveshaft hole

1шт.

14

23088

TUBE

- oil, P.T.O. bearing

1шт.

15

O4056TS

CUP

- bearing

1шт.

16

VT3404

X

CONE - bearing

1шт.

17

D23997

GEAR - driven, P.T.O. shaft (Has splined hub) Has 224725 stamped in surface, when stock is exhausted, use D29502 P.T.O. shaft drive gear and D29503 P.T.O. shaft drive gear) See 23054 and 23073

1шт.

When replacing 23054 P.T.O. shaft drive gear with D29503 P.T.O. shaft drive gear, it will also be necessary to order (1) D29502 P.T.O. shaft driven gear. When replacing D23997 P.T.O. shaft driven gear with D29502 P.T.O. shaft driven gear, it will also be necessary to order (1) D29503 P.T.O. shaft drive gear.

1шт.

17

D29502

GEAR - driven, P.T.O. shaft (Has splined hub) Has 216627 stamped in surface (See D23997 and 23073)

1шт.

18

23073

HYDRAULIC HOSE,Hex, 3/4"-10 x 10", G5

GEAR - driven, P.T.O. shaft (Has keyed hub) See D23997 and D29502

1шт.

19

D23998

SHAFT - P.T.O. (Used with D23997 gear or D29502 gear having splined hub) See 23025

1шт.

20

23025

HYDRAULIC HOSE

SHAFT - P.T.O. (Used with 23073 gear having keyed hub) See D23998

1шт.

21

VT2111

X

SNAP RING - outer bearing retaining

1шт.

22

D23996

SPACER - front bearing, P.T.O. shaft (for use with splined gear and shaft)

1шт.

23

23032

X

KEY - Woodruff (Used with keyed gear and shaft)

1шт.

24

D25223

SHIM - P.T.O. shaft inner bearing (.010" thick)

1шт.

D25222

SHIM - P.T.O. shaft inner bearing (.015" thick)

1шт.

23038

HYDRAULIC HOSE

SHIM - P.T.O. shaft inner bearing (.020" thick)

1шт.

25

O1542AB

BEARING ASSY

CONE - bearing

1шт.

26

VT2214

X

CUP - bearing

1шт.

27

23031

HYDRAULIC HOSE

SNAP RING - bearing retaining

1шт.

28

23011

PIN

CAP - P.T.O. shaft bearing

1шт.

29

23033

OIL SEAL

SEAL - oil, P.T.O. shaft

1шт.

30

NLS

NO LONGER SERVICED

SCREW AND LOCKWASHER ASSEMBLY

1шт.

31

23016

CAP

SCREW AND LOCKWASHER ASSEMBLY

2шт.

32

23013

TINE

SHIM - bearing cap (.010" thick)

1шт.

33

23014

4 WAY CONNECTION

GASKET - bearing cap

1шт.

34

23012

TINE

SHIM - bearing cap (.005" thick)

1шт.

35

23015

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

GASKET - bearing cap

1шт.

36

23027

SHAFT - belt pulley

1шт.

37

40634

WASHER

SEAL - oil, belt pulley shaft

1шт.

38

VT3404

X

CONE - bearing

1шт.

39

O4056TS

CUP

- bearing

1шт.

40

11453

TAPERED BEARING

SNAP RING - bearing retaining, belt pulley shaft

2шт.

41

23037

HYDRAULIC HOSE

WASHER - oil, belt pulley shaft

1шт.

42

O4056TS

CUP

- bearing

1шт.

43

VT3404

X

CONE - bearing

1шт.

44

23035

HYDRAULIC HOSE

SHIM - belt pulley shaft inner bearing (.005" thick)

1шт.

45

23036

HYDRAULIC HOSE

SHIM - belt pulley shaft inner bearing (.010" thick)

1шт.

46

23074

HYDRAULIC HOSE

GEAR - drive, belt pulley shaft

1шт.

47

11380

NUT

- belt pulley gear retaining

1шт.

48

D20977

X

KEY - Woodruff, belt pulley shaft

1шт.

49

23042

HYDRAULIC HOSE

WASHER - belt pulley retaining nut

1шт.

50

23041

HYDRAULIC HOSE

NUT - belt pulley retaining

1шт.

51

23046

VALVE SPRING

LEVER AND SHAFT - P.T.O. shift (for use with P.T.O. that does not have cockpit control) when stock is exhausted, use (1) D28969 shaft and (1) 23047 lever

1шт.

When replacing 23046 shift lever and shaft assembly with D28969 shaft and 23047 lever, 23047 lever must be welded to D28969 shaft in the field.

1шт.

52

23093

HYDRAULIC HOSE

WASHER - cork, shift shaft

1шт.

53

23094

HYDRAULIC HOSE

FINGER - shift

1шт.

54

23095

HYDRAULIC HOSE

SCREW - mounting, shift finger

1шт.

55

R10831

ELECTRICAL WIRE

LOCKWIRE - shift finger mounting screw

1шт.

56

23096

FILTER ASSY

TRUNNION - shift finger

1шт.

57

O8296AB

X

BALL - mesh lock (5/8" dia.) Use 211-15

1шт.

211-15

BALL,5/8" Dia

- mesh lock (.) 5/8" Dia

1шт.

58

23098

SPRING

- mesh lock ball

1шт.

59

23097

FLANGE NUT,Flg, 7/16"-14, GF

RETAINER - mesh lock spring

1шт.

60

23089

HYDRAULIC HOSE

PLUG - expansion, shift shaft hole

1шт.

61

23034

HYDRAULIC HOSE

PLUG - expansion, belt pulley shaft hole

1шт.

62

D28969

SHAFT - P.T.O. shift (For use with P.T.O. that has cockpit control) See 23046

1шт.

63

23047

HYDRAULIC HOSE

LEVER - P.T.O. shift shaft (Used only on P.T.O. that does not have cockpit control) See 23046

1шт.

When replacing 23046 shift lever and shaft assembly with D28969 shaft and 23047 lever, 23047 lever must be welded to D28969 shaft in the field.

1шт.

64

23045

BUSHING

PULLEY - belt, P.T.O.

1шт.

65

23040

HYDRAULIC HOSE

SHIELD - P.T.O.

1шт.
