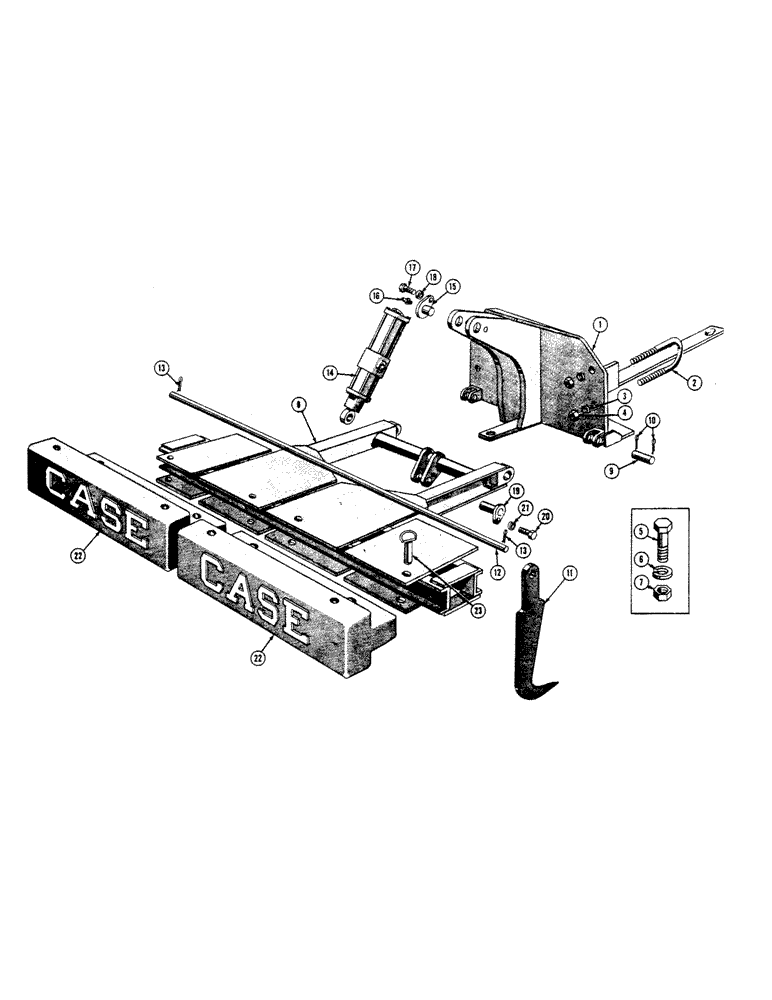

Запчасти Case 310 (154) - SCARIFIER (05) - UPPERSTRUCTURE CHASSIS

1

37399

PUMP, FUEL INJECTION

PLATE - mounting

1шт.

2

31696

BOLT

"U" BOLT - mouting plate to final drive spacer tubes

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

4шт.

5

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

8

37398

FRAME - Scarifier

1шт.

9

31715

PIN

- mounting, frame to mounting plate

2шт.

10

132-152

PIN

- cotter (1/4" x 1-3/4")

4шт.

11

31752

LINE

TOOTH - Scarifier

5шт.

12

31714

ROD - holding, Scarifier tooth

1шт.

13

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

14

D27696

CYLINDER - hydraulic, Scarifier (See figure 160 for breakdown)

1шт.

15

35031

PIN

- trunnion, cylinder

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

17

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

2шт.

18

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin (Not shown)

2шт.

19

D21331

PIN - mounting, Serial Range: cylinder-frame

1шт.

20

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

1шт.

21

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

D23740

BUSHING

- lockhead pin (Not shown)

1шт.

22

19041

WEIGHT - Scarifier

2шт.

23

CAS19055

PIN ASSY.

PIN - mounting, Scarifier weight

4шт.
