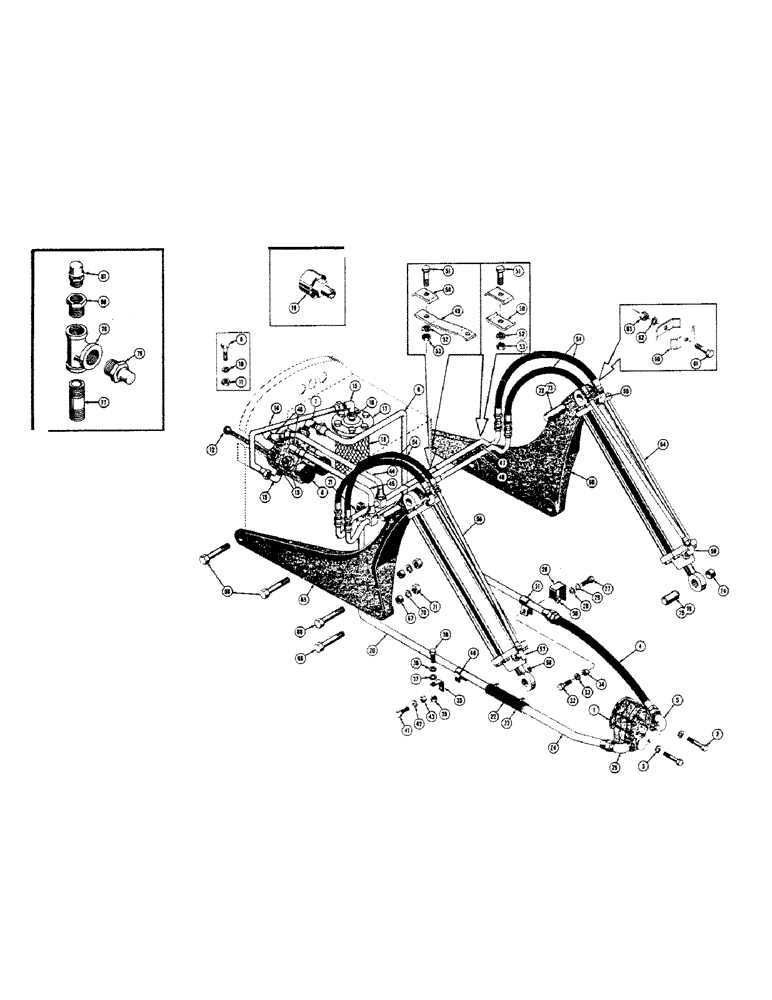

Запчасти Case 310 (146) - BULLDOZER AND MECHANICAL ANGLING DOZER HYDRAULICS (05) - UPPERSTRUCTURE CHASSIS

1

31615

CAP

PUMP - hydraulic, 15 G.P.M. (See figure 100 for breakdown)

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

35710

SPACER

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 21-1/2")

1шт.

5

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (3/4" JIC x 3/4" NPT)

1шт.

6

37760

TUBE - pump to valve inlet, rear section

1шт.

7

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" JIC x 3/4" NPT)

1шт.

8

NLS

NO LONGER SERVICED

VALVE - control (See figure 108 for breakdown) Use D24387

1шт.

D24387

SPOOL

VALVE - control (See figure 110 for breakdown)

1шт.

9

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

HHCS - 3/8" - 24 NF x 2-1/4"

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

95-6

WASHER,3/8"

- standard wrot ( I.D.x 7/8" O.D. x 5/64" thick) Not shown 3/8"

3шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

3шт.

12

D20089

LEVER - control, valve

1шт.

13

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, swuare head (1/2" NPT)

2шт.

14

37761

TUBE - control valve outlet to reservoir (Enters filter elbow from front) Used before tractor serial no. 3003825 (See D20333)

1шт.

D20333

TUBE - control valve outlet to reservoir (Enters filter elbow from R.H. side of tractor) Used on tractor serial no. 3003825 and after (See 37761)

1шт.

15

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" JIC x 3/4" NPT)

2шт.

16

221-69

BUSHING

- reducing pipe (1-1/4" NPT x 3/4" NPT)

1шт.

17

38266

ARM

CAP - inlet, oil filter

1шт.

18

36442

FILTER

- hydraulic oil

1шт.

19

31543

BREATHER

FILTER - breather (See D1183)

1шт.

T14011

ELEMENT

- filter (Not shown)

1шт.

20

36312

NEEDLE BEARING

TUBE - reservoir to pump inlet, rear section

1шт.

21

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (1" JIC x 3/4" NPT)

1шт.

22

32798

HOSE

- reservoir to pump inlet, center section (1" I.D. x 1-1/2" O.D. x 6")

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

24

36535

O-RING

TUBE - reservoir to pump inlet, front section

1шт.

25

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (1" JIC x 3/4" NPT)

1шт.

26

37753

BUSHING

BRACKET - tube clamp

1шт.

27

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

1шт.

28

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

1шт.

29

92-8

LOCK WASHER,1/2"

1шт.

30

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

1шт.

31

D20611

CLAMP - tube

1шт.

32

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

33

92-5

LOCK WASHER,5/16"

1шт.

34

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

35

37753

BUSHING

BRACKET - tube clamp

1шт.

36

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

1шт.

37

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1/16" O.D. x 3/32" thick)

1шт.

38

92-8

LOCK WASHER,1/2"

1шт.

39

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

1шт.

40

49789

CLAMP

- tube

1шт.

41

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

42

92-5

LOCK WASHER,5/16"

1шт.

43

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

44

38242

TUBE

- L.H. rear valve port to rear manifold tube

1шт.

45

D20096

TUBE - L.H. front valve port to front manifold tube

1шт.

46

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

47

38241

SCREW

TUBE - manifold, rear

1шт.

48

38240

NUT

TUBE - manifold, front

1шт.

49

D20324

STRAP - support, clamp plate

1шт.

50

32978

PLATE ASSY.

PLATE - clamp

4шт.

51

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16" - 24 NF x 1-1/2"

3шт.

52

92-5

LOCK WASHER,5/16"

3шт.

53

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

3шт.

54

35543

HOSE

- rear manifold tube to upper cylinder port, also front manifold tube to lower cylinder port (Rear section) 1/2" I.D. x 7/8" O.D. x 28"

4шт.

55

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

56

38849

BOLT,Hex, M6 x 80mm, Cl 8.8

TUBE - front manifold tube to lower cylinder port, front section (See 38259)

2шт.

38259

TUBE - front manifold tube to lower cylinder port, front section (See 38849)

2шт.

57

33888

ELBOW - special, 90 degrees (5/8" JIC male x 1/2" NPT male x 1/8" NPT female)

1шт.

58

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

59

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

60

31665

COLLAR CLAMP

PLATE - clamp

4шт.

61

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

62

92-5

LOCK WASHER,5/16"

2шт.

63

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

64

17751

CYLINDER - dozer lift, hydraulic (See figure 150 for breakdown) See 38137

2шт.

38137

CYLINDER - dozer dozer lift, hydraulic (See figure 152 for breakdown) High lift bulldozer only (See 17751)

2шт.

65

16692

BRACKET - cylinder, R.H.

1шт.

66

16693

CLAMP

BRACKET - cylinder, L.H.

1шт.

67

32799

SPACER - cylinder bracket

4шт.

68

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

6шт.

69

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8" - 18 NF x 2-3/4"

2шт.

70

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

71

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

8шт.

72

16726

PIN - mounting, cylinder to cylinder bracket

2шт.

73

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

74

17631

BUSHING - cylinder

2шт.

75

18743

PIN - mounting, Serial Range: cylinder-dozer

2шт.

76

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

D11183

KIT - reservoir pressure

1шт.

77

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - close pipe (1/4" NPT x 1")

1шт.

78

221-431

TEE

- pipe (1/4" NPT x 1/4" NPT x 3/8" NPT)

1шт.

79

R15538

VALVE

- relief, vacuum (2 to 5 P.S.I.)

1шт.

80

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - reducing pipe (1/4" NPT x 1/8" NPT)

1шт.

81

R15536

VALVE

- relief, pressure (10 to 20 P.S.I.)

1шт.
