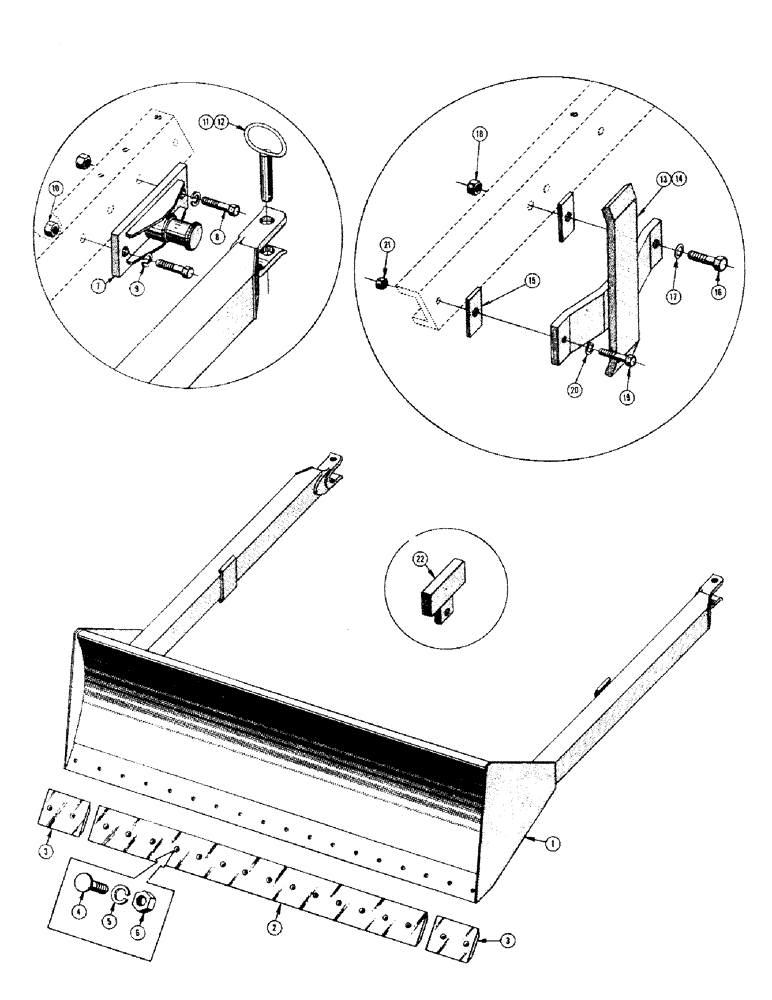

Запчасти Case 310 (142) - HIGH LIFT BULLDOZER (05) - UPPERSTRUCTURE CHASSIS

38122

MOLDBOARD AND PUSH BEAM ASSEMBLY - bulldozer, complete

1шт.

1

38123

MOLDBOARD AND PUSH BEAM - bulldozer

1шт.

2

NLS

NO LONGER SERVICED

EDGE - cutting, center

1шт.

3

38150

EDGE

- cutting, end

2шт.

4

19-832

BOLT

- plow, #3 head (1/2" - 13 NC x 2")

18шт.

5

92-8

LOCK WASHER,1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

18шт.

7

38142

BRACKET - pivot, dozer attaching

2шт.

8

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4" - 16 NF x 2-1/4"

4шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

10

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

4шт.

11

33180

POINT

PIN - mounting, push beam to pivot bracket

2шт.

12

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

13

38212

PLATE - dozer rub, L.H.

1шт.

14

38211

FLANGE

PLATE - dozer rub, R.H.

1шт.

15

38220

SPACER - dozer rub plate

4шт.

16

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4" - 16 NF x 2-1/4"

2шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

18

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

2шт.

19

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4"

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

2шт.

22

33676

DRAWBAR SUPPORT

BLOCK - limit, leaf spring

2шт.
