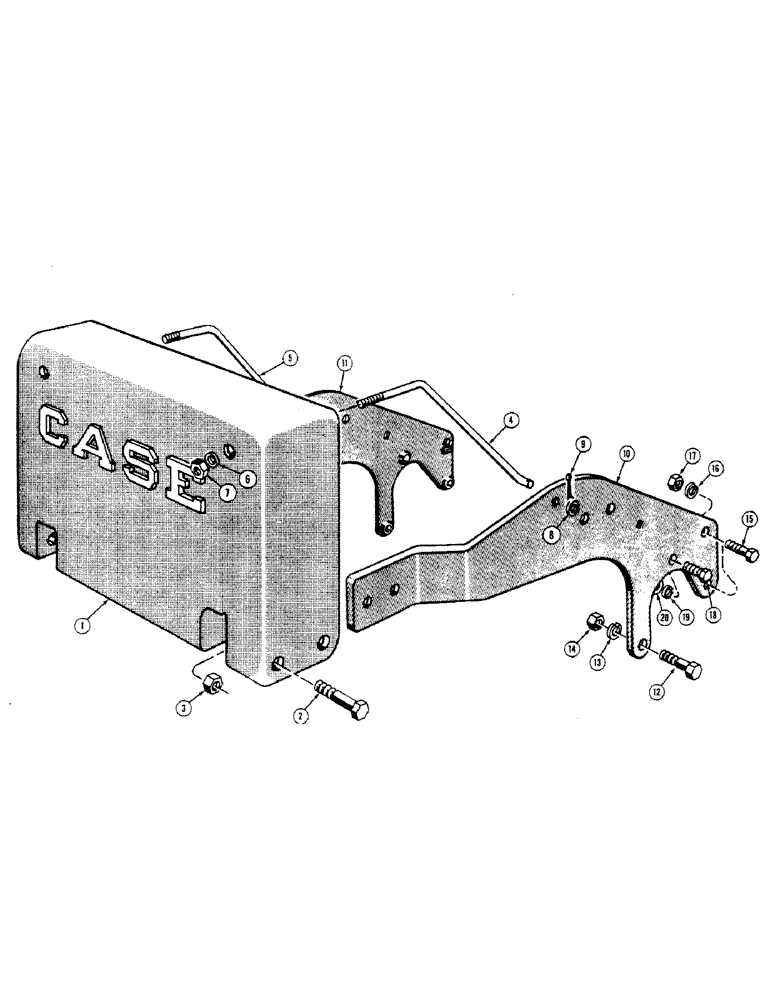

Запчасти Case 310 (132) - REAR COUNTERWEIGHT (WITH P.T.O. AND BELT PULLEY) (05) - UPPERSTRUCTURE CHASSIS

1

31112

O-RING

COUNTERWEIGHT - rear, 1400 lb.

1шт.

2

13-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

4шт.

3

230-41116

NUT,1"-8, GA

NUT - lock (1" - 8 NC)

4шт.

4

D21392

ROD - stabilizer, R.H.

1шт.

5

D21393

ROD - stabilizer, L.H.

1шт.

6

195-41

WASHER,5/8"

2шт.

7

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8" - 18 NF)

2шт.

8

95-10

WASHER,5/8"

- standard wrot (11/16" I.D.x 1-3/4" O.D. x 9/64" thick)

2шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

10

D21263

ARM - counterweight support, R.H. (Original equipment) When stock is exhausted, order 1 - D29766, 2 - 13-1244, 2 - 92-12, and 2 - 25-1012

1шт.

D29766

ARM - counterweight support, R.H. (Replacement) See D21263

1шт.

11

D21264

ARM - counterweight support, L.H. (Original equipment) When stock is exhausted, order 1 - D29767, 2 - 13-1244, 2 - 92-12, and 2 - 2525-1012

1шт.

D29767

ARM - counterweight support, L.H. (Replacement) See D21264

1шт.

12

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

25-1012

NUT,3/4"-10, G5

2шт.

15

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8" - 18 NF x 2-3/4" (Used with D21263 and D21264 support arms) See 13-1244

4шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

(D29766 and D29767 support arms) See 14-1044 Hex, 3/4"-10 x 2 3/4", G5

4шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 14-1044 cap screw (See 92-12) 5/8"

4шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , 13-1244 cap screw (See 92-10) 3/4"

4шт.

17

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF) 14-1044 cap screw (See 25-1012)

4шт.

25-1012

NUT,3/4"-10, G5

14-1244 cap screw (See 25-1110) 3/4"-10, G5

4шт.

18

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.
