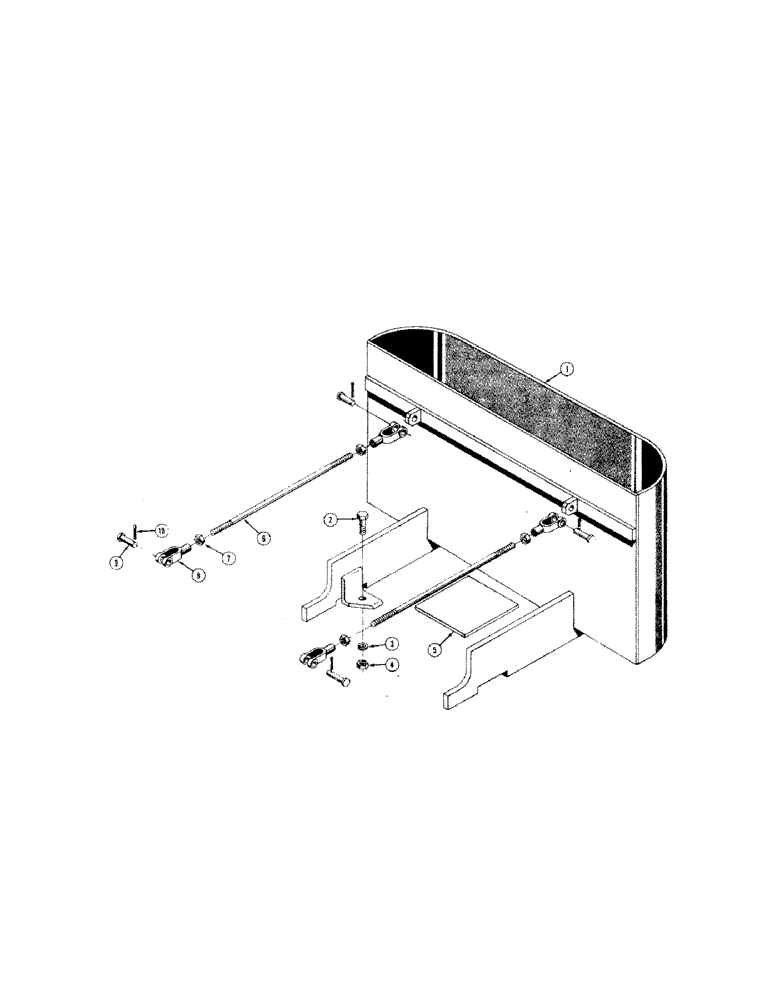

Запчасти Case 310 (128[1]) - REAR WEIGHT BOX (OPTIONAL) (05) - UPPERSTRUCTURE CHASSIS

1

31633

BOX - ballast

1шт.

2

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

5

18626

DOOR - sliding

1шт.

6

34387

SPACER

ROD - holding

2шт.

7

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

8

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

END - yoke, adjustable

4шт.

9

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

4шт.

10

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.
