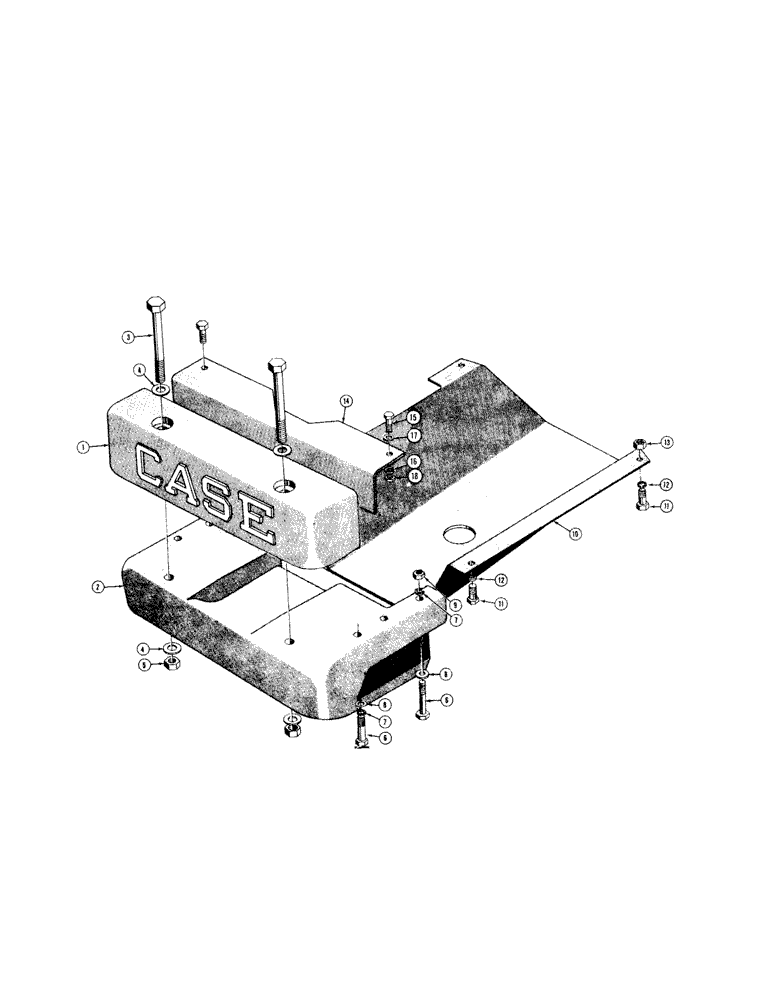

Запчасти Case 310 (090[1]) - FRONT COUNTERWEIGHT, BUMPER, AND SPECIAL CRANKCASE (05) - UPPERSTRUCTURE CHASSIS

1

37490

BLOCK

COUNTERWEIGHT - upper

1шт.

2

36616

SHIM

COUNTERWEIGHT - lower

1шт.

3

14-10120

BOLT,Hex, 5/8" - 18 x 7-1/2", Gr 5

HHCS - 5/8" - 18 NF x 7-1/2"

2шт.

4

95-10

WASHER,5/8"

- standard wrot (11/16" I.D. x 1-3/4" O.D. x 9/64" thick)

4шт.

5

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8" - 18 NF)

2шт.

6

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

6шт.

7

92-8

LOCK WASHER,1/2"

6шт.

8

95-8

WASHER,1/2"

- standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

6шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

10

D20062

GUARD - crankcase

1шт.

11

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/4"

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

14

38507

PLATE

BUMPER - front

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

95-8

WASHER,1/2"

- standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

2шт.

18

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.
