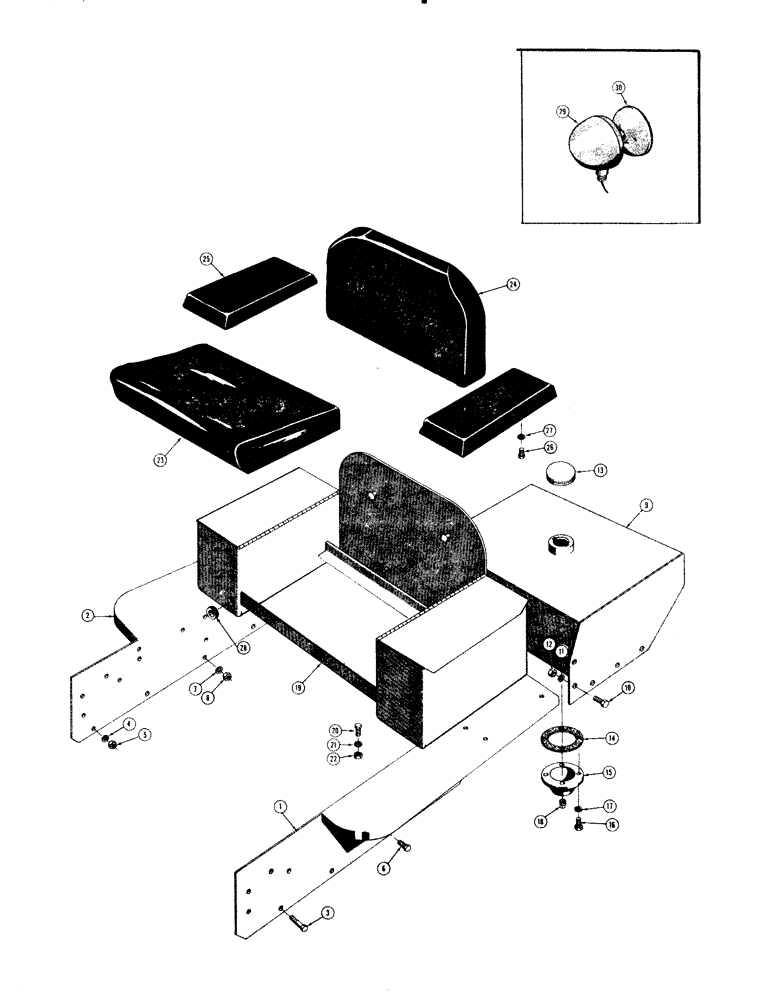

Запчасти Case 310 (088) - FENDERS, FUEL TANK, SEAT, AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

37765

FENDER - L.H. (Used before tractor serial no. 3003825) Use 38488

1шт.

38488

HYD CONNECTOR

FENDER - L.H. (Used on tractor serial no. 3003825 and after)

1шт.

D21125

FENDER - L.H. (36" gauge tractor)

1шт.

D20088

FENDER - L.H. (Loader models only) Used before tractor serial no. 3002825

1шт.

38746

DECAL

FENDER - L.H. (Loader models only) Used on tractor serial no. 3003825 and after

1шт.

2

37764

FENDER - R.H. (Used before tractor serial no. 3003825) Use 38489

1шт.

38489

HYD CONNECTOR

FENDER - R.H. (Used on tractor serial no. 3003825 and after)

1шт.

D21124

FENDER - R.H. (36" gauge tractor)

1шт.

D20087

FENDER - R.H. (Loader models only) Used before tractor serial no. 3003825

1шт.

38747

FENDER - R.H. (Loader models only) Used on tractor serial no. 3003825 and after

1шт.

3

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

6

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 20 NF x 1-3/4"

3шт.

7

92-8

LOCK WASHER,1/2"

3шт.

8

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

3шт.

9

13635

SCREW

TANK - fuel, 8 gal. (Used before tractor serial no. 3003090)

1шт.

38802

WASHER

TANK - fuel, 8 gal. (Used on tractore serial no. 3003090 and after) Use D24866

1шт.

D24866

TANK - fuel, 10 gal. (Replacement fuel tank for tractor serial no. 3003090 and after)

1шт.

10

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8" - 24 NF x 7/8"

10шт.

11

92-6

LOCK WASHER,3/8"

10шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

10шт.

13

CASE10731

FILLER CAP

CAP - filler, fuel tank

1шт.

14

35621

GASKET

- drain cover

1шт.

15

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - drain, fuel tank

1шт.

16

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

19

37766

GEARBOX

SEAT - used before tractor serial no. 3004445 (Use D21051)

1шт.

38692

SEAT CUSHION

SEAT - used on tractor serial no. 3004445 and after (Use D21051)

1шт.

D21051

SEAT - replacement (See 37766 and 38692)

1шт.

20

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8" - 24 NF x 7/8"

6шт.

21

92-6

LOCK WASHER,3/8"

6шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

6шт.

23

D27691

X

CUSHION - seat

1шт.

24

D27690

CUSHION - seat back

1шт.

25

D27693

ARMREST

CUSHION - arm rest

2шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

28

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber

1шт.

29

10890

KIT

LIGHT - tail, 6 volt

1шт.

30

D21322

UNIT - sealed beam, 6 volt

1шт.

29

39056

LIGHT - tail, 12 volt

1шт.

30

D21323

UNIT - sealed beam, 12 volt

1шт.
