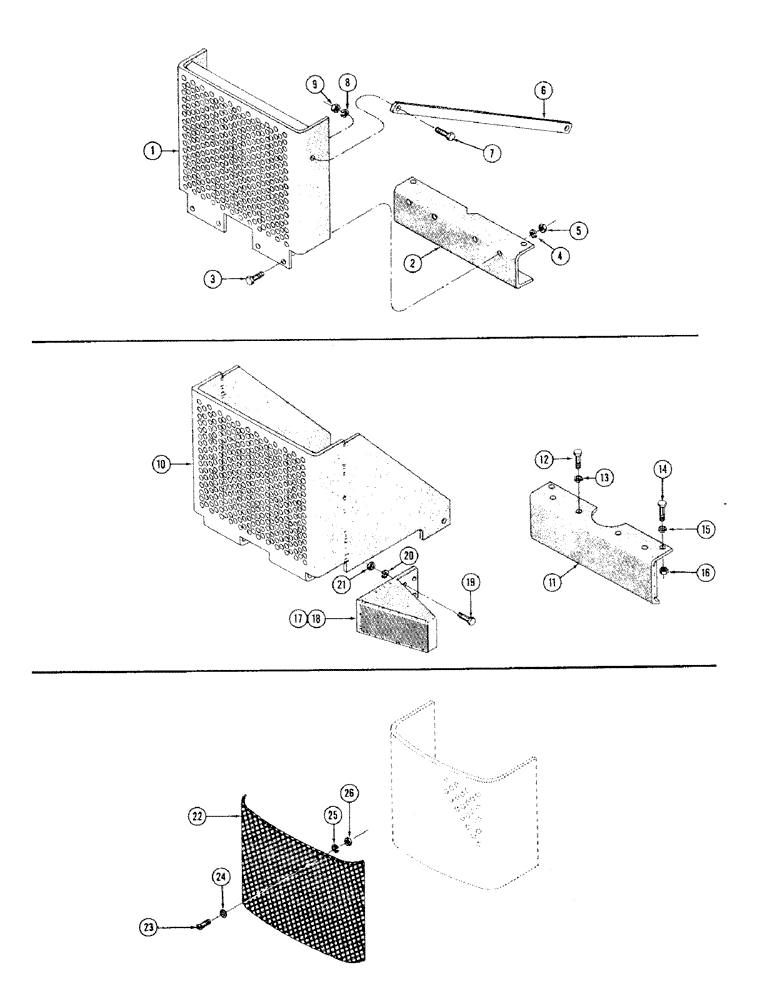

Запчасти Case 310 (042) - BRUSH GUARDS AND GRILLE SCREEN (05) - UPPERSTRUCTURE CHASSIS

1

30988

GUARD - brush, radiator

1шт.

2

31769

SPACER

BUMPER

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/4"

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

6

30995

BRACE - brush guard

2шт.

7

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/4"

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

10

37790

GUARD - brush, radiator

1шт.

11

37786

HOSE

BUMPER

1шт.

12

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

17

37796

SEAL

EXTENSION - bumper, L.H.

1шт.

18

37797

LINE

EXTENSION - bumper, R.H.

1шт.

19

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

12шт.

20

92-8

LOCK WASHER,1/2"

12шт.

21

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

12шт.

22

D11170

SCREEN - grille (Machinery item)

1шт.

23

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- machine, round head (1/4" - 20 NC x 1/2")

8шт.

24

95-4

WASHER,1/4"

- standard wrot (5/16" I.D. x 3/4" O.D. x 1/16" thick)

8шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

26

25-104

NUT,1/4"-20, G5

8шт.
