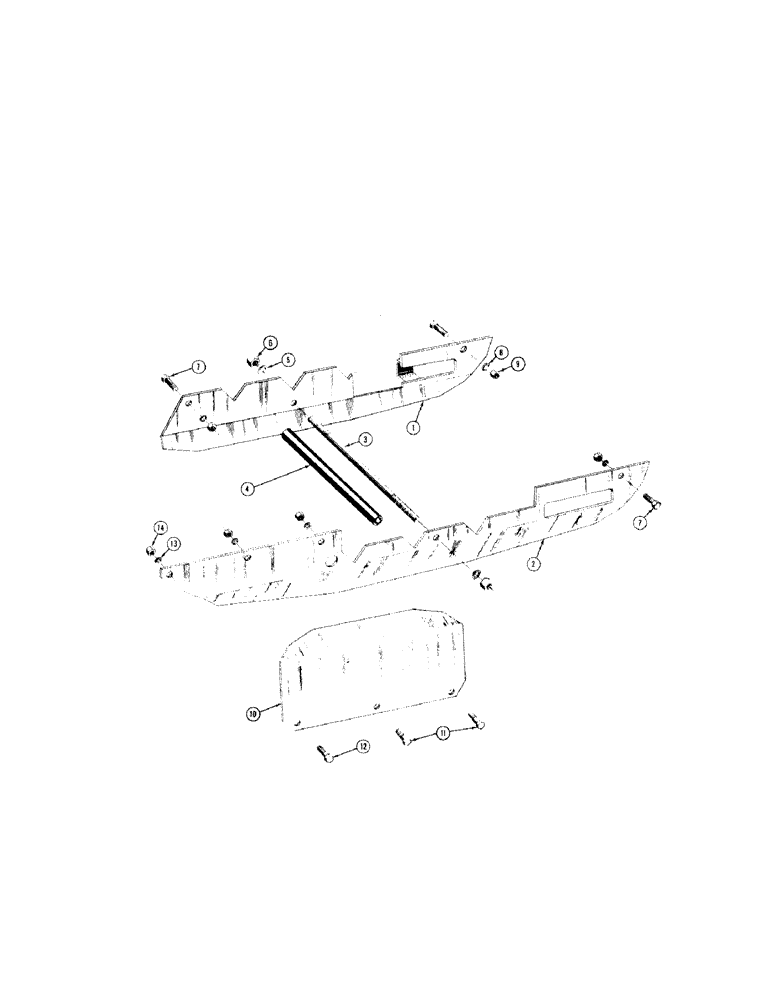

Запчасти Case 310 (082[1]) - ROCK GUARD (OPTIONAL EQUIPMENT) (04) - UNDERCARRIAGE

1

32266

ROCK GUARD - inner, R.H.

1шт.

32267

ROCK GUARD - inner, L.H.

1шт.

2

32264

ROCK GUARD - outer, R.H.

1шт.

32265

ROCK GUARD - outer, L.H.

1шт.

3

32271

STUD - 1/2" - 20 NF x 11-3/4"

2шт.

4

38501

SPACER - pipe

2шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

7

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

6шт.

8

92-8

LOCK WASHER,1/2"

6шт.

9

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

6шт.

10

32296

PLATE - sprocket guard

2шт.

11

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

4шт.

12

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 20 NF x 1-3/4"

2шт.

13

92-8

LOCK WASHER,1/2"

6шт.

14

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

6шт.
