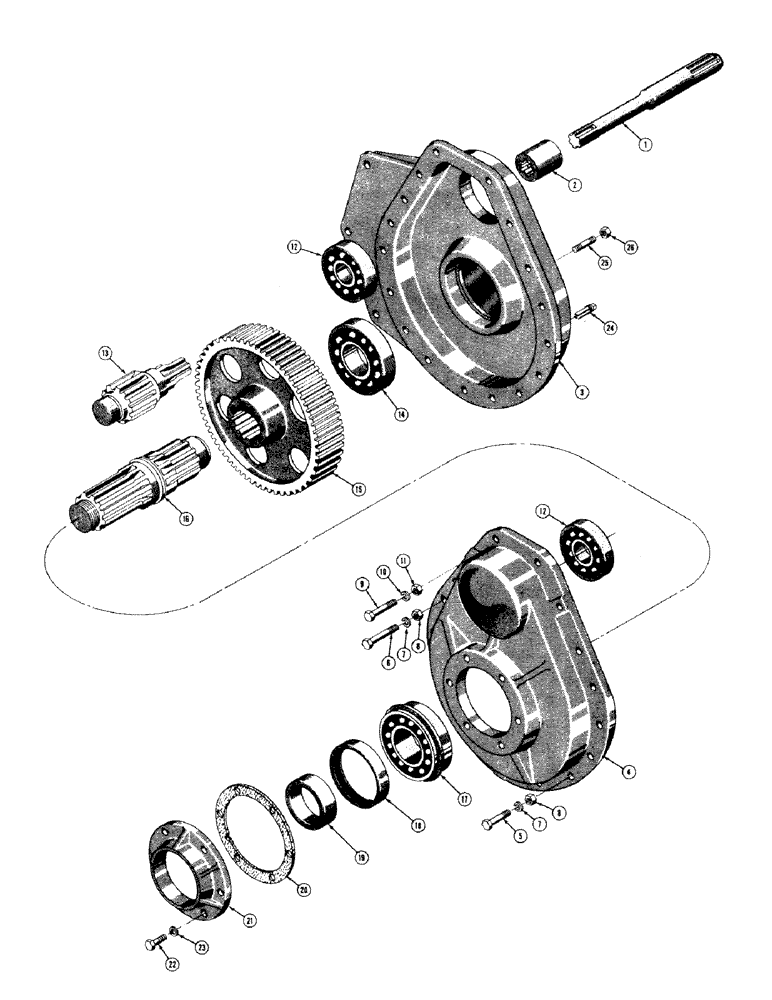

Артикул
Название
Примечание
Количество
1
51200025
SHAFT
- axle, front drive (48" gauge tractor) 13-3/16" long (Original equipment) Has 6 splines on coupling end (See D12151)
2шт.
1
D31519
SHAFT
- axle, final drive (48" gauge tractor) 13-1/4" long (Replacement) Has 10" splines on coupling end (See 11845)
2шт.
Part of Kit P/N D12151
1шт.
1
32635
SHAFT - axle, final drive (36" gauge tractor) 7-9/32" long
2шт.
1
11830-420
SHAFT - axle, final drive (42" gauge tractor) 10-3/32" long
2шт.
1
11830-600
SHAFT - axle, final drive (60" gauge tractor) 19-3/16" long
2шт.
1
11830-720
SHAFT - axle, final drive (72" gauge tractor) 25-3/16" long
2шт.
1
51200026
COUPLING
- final drive (42" gauge and wider tractors) Original equipment (Has 6 splines) See D12151
2шт.
2
D31516
X
COUPLING - final drive (48" gauge tractors only) Replacement (Has 10 splines) See 11831 (Use D32730)
2шт.
Part of Kit P/N D12151
1шт.
O8897AB
X
SNAP RING - D31516 coupling only (Not shown)
2шт.
Part of Kit P/N D12151
1шт.
2
D32730
COUPLING
- final drive (48" gauge tractors only) Replacement (Has 10 splines) See 11831, D31516, and O8897AB
2шт.
Part of Kit P/N D12151
1шт.
D32722
RING, SNAP
SNAP RING - axle shaft retaining (Not shown)
1шт.
2
32634
COUPLING
- final drive (36" gauge tractor)
2шт.
3
11817
RIVET
HOUING - final drive, L.H. inner (Original equipment) When stock is exhausted, use 1- D29737, 1 - 14-1240, 2 - D29721, and 3 - 131-395
1шт.
3
D29737
HOUSING - final drive, L.H. inner (Replacement) See 11817
1шт.
3
11816
RIVET
HOUSING - final drive, R.H. inner (Original equipment) When stock is exhausted, use 1 - D29736, 1 - 14-1240, 2 - D29721, and 3 - 131-395
1шт.
3
D29736
HOUSING - final drive, R.H. inner (Replacment) See 118216
1шт.
4
11823
X
HOUSING - final drive, outer (Use D24658)
2шт.
Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order Ref. 5 - 11 listed under D24658.
1шт.
5
14-726
HHCS - 7/16" - 20 NF x 1-5/8" Hex, 7/16"-20 x 1 5/8", G5
24шт.
6
14-740
BOLT,Hex, 7/16" - 20 x 2-1/2"
HHCS - 7/16" - 20 NF x 2-1/2"
10шт.
7
92-7
LOCK WASHER,7/16"
34шт.
8
25-117
NUT,7/16"-20, G5
- hex. (7/16" - 20 NF)
34шт.
4
D24658
HOUSING
- final drive, outer
2шт.
Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order Ref. 5 - 11 listed under D24658.
1шт.
5
13-724
BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5
Hex, 7/16"-14 x 1 1/2, G5
18шт.
6
13-736
BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5
10шт.
7
92-7
LOCK WASHER,7/16"
28шт.
8
25-107
NUT,7/16"-14, G5
- hex. (7/16" - 14 NC)
28шт.
9
D24688
BOLT
BOLT - body fit (1/2" - 13 NC x 2-1/8")
6шт.
10
92-8
LOCK WASHER,1/2"
6шт.
11
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
6шт.
12
40002
BALL BEARING
- ball, final drive pinion
4шт.
13
51200027
SHAFT
PINION - final drive (Original equipment) Has 6 splines on coupling end (See D12151)
2шт.
13
D31514
SHAFT
PINION - final drive (48" gauge tractor only) Replacement (Has 10 splines on coupling end) See 11832
2шт.
Part of Kit P/N D12151
1шт.
14
40003
BEARING
- ball, final driveshaft (Inner)
2шт.
15
CAS11833
GEAR WHEEL
GEAR - final drive
2шт.
16
CAS11853
SHAFT
- final drive
2шт.
17
D14979
BEARING
BEARING - ball, final driveshaft (Outer)
2шт.
18
NLS
NO LONGER SERVICED
SEAL - oil, final driveshaft (When stock is exhausted, use D29517)
2шт.
18
D29517
SEAL
- oil, final driveshaft (See 40610)
2шт.
19
51200024
SPACER
- final driveshaft
2шт.
20
CAS11828
GASKET
- seal retainer
2шт.
21
11827
RETAINER
- seal, driveshaft
2шт.
22
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
12шт.
23
92-6
LOCK WASHER,3/8"
12шт.
24
D21396
PLUG, DRAIN
PLUG - pipe, magnetic (1/2" NPT countersunk head)
4шт.
25
R29874
STUD
- mounting, final drive (42" gauge and wider tractors)
16шт.
46509
STUD - mounting, final drive (36" gauge tractors only)
16шт.
26
231-46110
LOCK NUT,5/8"-18, GB
NUT - lock (5/8" - 18 NF) 48" gauge and wider tractors
16шт.
D12151
CENTER AXLE
KIT - axle shaft (May be used to convert 48" gauge tractors to use 10 spline axle shaft, coupling, and pinion)
2шт.
Includes: P/N's D31519, D31516, 08897AB, D32730 and D31514
1шт.
1
D31519
SHAFT
- axle, final drive (48" gauge tractor) 13-1/4" long
1шт.
2
D31516
X
COUPLING - final drive (48" gauge tractor) Use D32730 coupling assembly
1шт.
O8897AB
X
SNAP RING - D31516 coupling only (Not shown)
1шт.
12
D32730
COUPLING
- final drive (48" gauge tractor)
1шт.
D32722
RING, SNAP
SNAP RING - D32730 coupling assembly only (Not shown)
1шт.
D32723
SPACER
- coupling (48" gauge tractor) Not shown
1шт.
13
D31514
SHAFT
PINION - final drive (48" gauge tractor)
1шт.
Выбрано товаров: 64
