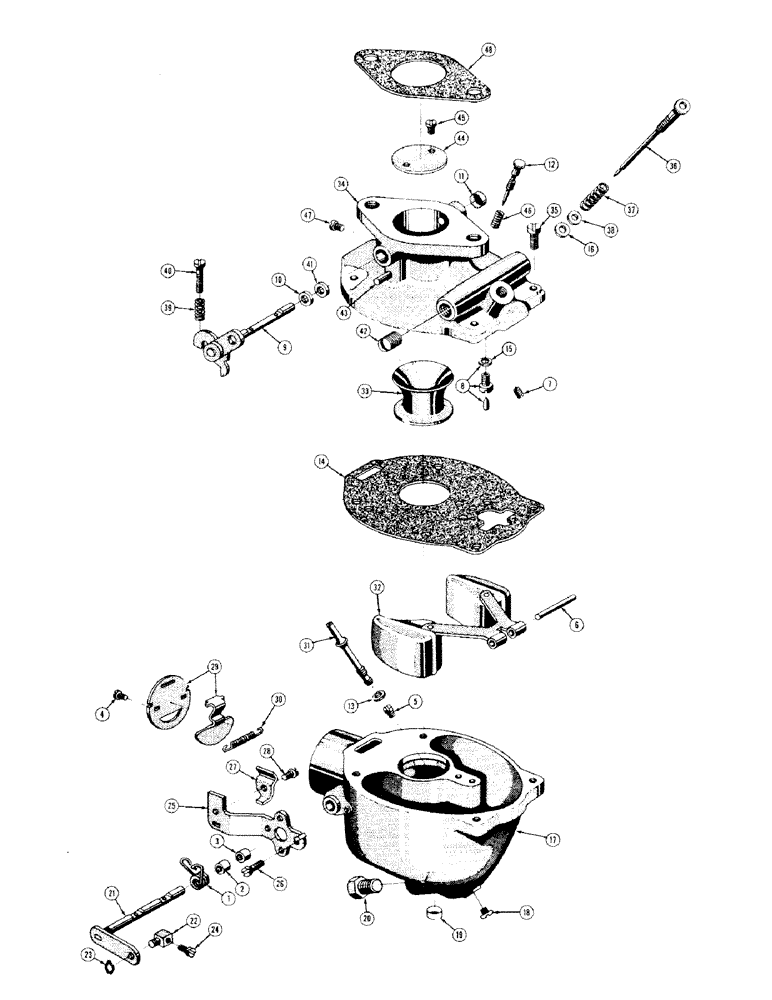

Запчасти Case 310 (022) - MARVEL-SCHEBLER CARBURETOR (02) - FUEL SYSTEM

G11160

CARBURETOR - Marvel-Schebler #TSX-710 (Use G45779)

1шт.

The carburetor is identified by the model number TSX-710 on the throttle body. If the model number TSX-804 appears on the throttle body, refer to the section on G45779 carburetor, Figure 24.

1шт.

B51929

CARBURETOR

KIT - repair, carburetor

1шт.

1

B51741

SPRING - choke return

1шт.

2

B51854

RETAINER

- choke shaft packing

1шт.

3

B51803

PACKING

- choke shaft

1шт.

4

B51685

SCREW

- choke fly (#4 - 40 NC x 1/4")

2шт.

5

B51839

JET

- power

1шт.

6

B51775

SHAFT - float lever

1шт.

7

B51828

JET

- idle

1шт.

8

VTA698

X

FLOAT VALVE ASSEMBLY - matched parts

1шт.

9

B51655

THROTTLE

SHAFT - throttle shaft packing

1шт.

11

B51852

CUP

- throttle shaft

1шт.

12

B51788

NEEDLE

- idle adjusting

1шт.

VTA690

X

KIT - gasket, carburetor

1шт.

13

B51720

GASKET

- main nozzle

1шт.

14

B51708

GASKET

- throttle, Serial Range: body-bowl

1шт.

15

B51703

GASKET

- float valve seat

1шт.

16

B51723

GASKET

- high speed needle

1шт.

17

B51648

BODY - carburetor

1шт.

18

B51700

SCREW

- slotted headless, hole plug (#8 - 32 NC)

1шт.

19

B51883

STRAINER - gasoline

1шт.

20

B51887

PLUG

- bowl drain

1шт.

21

B51751

SHAFT

- choke

1шт.

22

B51764

PIVOT

SWIVEL - choke

1шт.

23

B51877

SPLIT PIN

PIN - cotter, choke swivel

1шт.

24

B51698

SCREW,0.164" - 32 x 5/16"

- slotted hex. head, choke swivel (#8 - 32 NC x 5/16")

1шт.

25

B53956

BRACKET - choke

1шт.

26

B51686

SCREW - choke bracket

1шт.

27

B51765

CLIP

- choke bracket

1шт.

28

B51687

SCREW - fillister head, choke bracket clip (#8 - 32 NC x 5/16")

1шт.

29

B51763

VALVE

FLY - choke

1шт.

30

B51735

SPRING

- choke fly flapper

1шт.

31

B51826

NOZZLE INJECTION

NOZZLE - main

1шт.

32

B51772

FLOAT

AND LEVER - carburetor

1шт.

33

B51815

VENTURI

1шт.

34

B51906

BODY - throttle

1шт.

35

B51683

SCREW,#12 - 24 x 5/8"

- fillister head, throttle body to bowl (#12 - 24 NC x 5/8")

4шт.

36

B51797

NEEDLE BEARING CAGE

NEEDLE - high speed

1шт.

37

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

38

B51870

WASHER

- plain, high speed needle

1шт.

39

B51742

SPRING

- throttle stop screw

1шт.

40

B51680

SCREW - fillister head, throttle stop (#8 - 32 NC x 3/4")

1шт.

41

B51805

PACKING

- throttle shaft

1шт.

42

B53961

X

PLUG - throttle body

1шт.

43

B51862

PIN - throttle stop

1шт.

44

B51669

FLY - throttle

1шт.

45

B51685

SCREW

- throttle fly

1шт.

46

B51744

SPRING

- idle adjusting

1шт.

47

B51874

PLUG - idle drilling

1шт.

48

O562AB

X

GASKET -, Serial Range: carburetor-manifold

1шт.
