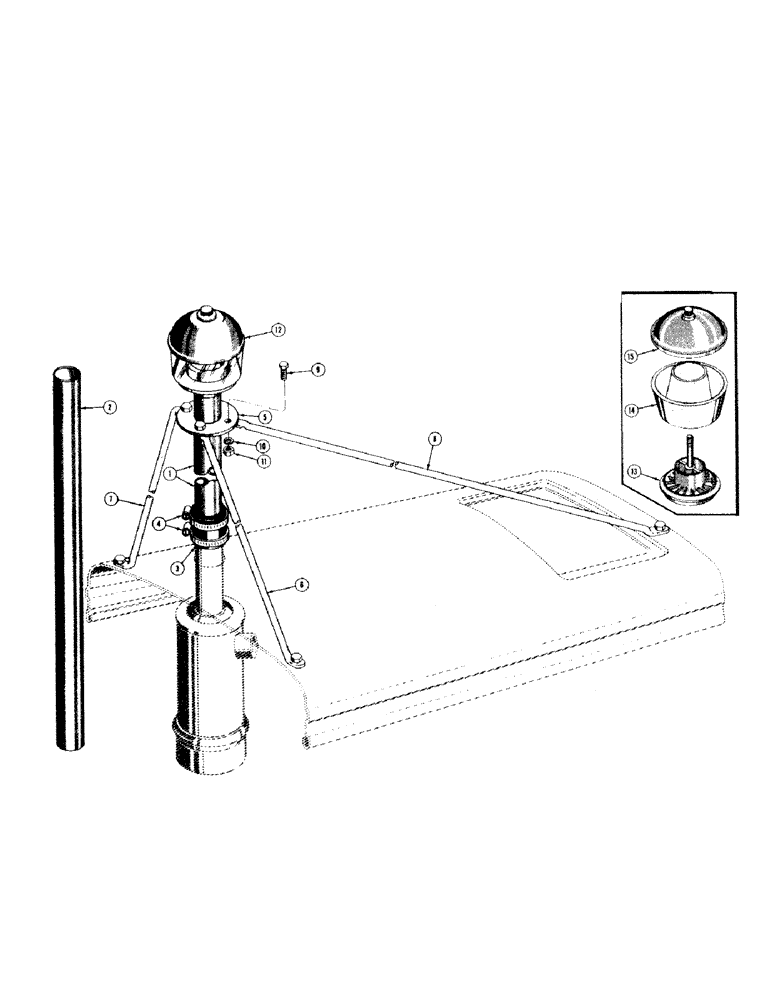

Запчасти Case 310 (044[1]) - AIR CLEANER STACK EXTENSIONS (01) - ENGINE

1

D20617

PIPE - extension, air cleaner stack (24")

1шт.

D10218

KIT - stack extension, air cleaner (48")

1шт.

2

D20616

PIPE - extension, air cleaner stack (48")

1шт.

3

31168

HOSE - air cleaner to extension pipe (1-3/4" I.D. x 2-1/8" O.D. x 2-1/2")

1шт.

4

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

5

D20618

RING - support, extension pipe

1шт.

6

D20620

BRACE - extension pipe, L.H. front

1шт.

7

D20621

BRACE - extension pipe, R.H. front

1шт.

8

D20619

BRACE - extension pipe, rear

1шт.

9

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4" - 28 NF x 3/4"

3шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

11

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

3шт.

12

D20605

PRECLEANER

PRE-CLEANER - air (Optional)

1шт.

13

D30678

SLEEVE

- pre-cleaner

1шт.

14

D30675

BODY

- pre-cleaner

1шт.

15

D30676

COVER

- pre-cleaner

1шт.
