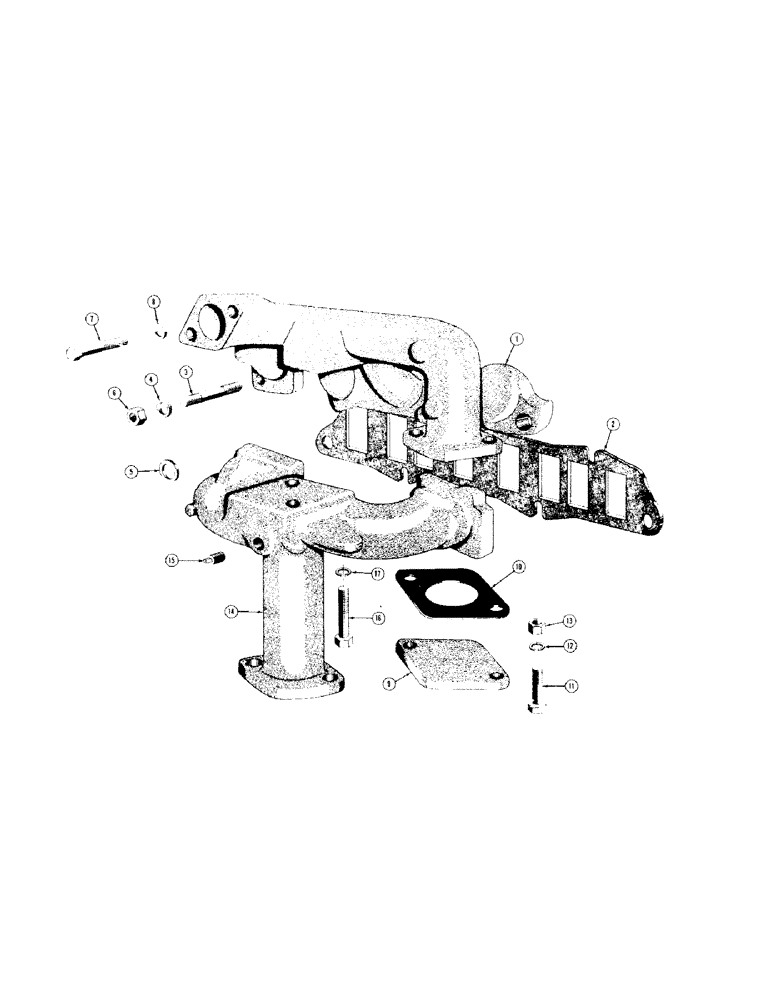

Запчасти Case 310 (020) - MANIFOLD, WATER PUMP, FAN, FAN BELT, AND PULLEY (01) - ENGINE

1

G1064

MANIFOLD

MANIFOLD - exhaust

1шт.

2

VT3394

X

GASKET - manifold, intake and exhaust

1шт.

3

VT4510

X

STUD - manifold to cylinder head (3/8" x 1-3/4")

7шт.

4

V20214

WASHER

WASHER - plain, manifold stud (13/32" I.D. x 3/4" O.D. x 1/16" thick)

3шт.

5

VT4504

WASHER

WASHER - plain, manifold stud (13/32" I.D. x 7/8" O.D. x 1/8" thick)

4шт.

6

VT3362

X

NUT - hex., brass (3/8" - 16 NC)

5шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC) Not shown

2шт.

9

G1067

SPARE PART COVER - exhaust manifold opening

2шт.

10

G11201

GASKET

GASKET - exhaust manifold opening cover

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

13

VT3362

X

NUT - hex., brass (3/8" - 16 NC)

2шт.

14

G11149

MANIFOLD

MANIFOLD - intake

1шт.

15

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe (1/4" NPT square head)

1шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT - 3/8" - 16 NC x 2"

2шт.

17

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

G11956

WATER PUMP

PUMP - water, complete

1шт.

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.
