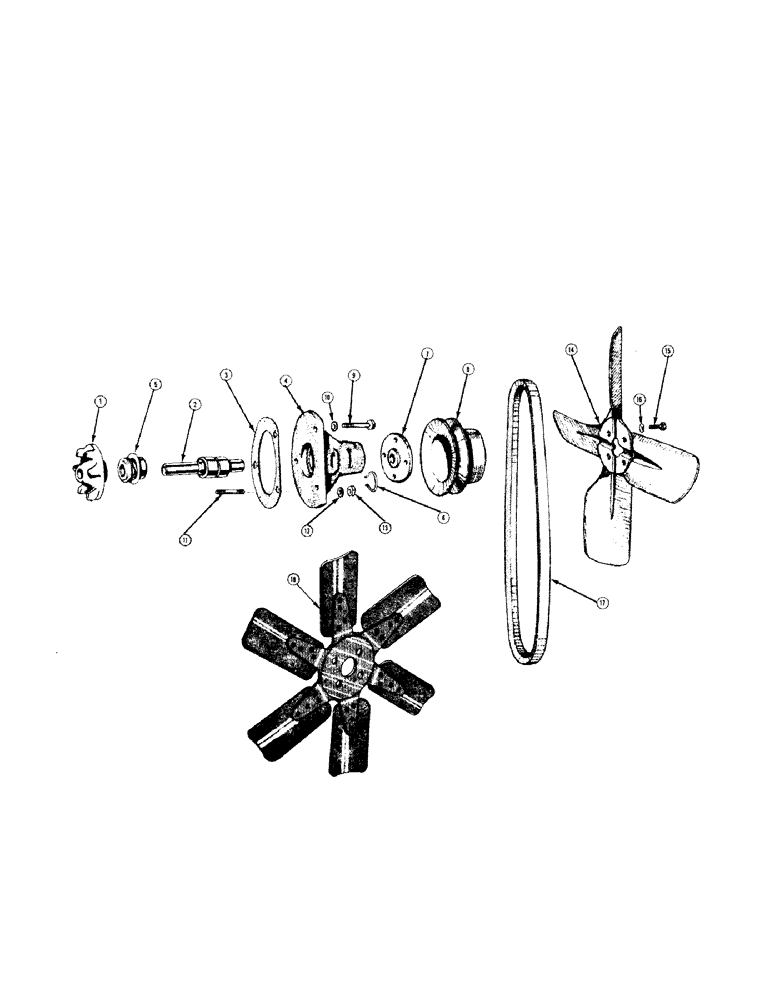

Запчасти Case 310 (020[1]) - WATER PUMP, FAN, FAN BELT, AND PULLEY (01) - ENGINE

1

VT342

IMPELLER - water pump (Use G11956)

1шт.

2

VTA904

X

SHAFT - drive (Includes bearings and slinger) Use G11956

1шт.

3

G46875

GASKET

- pump, Serial Range: body-head

1шт.

4

VTA905

X

BODY - water pump (Use G11956)

1шт.

5

O9799AB

SEAL - driveshaft (Use G11956)

1шт.

6

VT4594

X

RING - retaining

1шт.

7

VT4533

HUB - fan (Use G11956)

1шт.

8

VT4549

X

PULLEY - water pump

1шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

1шт.

10

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

11

VT4512

X

STUD - mounting, water pump (Use 13-612)

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

13

VT4505

NUT - mounting stud

2шт.

14

G45244

FAN

- suction

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

16

92-5

LOCK WASHER,5/16"

4шт.

17

G46222

BELT,0.88" W

Fan and Generator Drive 0.88" W

1шт.

18

11290

FAN

- pusher, optional

1шт.
