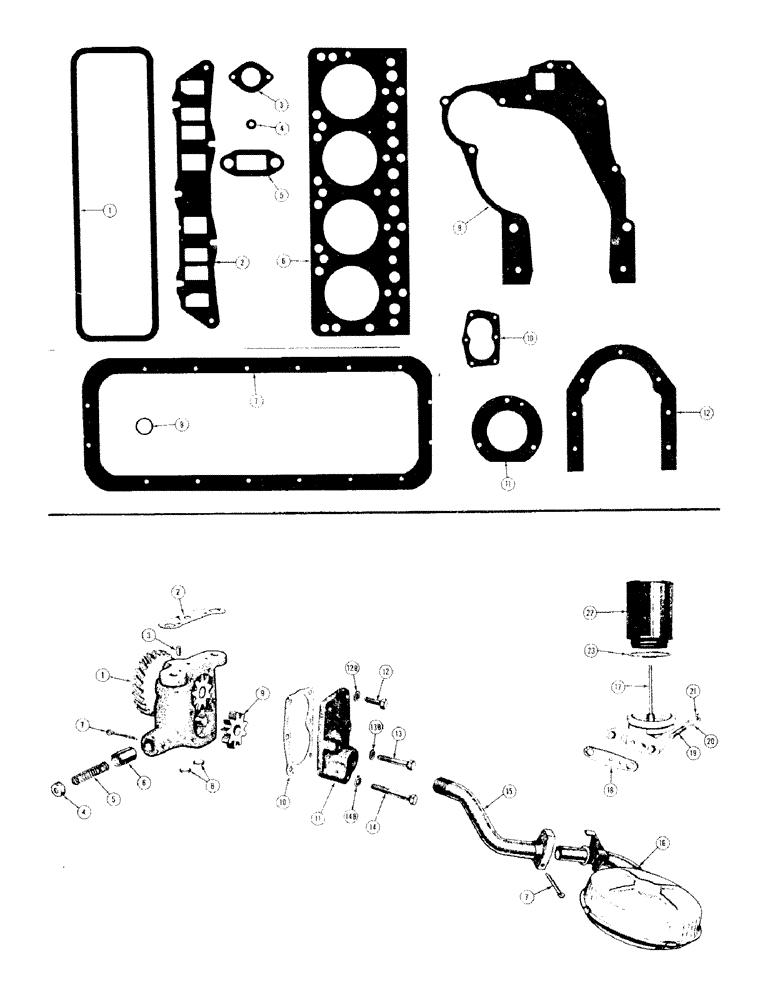

Запчасти Case 310 (018[2]) - ENGINE OIL FILTER (01) - ENGINE

G11009

GASKET

SET - gasket, valve grind

1шт.

1

A30489

BODY

GASKET - valve cover

1шт.

2

VT3394

X

GASKET - exhaust manifold

1шт.

3

O562AB

X

GASKET -, Serial Range: carburetor-manifold

1шт.

4

VT3379

X

GASKET - valve stem

4шт.

5

VT3228

X

GASKET - water outlet elbow

1шт.

6

G10672

CYLINDER HEAD GASKET

- cylinder head

1шт.

G11010

X

SET - gasket, oil pan (Use A35295)

1шт.

7

G10020

X

GASKET - oil pan

1шт.

8

VT4520

X

GASKET - oil pan drain plug

1шт.

A35295

GASKET

SET - gasket, oil pan

1шт.

7

A35271

OIL PAN GASKET SET

- oil pan

1шт.

8

VT4520

X

GASKET - oil pan drain plug

1шт.

G11011

GASKET

SET - gasket, engine crankcase

1шт.

9

VT3248

X

GASKET - timing gear cover

1шт.

10

VT3247

X

GASKET - oil pump body cover

1шт.

11

VT4527

X

GASKET - water pump body to engine head

1шт.

12

G10007

GASKET

- rear oil seal retainer

1шт.

1

VTA3408

X

BODY, DRIVESHAFT, AND SHIMS - oil pump

1шт.

2

VT3328

X

SHIM - pump body to main bearing cap (.002" thick)

2шт.

VT4590

X

SHIM - pump body to main bearing cap (.005" thick)

1шт.

3

VT3355

PIN - dowel, front main bearing cap

2шт.

4

VT3221

X

RETAINER - relief valve spring

1шт.

5

VT3354

X

SPRING - oil pressure relief

1шт.

6

VT3298

X

VALVE - relief, oil pressure

1шт.

7

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

8

VT3356

PLUG - expansion (1/2" dia.)

2шт.

9

VT3255

X

GEAR - driven, oil pump (9T) Order A49100

1шт.

10

VT3247

X

GASKET - oil pump body cover

1шт.

11

A28792

COVER

- oil pump body ( replaced VT142 )

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

12b

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

13b

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

14b

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

VTA332

PIPE - suction

1шт.

16

G45060

FLOAT

- oil pump intake (Includes screen)

1шт.

17

VT4147

HOUSING

- oil filter (Includes inlet tube)

1шт.

18

VT3229

X

GASKET - filter housing to engine block

2шт.

19

VT3675

X

STUD - filter housing to engine block

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

2шт.

22

VT3589

X

ELEMENT - replacement, oil filter

1шт.

23

VT4495

X

SEAL - rubber

1шт.
