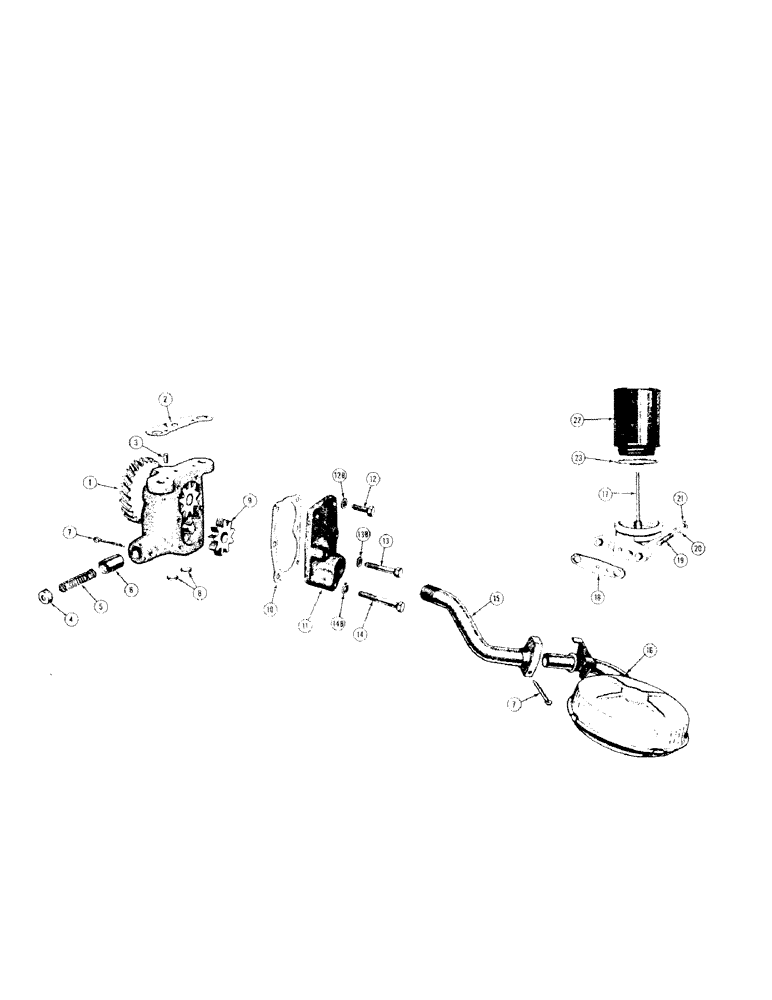

Запчасти Case 310 (018[1]) - OIL PUMP AND OIL FILTER (01) - ENGINE

1

VTA3408

X

BODY, DRIVESHAFT, AND SHIMS - oil pump

1шт.

2

VT3328

X

SHIM - pump body to main bearing cap (.002" thick)

2шт.

VT4590

X

SHIM - pump body to main bearing cap (.005" thick)

1шт.

3

VT3355

PIN - dowel, front main bearing cap

2шт.

4

VT3221

X

RETAINER - relief valve spring

1шт.

5

VT3354

X

SPRING - oil pressure relief

1шт.

6

VT3298

X

VALVE - relief, oil pressure

1шт.

7

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

8

VT3356

PLUG - expansion (1/2" dia.)

2шт.

9

VT3255

X

GEAR - driven, oil pump (9T) Order A49100

1шт.

10

VT3247

X

GASKET - oil pump body cover

1шт.

11

A28792

COVER

- oil pump body ( replaced VT142 )

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

12b

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

13b

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

14b

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

VTA332

PIPE - suction

1шт.

16

G45060

FLOAT

- oil pump intake (Includes screen)

1шт.

17

VT4147

HOUSING

- oil filter (Includes inlet tube)

1шт.

18

VT3229

X

GASKET - filter housing to engine block

2шт.

19

VT3675

X

STUD - filter housing to engine block

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

2шт.

22

VT3589

X

ELEMENT - replacement, oil filter

1шт.

23

VT4495

X

SEAL - rubber

1шт.
