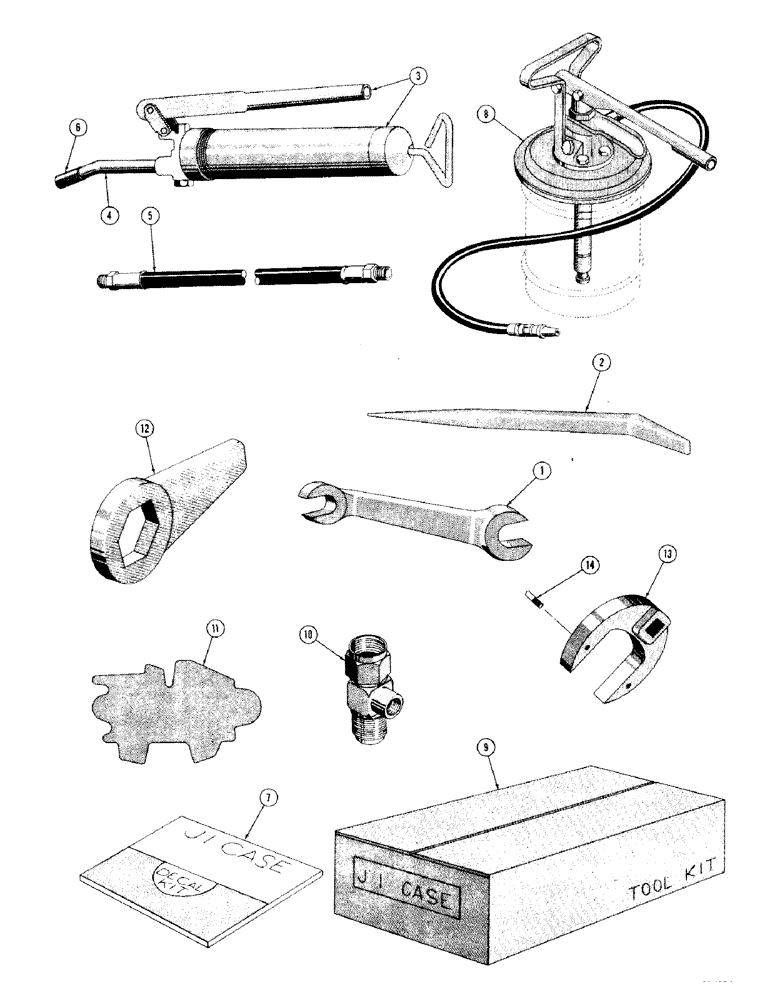

Запчасти Case 310 (092) - TOOLS, GREASE GUN, AND DECALS (18) - ATTACHMENT ACCESSORIES

1

D26335

OPEN END WRENCH

WRENCH - end, track adjusting

1шт.

2

NLS

NO LONGER SERVICED

BAR - pinch

1шт.

3

D28955

BARREL AND LEVER - grease gun, hand type (15 ounce)

1шт.

4

D28956

CABLE EXTENSION

EXTENSION - nozzle

1шт.

5

D28957

HOSE

- flex

1шт.

6

D28958

COUPLING, QUICK, FEM

COUPLER - hydraulic

1шт.

7

D28928

KIT

- decal, 310 crawler (Basic tractor)

1шт.

7

D28927

KIT - decal, 310 crawler (Allied equipment)

1шт.

8

5889

HOSE

GUN - grease, bucket type

1шт.

9

73200

1шт.

KIT - tool, crawler service (Includes 1 - 6" slip joint plier, 1 - 5/16" x 4" screw driver, 1 - 5/16" x 6" screw driver. 1 - 1/2" ball peen hammer, 1 - set of 7 double open end wrenches (3/8" to 1 - 1/8"), 1 - 12" adjustable wrench, 1 - taper punch, 1 - 1/2" cut chisel, 1 - 18" jimmy bar, 1 - set of 5 Allen style wrenches (3/8" to 1"), 1 - socket drive adapter (3/8" female x 1/2" male), 1 - 8-1/4" T-flex, handle (3/8" drive), 1 - 17" sliding T-handle (3/4" drive), 1 - set of 12 point 3/4" drive sockets (1-1

1шт.

10

D26337

3 WAY CONNECTION

TEE - pressure test (Has 5/8" JIC male fitting on one end, 5/8" JIC female swivel fitting on opposite end, and 1/4" NPT female port on the side for hydraulic pressure gauge installation)

1шт.

11

R15812

TOOL

GAUGE - wear, track components

1шт.

12

NLS

NO LONGER SERVICED

WRENCH - slugging, drive sprocket nut

1шт.

C105

V-BELT

SET - spanner wrench (For removing and installing packing gland in threaded gland type hydraulic cylinders)

1шт.

13

D30102

WRENCH - spanner, for 2-1/2" I.D. cylinders with 1-1/4" or 1-1/2" piston rods (Includes ref. #14)

1шт.

13

D30103

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" piston rod (Includes ref. #14)

1шт.

13

D30104

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" piston rod (Includes ref. #14)

1шт.

13

D30105

WRENCH - spanner, for 3-1/2" I.D. cylinder with 1-3/4" or 2" piston rods (Includes ref. #14)

1шт.

13

D30106

WRENCH - spanner, for 4" I.D. cylinders with 2" piston rod

1шт.

14

D30107

PIN

- spanner wrench

2шт.
