Запчасти Case 455C (6-44) - TRANS. FORWARD AND REVERSE CLUTCH ASSEMBLIES, MODELS WITH WET BRAKES, P.I.N. GBE 0001501 AND AFTER (06) - POWER TRAIN

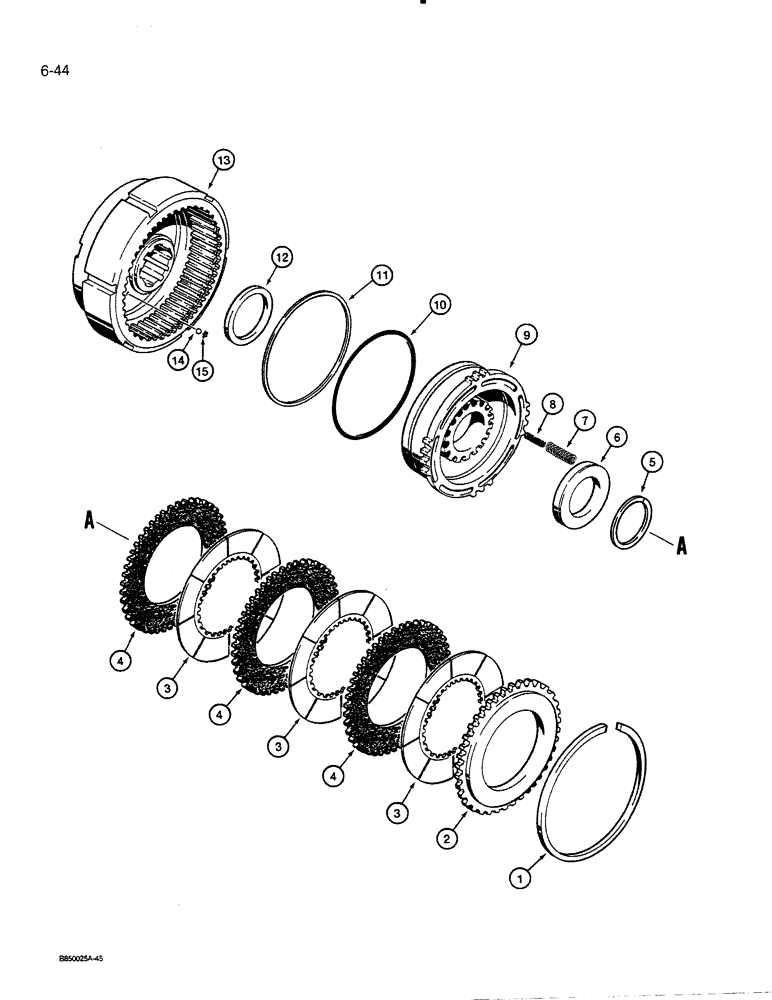

Схема запчастей Case 455C - (6-44) - TRANS. FORWARD AND REVERSE CLUTCH ASSEMBLIES, MODELS WITH WET BRAKES, P.I.N. GBE 0001501 AND AFTER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G106701

CLUTCH ASSEMBLY

- forward and reverse, Includes: Ref. 1 - 15

2шт.

1

30785

RING

SNAP RING - disc retaining

1шт.

2

G103391

PLATE

- clutch backing

1шт.

3

G102354

PLATE

FRICTION DISC - internal teeth

3шт.

4

G101711

PLATE

DISC - steel, external teeth

3шт.

5

A27233

RING

SNAP RING - spring retainer

1шт.

6

R11016

RETAINER

- clutch springs

1шт.

7

A51825

SPRING

- clutch, outer

18шт.

8

A51826

SPRING

- clutch, inner

18шт.

9

G106697

PISTON

- clutch, aluminum

1шт.

10

G103487

O-RING,6.487" ID

- piston

1шт.

11

G103486

SEALING RING

SEAL - piston

1шт.

12

A50415

SEAL

- drum

1шт.

13

G106731

DRUM

- clutch

1шт.

14

211-207

BALL

- 9/32", grade 25, chrome alloy steel

1шт.

15

A153400

SNAP RING,0.312", Int, #31

ball 0.312", Int, #31

1шт.

Выбрано товаров: 16
