Запчасти Case 455C (6-42) - TRANS. FWD. & REV. CLUTCH ASSYS., MODELS W/ DRY BRAKES AND MODELS W/ WET BRAKES THRU P.I.N. 3080911 (06) - POWER TRAIN

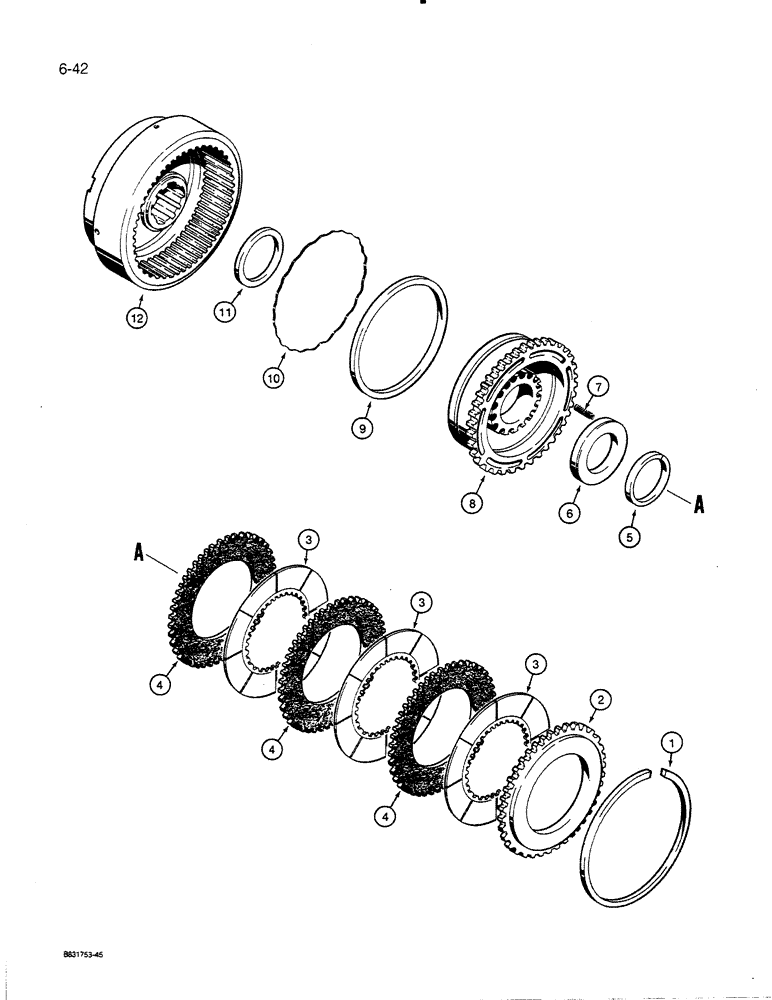

Схема запчастей Case 455C - (6-42) - TRANS. FWD. & REV. CLUTCH ASSYS., MODELS W/ DRY BRAKES AND MODELS W/ WET BRAKES THRU P.I.N. 3080911 (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G102376

CLUTCH

ASSEMBLY - forward and reverse, Includes: Ref. 1 - 12

2шт.

1

30785

RING

SNAP RING - clutch backing plate

1шт.

2

G103391

PLATE

- clutch backing

1шт.

3

G102354

PLATE

FRICTION DISC - internal teeth

3шт.

4

G101711

PLATE

DISC - steel, external teeth

3шт.

5

A27233

RING

SNAP RING - spring retainer

1шт.

6

R11016

RETAINER

- clutch spring

1шт.

7

A51825

SPRING

- clutch

18шт.

8

A50571

PISTON

- clutch, aluminum

1шт.

9

A50414

SEALING RING

RING - sealing, piston

1шт.

10

G102095

SPRING

- wave

1шт.

11

A50415

SEAL

- drum

1шт.

12

A50290

DRUM

- clutch

1шт.

Выбрано товаров: 13
