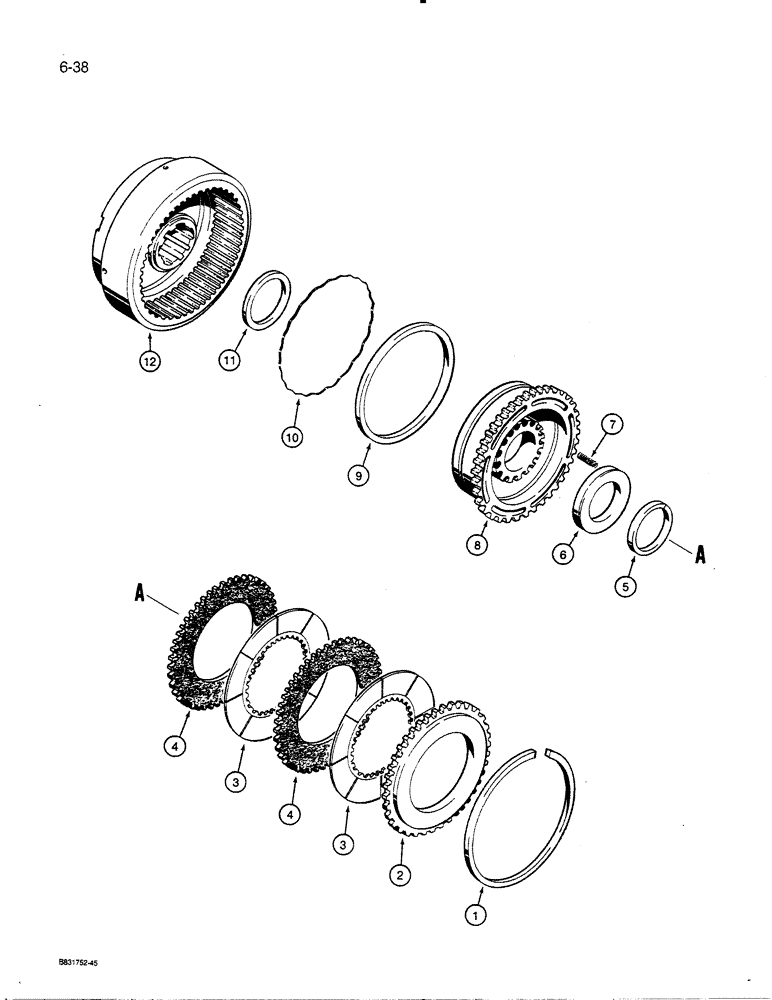

Запчасти Case 455C (6-38) - TRANS. HIGH & LOW SPEED CLUTCH ASSYS., MDLS. W/ DRY BRAKES & MDLS. W/ WET BRAKES THRU P.I.N. 3080911 (06) - POWER TRAIN

G102375

CLUTCH

ASSEMBLY - high and low speed, Includes: Ref. 1 - 12

4шт.

1

30785

RING

SNAP RING - clutch backing plate

1шт.

2

G103391

PLATE

- clutch backing, external teeth

1шт.

3

G102354

PLATE

FRICTION DISC - internal teeth

2шт.

4

G101711

PLATE

DISC - steel, external teeth

2шт.

5

A27233

RING

SNAP RING - spring retainer

1шт.

6

R11016

RETAINER

- clutch spring

1шт.

7

A51825

SPRING

- clutch

18шт.

8

A50571

PISTON

- clutch, aluminum

1шт.

9

A50414

SEALING RING

RING - sealing, piston

1шт.

10

G102095

SPRING

- wave

1шт.

11

A50415

SEAL

- drum

1шт.

12

A50288

DRUM

- clutch

1шт.
