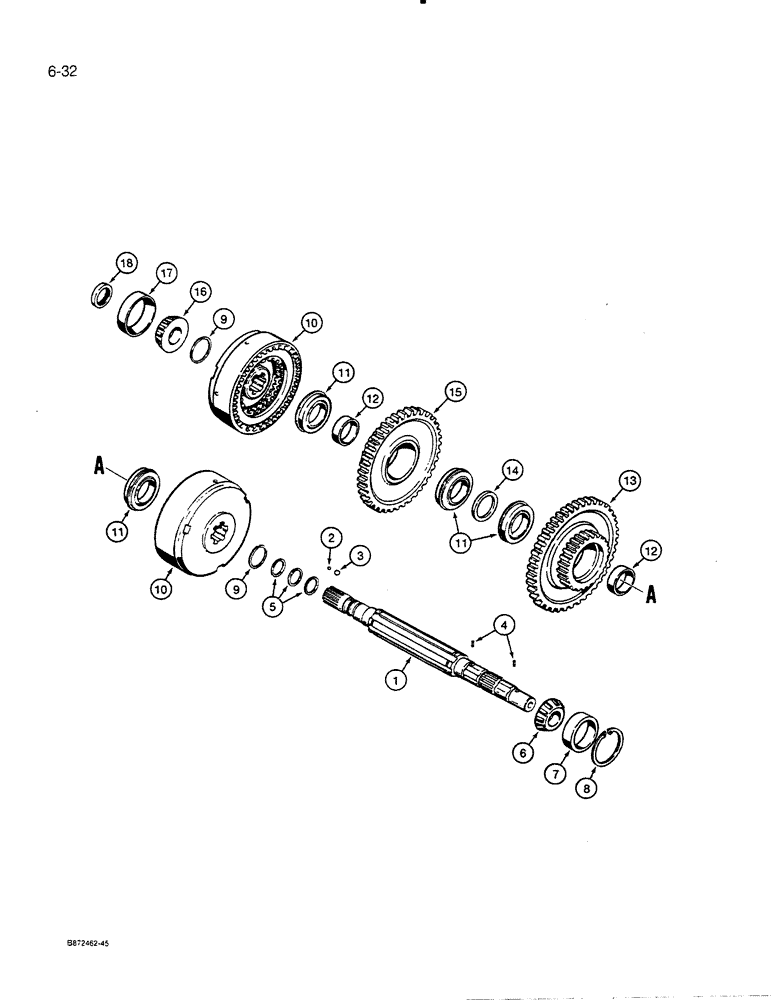

Запчасти Case 455C (6-32) - TRANS. MAIN SHAFT & FWD.-REV. CLUTCHES, MDLS. W/DRY BRAKES & MDLS. W/WET BRAKES THRU P.I.N. 3080911 (06) - POWER TRAIN

1

A54108

SHAFT

- main, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

BALL - steel, 1/4" diameter

1шт.

3

NSS

NOT SOLD SEPARAT

BALL - steel, 3/8" diameter

1шт.

4

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, , Range gear 5/32" x 7/16", Slotted

2шт.

5

A51841

RING

- seal, main shaft, rear

3шт.

Part of Seal Kit, P/N G102662

1шт.

6

567848R1

ROLLER BEARING,41.27mm ID x 16.19mm W

TAPERED ROLLER BEARING - main shaft, front

1шт.

7

G15202

CUP

- tapered roller bearing, front

1шт.

8

R20786

RING

SNAP RING - tapered roller bearing, front

1шт.

9

A50046

RING

SNAP RING - clutch

2шт.

10

G102376

CLUTCH

ASSEMBLY - forward and reverse, parts list Fig. 6-42

2шт.

11

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

BALL BEARING - clutch assemblies

4шт.

12

A50293

SPACER

- wide, ball bearings, no longer used, not required

2шт.

13

A50505

GEAR WHEEL

DRIVE GEAR - reverse clutch

1шт.

14

A50034

SPACER

- narrow, ball bearings

1шт.

15

A50506

GEAR

DRIVE GEAR - forward clutch

1шт.

16

A50048

ROLLER BEARING,40mm ID x 21.69mm W

TAPERED ROLLER BEARING - main shaft, rear

1шт.

17

ST877

BEARING CUP,85mm OD x 17.46mm W

CUP - tapered roller bearing, rear

1шт.

18

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- main shaft, rear

1шт.

Part of Seal Kit, P/N G102662

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 5 and 18, for complete kit see Fig. 6-66

1шт.
