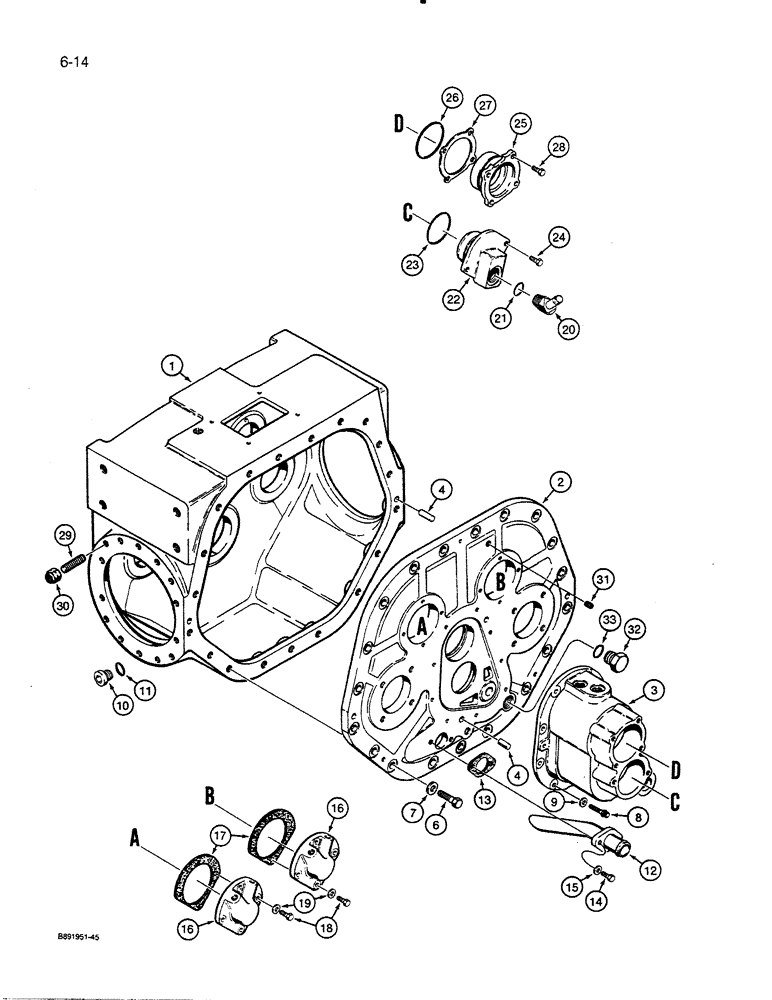

Запчасти Case 455C (6-14) - TRANSMISSION HOUSING AND FRONT COVERS, MODELS WITH WET BRAKES, P.I.N. GBE 0001501 AND AFTER (06) - POWER TRAIN

G110393

TRANSMISSION

ASSEMBLY - all models except 64" (1626 mm) gauge LGP dozer models, parts list Figs. 6-10 - 6-64 and 7-08 - 7-14

1шт.

G110394

TRANSMISSION

ASSEMBLY - 64" (1626 mm) gauge LGP dozer models only, parts list Figs. 6-10 - 6-64 and 7-08 - 7-14

1шт.

G109373

HOUSING

ASSEMBLY - transmission, Includes: Ref. 1 - 4

1шт.

1

G109372

HOUSING

- transmission

1шт.

2

G109368

COVER

- housing

1шт.

3

G109367

HOUSING

- range gear

1шт.

4

A50247

DOWEL

PIN - locating, range gear housing and front cover

4шт.

5

REF

INSTRUCTION

SEALANT - Gasket Eliminator No. 504, front cover and range gear housing, not shown

1шт.

6

26-922

BOLT,Hex, 9/16" - 12 x 1-3/8", Gr 8

- hex head, 9/16"-12 NC x 1-3/8", grade 8

19шт.

7

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 9/16", hardened

19шт.

8

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 1-1/4", grade 8

9шт.

9

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

9шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Transmission drain Hex Soc, 1 1/16"-12 ORB

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

12

A50110

TUBE

- suction

1шт.

13

A50109

GASKET

- suction tube

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

2шт.

16

G106948

COVER

- clutch shaft

2шт.

17

A50056

GASKET

- clutch shaft cover

2шт.

18

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

19

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

8шт.

20

217-325

FITTING

STEM FITTING - 45 degree, hydraulic oil return from radiator, Includes: Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Stem fitting

1шт.

22

G107146

COVER

- main shaft

1шт.

23

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

- main shaft cover

1шт.

24

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

B17428

LOCTITE

SEALANT - Gasket Eliminator No. 504, 50 ml tube

1шт.

B17504

GASKET

SEALANT - Gasket Eliminator No. 504, 300 ml cartridge

1шт.

25

G105196

SLEEVE

- input shaft

1шт.

26

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

- input shaft sleeve

1шт.

27

G105202

BLOCK

SHIM - sleeve, .003" thick

1шт.

27

G105203

BLOCK

SHIM - sleeve, .007" thick

1шт.

27

G107162

BLOCK

SHIM - sleeve, .020" thick

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

29

G100303

STUD

- 1/2" - 13 NC x 2-5/16", final drive housing

24шт.

30

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

31

221-841

PLUG

- hex socket head, 1/4" NPT, front cover

1шт.

32

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16 inch O-ring boss, if used, Includes: Ref. 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
