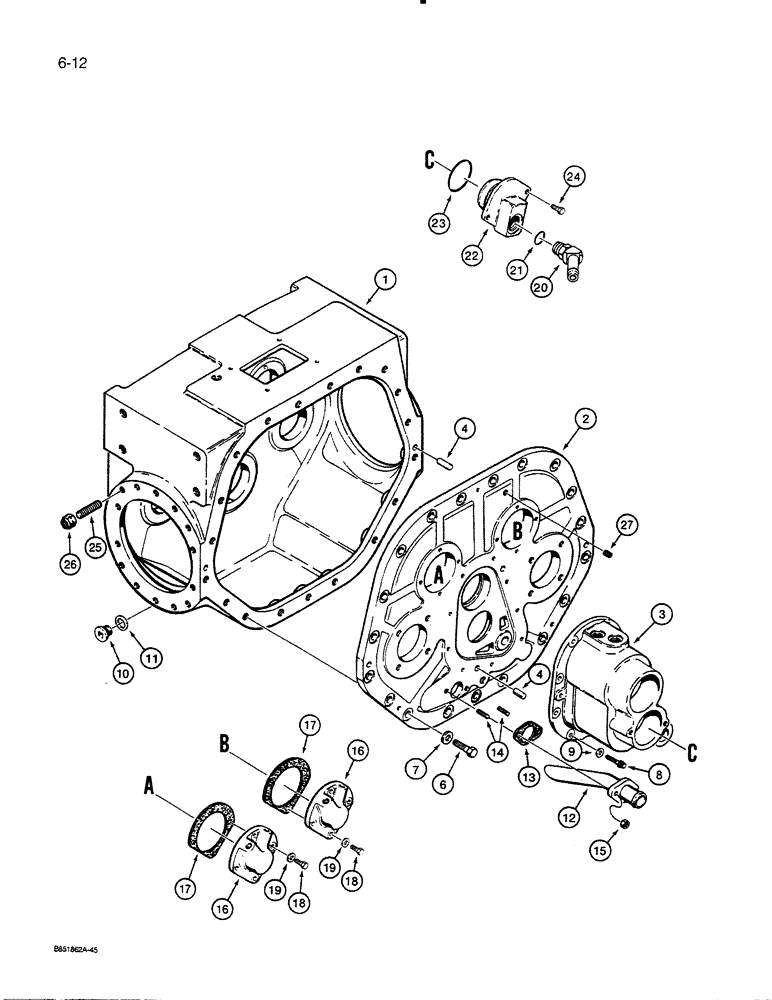

Запчасти Case 455C (6-12) - TRANSMISSION HOUSING AND FRONT COVERS, MODELS WITH WET BRAKES THRU P.I.N. 3080911 (06) - POWER TRAIN

G109336

TRANSMISSION

ASSEMBLY - all models except 64" (1626 mm) gauge LGP dozer models, parts list Figs. 6-10 - 6-64 and 7-8 - 7-14

1шт.

G109766

TRANSMISSION

ASSEMBLY - 64" (1626 mm) gauge LGP dozer models only, parts list Figs. 6-10 - 6-64 and 7-8 - 7-14

1шт.

G109767

HOUSING

ASSEMBLY - transmission, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - housing, front

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - range gear

1шт.

4

A50247

DOWEL

PIN - locating, range gear housing and front cover

4шт.

5

REF

INSTRUCTION

SEALANT - Gasket Eliminator No. 504, front cover and range gear housing, not shown

1шт.

6

26-922

BOLT,Hex, 9/16" - 12 x 1-3/8", Gr 8

- hex head, 9/16"-12 NC x 1-3/8", grade 8

19шт.

7

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8", hardened, use with item 6 bolt

19шт.

8

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 1-1/4", grade 8

9шт.

9

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

9шт.

Part of Seal Kit, P/N G102662

1шт.

10

R14777

PLUG

DRAIN PLUG - transmission, 1" - 18 NF

1шт.

11

A58613

SEALING WASHER

SEAL - nylon washer, drain plug

1шт.

Part of Seal Kit, P/N G102662

1шт.

12

A50110

TUBE

- suction

1шт.

13

A50109

GASKET

- suction tube

1шт.

Part of Seal Kit, P/N G102662

1шт.

14

A50362

STUD

- 3/8" - 16 NC x 1-3/8", suction tube mounting

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

G102244

COVER

- clutch shaft

2шт.

17

A50056

GASKET

- clutch shaft cover

2шт.

Part of Seal Kit, P/N G102662

1шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

19

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

8шт.

Part of Seal Kit, P/N G102662

1шт.

20

217-325

FITTING

STEM FITTING - 45 degree, hydraulic oil return from radiator, Includes: Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Stem fitting

1шт.

22

G103748

CYLINDER END CAP

COVER - main shaft, range gear inlet

1шт.

23

G104039

O-RING,2.989" ID x 3.129" OD

- main shaft cover

1шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

25

G102017

STUD

- 1/2" - 13 NC x 3", final drive housing

24шт.

26

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

27

221-841

PLUG

- hex socket head, 1/4" NPT, front cover

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 9, 11, 13, 17 and 19, for complete kit see Fig. 6-66

1шт.

B17428

LOCTITE

SEALANT - Gasket Eliminator No. 504, 50 ml tube

1шт.

B17504

GASKET

SEALANT - Gasket Eliminator No. 504, 300 ml cartridge

1шт.
