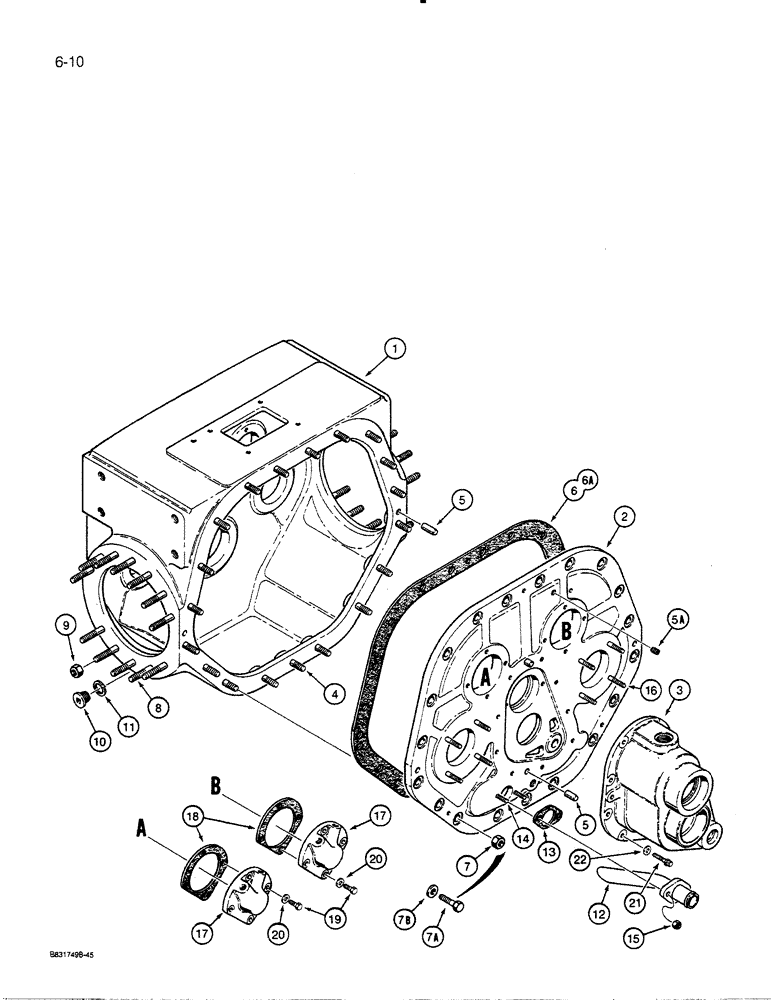

Запчасти Case 455C (6-10) - TRANSMISSION HOUSING AND FRONT COVERS, MODELS WITH DRY BRAKES (06) - POWER TRAIN

G104150

TRANSMISSION

ASSEMBLY - all models except 64" (1626 mm) gauge LGP dozer models, parts list Figs. 6-12 - 6-64 and 7-8 - 7-14

1шт.

G105267

TRANSMISSION

ASSEMBLY - 64" (1626 mm) gauge LGP dozer models only, parts list Figs. 6-12 - 6-64 and 7-8 - 7-14

1шт.

G106140

HOUSING

ASSEMBLY - transmission, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - housing, front

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - range gear

1шт.

4

A50249

STUD

- 9/16" - 12 NC threads, front cover to housing, if used, may be replaced with Ref. 7A and 7B

19шт.

5

A50247

DOWEL

- locating, front cover

4шт.

5a

221-841

PLUG

- hex socket head, 1/4" NPT, in front cover

1шт.

6

G35334

GASKET

- housing cover

1шт.

Part of Seal Kit, P/N G102662

1шт.

6a

REF

INSTRUCTION

SEALANT - Gasket Eliminator No. 504, front cover, see below, used in addition to Ref. 6 gasket and range gear housing, not shown

1шт.

7

131-1218

LOCK NUT,9/16"-12, GC

NUT, LOCK, , Used with Ref. 4 stud only, if used 9/16"-12, GC

19шт.

7a

26-922

BOLT,Hex, 9/16" - 12 x 1-3/8", Gr 8

- hex head, 9/16"-12 NC x 1-3/8", grade 8, if used

19шт.

7b

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8", hardened, use with Ref. 7A bolt, if used

19шт.

8

G102017

STUD

- 1/2" - 13 NC x 3"

24шт.

9

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

10

R14777

PLUG

- drain

1шт.

11

A58613

SEALING WASHER

SEAL - nylon washer

1шт.

Part of Seal Kit, P/N G102662

1шт.

12

A50110

TUBE

- suction

1шт.

13

A50109

GASKET

- suction tube

1шт.

Part of Seal Kit, P/N G102662

1шт.

14

A50362

STUD

- 3/8" - 16 NC x 1-3/8"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

G102110

BOLT

- 1/2" - 13 NC x 2", brake plate mounting

8шт.

17

G102244

COVER

- clutch shaft

2шт.

18

A50056

GASKET

- clutch shaft cover

2шт.

Part of Seal Kit, P/N G102662

1шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

20

D32117

COPPER WASHER

WASHER, COPPER

8шт.

Part of Seal Kit, P/N G102662

1шт.

21

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 1-1/4", grade 8

9шт.

22

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

9шт.

Part of Seal Kit, P/N G102662

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 6, 11, 13, 18, 20 and 22, for complete kit see Fig. 6-66

1шт.

B17428

LOCTITE

SEALANT - Gasket Eliminator No. 504, 50 ml tube

1шт.

B17504

GASKET

SEALANT - Gasket Eliminator No. 504, 300 ml cartridge

1шт.
