Запчасти Case 455C (6-02) - TORQUE CONVERTER ASSEMBLY (06) - POWER TRAIN

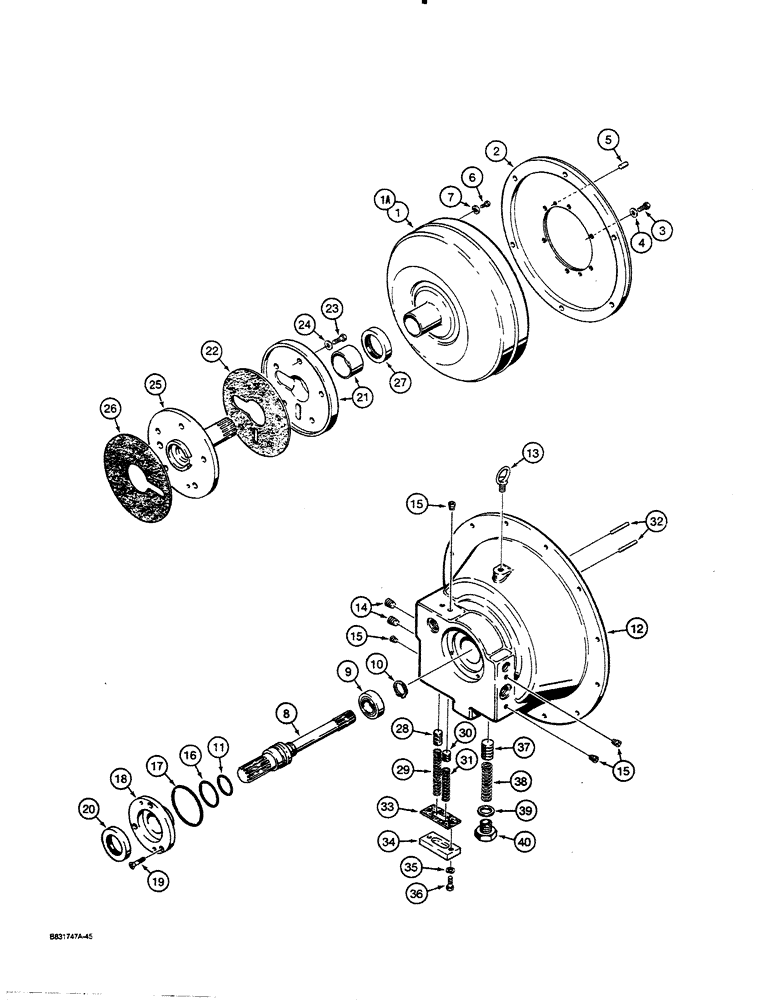

Схема запчастей Case 455C - (6-02) - TORQUE CONVERTER ASSEMBLY (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

R46428

CONVERTER

TORQUE CONVERTER ASSEMBLY - complete, used on all loader models; used on dozer and drawbar models before P.I.N. 3077110, Includes: Ref. 1 - 11

1шт.

R52028

CONVERTER

TORQUE CONVERTER ASSEMBLY - complete, used on dozer and drawbar models P.I.N. 3077110 and after, Includes: Ref. 1 - 11

1шт.

N8975

CONVERTER

CORE ASSEMBLY - torque converter, R46428 torque converter assembly only, Includes: Ref. 1 - 11

1шт.

N13044

CONVERTER

CORE ASSEMBLY - torque converter, R52028 torque converter assembly only, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

ROTATING ASSEMBLY - R46428 torque converter only, painted yellow, stamped with N8975 core assembly part number visible through flywleel housing opening

1шт.

1a

NSS

NOT SOLD SEPARAT

ROTATING ASSEMBLY - R52028 torque converter only, painted black, stamped with N13044 core assembly part number visible through flywleel housing opening

1шт.

2

N8976

LARGE PLATE

PLATE - adapter, torque, Serial Range: converter-flywheel

1шт.

3

826-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex head, 10 mm - 15 x 20 mm (10.9)

6шт.

4

N8977

WASHER

- special

6шт.

5

N8979

SPLIT PIN/SAFETY PIN

DOWEL PIN - plate locating

2шт.

6

514-613

BOLT,Hex, M8 x 1 x 8mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1 x 8 mm (8.8), plated, drain

2шт.

7

N8978

WASHER

- seal

2шт.

8

N8980

SHAFT

- torque converter assembly

1шт.

9

N8981

BALL BEARING

BEARING - shaft

1шт.

10

N8983

RING

SNAP RING - bearing retaining

1шт.

11

N8982

O-RING

O-RING - shaft

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - torque converter assembly, yellow

1шт.

13

NSS

NOT SOLD SEPARAT

EYEBOLT - lift

1шт.

14

221-841

PLUG

- hex socket head, 1/4" NPT

2шт.

15

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

4шт.

16

N9002

O-RING

- housing, small

1шт.

17

N8993

O-RING

- housing, large

1шт.

18

N8988

COVER

- bushing, shaft

1шт.

19

861-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

BOLT - hex socket head, 6 mm - 1 x 16 mm (12.9)

3шт.

20

N8989

OIL SEAL

OIL SEAL - shaft, drive shaft end

1шт.

REF

INSTRUCTION

TORQUE CONVERTER ASSEMBLY - complete, continued, Includes: Ref. 21 - 40

1шт.

21

N8984

ADAPTER

- torque converter, includes bushing

1шт.

22

N8985

GASKET

-, Serial Range: adapter-carrier

1шт.

23

826-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

5шт.

24

N8992

WASHER

- special

5шт.

25

N8986

BEARING CARRIER

CARRIER - torque converter

1шт.

26

N8987

GASKET

-, Serial Range: carrier-housing

1шт.

27

N8990

OIL SEAL

- adapter to torque converter

1шт.

28

N8995

PISTON

- pressure regulator valve, left-hand outer position

1шт.

29

N8996

SPRING

- pressure regulator valve, left-hand outer position

1шт.

30

N8997

PISTON

- relief valve, inlet port, left-hand inner position

1шт.

31

N8998

SPRING

- relief valve, inlet port, left-hand inner position

1шт.

32

N8994

SPLIT PIN/SAFETY PIN

PIN - piston retaining

2шт.

33

N8999

GASKET

- relief valve cover

1шт.

34

N9000

COVER

- left-hand relief valves

1шт.

35

N8992

WASHER

- special

2шт.

36

826-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

- hex head, 10 mm - 1.25 x 30 mm (10.9)

2шт.

37

N9004

PISTON

- relief valve, outlet port, right-hand side

1шт.

38

N9003

SPRING

- relief valve, outlet port, right-hand side

1шт.

39

N9001

WASHER

- seal, relief valve plug

1шт.

40

N8991

PLUG

- relief valve, outlet port, right-hand side

1шт.

Выбрано товаров: 46
