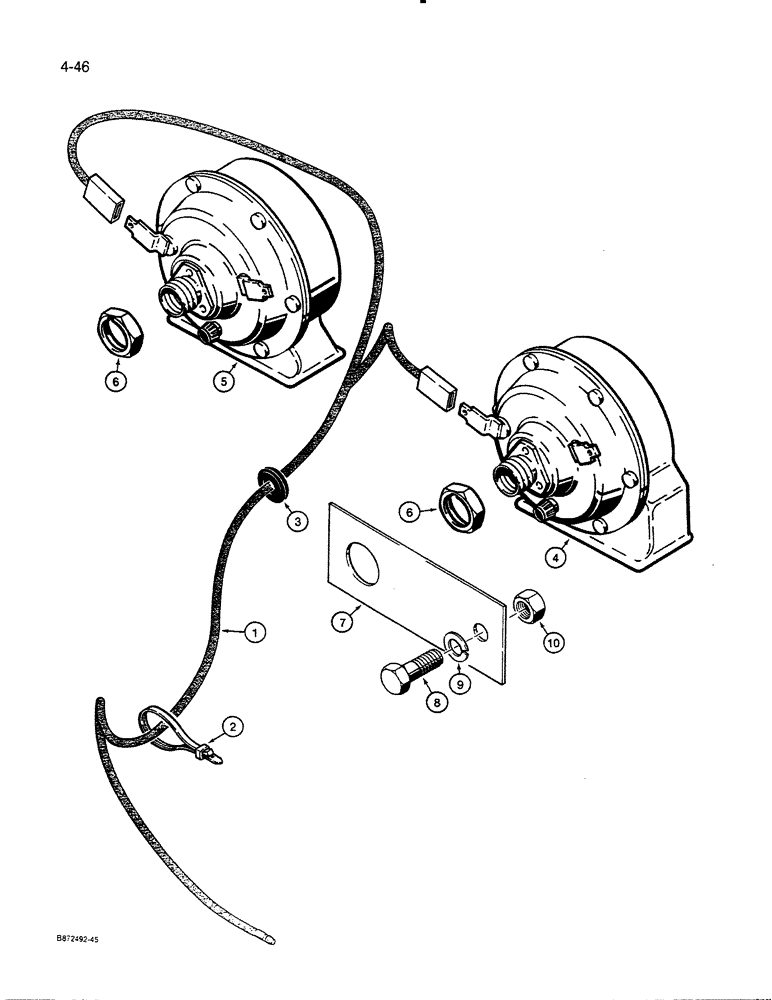

Запчасти Case 455C (4-46) - HORN (04) - ELECTRICAL SYSTEMS

1

R47684

ELECTRICAL WIRE

WIRE - main wiring, Serial Range: harness-horns

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

D37936

GROMMET

- horn wire

1шт.

4

D123205

HORN

- right-hand

1шт.

5

R45962

HORN

- left-hand

1шт.

6

L30866

LOCK NUT

- special

2шт.

7

D136369

LARGE PLATE

BRACKET - horn mounting, if used

2шт.

8

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
