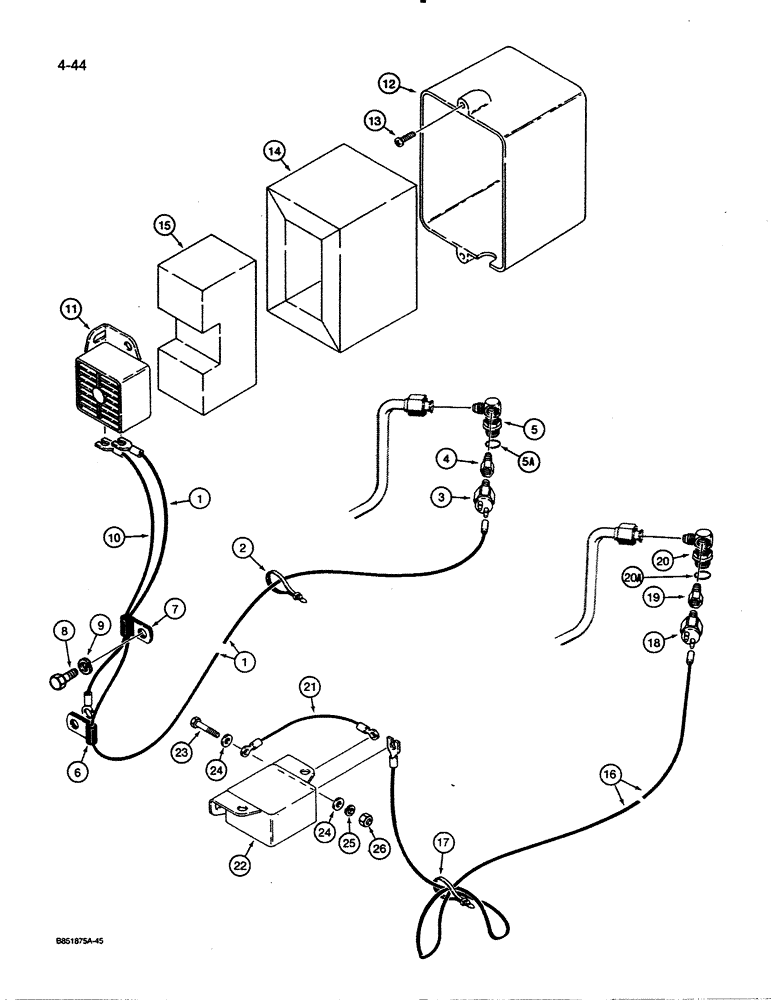

Запчасти Case 455C (4-44) - BACKUP ALARM, BOLTS TO REAR COVER, MODELS WITHOUT A BACKHOE (04) - ELECTRICAL SYSTEMS

1

R50296

HARNESS

- backup alarm to pressure switch at transmission control valve

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

D99796

SWITCH

- pressure, at transmission control valve

1шт.

REF: 3 & 18 NEW SWITCH WITH IMPROVED SEALING IS PART NUMBER D139904 TO BE USED IN THESE TWO LOCATIONS PER T/S #80-94C SENT 2/24/94.

1шт.

4

R52651

FITTING

SNUBBER - pressure switch

1шт.

5

G107995

ELBOW

- 90 degree, adjustable, at transmission control reverse line, Includes: Ref. 5A

1шт.

6

51200330

CLAMP

- harness and ground wire, uses rear cover mounting hardware

1шт.

7

49845

CLAMP

- backup alarm wires

1шт.

8

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

R50295

CABLE

WIRE - ground

1шт.

11

L112318

ALARM

BACKUP ALARM - bolts to rear access cover

1шт.

12

R50647

BOX

- plastic, backup alarm

1шт.

13

187-1308

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

SCREW - self-tapping, Phillips pan head, 1/4" - 20 NC x 3/4", plated

2шт.

14

R50648

FOAM

SEAL - foam, backup alarm box

1шт.

15

REF

INSTRUCTION

PAD - foam, backup alarm, 2" (50 mm) x 2-1/2" (65 mm) x 10" (255 mm), cut a double thickness from R30870 bulk, see below

1шт.

16

R50296

HARNESS

- backup alarm to pressure switch at transmission control valve, models with a backhoe

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, models with a backhoe

1шт.

18

D99796

SWITCH

- pressure, at transmission control valve, models with a backhoe

1шт.

REF: 3 & 18 NEW SWITCH WITH IMPROVED SEALING IS PART NUMBER D139904 TO BE USED IN THESE TWO LOCATIONS PER T/S #80-94C SENT 2/24/94.

1шт.

19

R52651

FITTING

SNUBBER - pressure switch, models with a backhoe

1шт.

20

G107995

ELBOW

- 90 degree, adjustable, at transmission control reverse line, models with a backhoe, Includes: Ref 20A

1шт.

21

R41006

ELECTRICAL WIRE

WIRE - ground, models with a backhoe

1шт.

22

L112318

ALARM

BACKUP ALARM - bolts to left-hand side of seat and tank frame, models with a backhoe

1шт.

23

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Models with a backhoe Hex, 1/4"-20 x 1", G5

2шт.

24

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, models with a backhoe

4шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Models with a backhoe 1/4"

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Models with a backhoe

2шт.

R30870

PAD

- bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm), models with a backhoe

1шт.

5a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Models with a backhoe

1шт.
