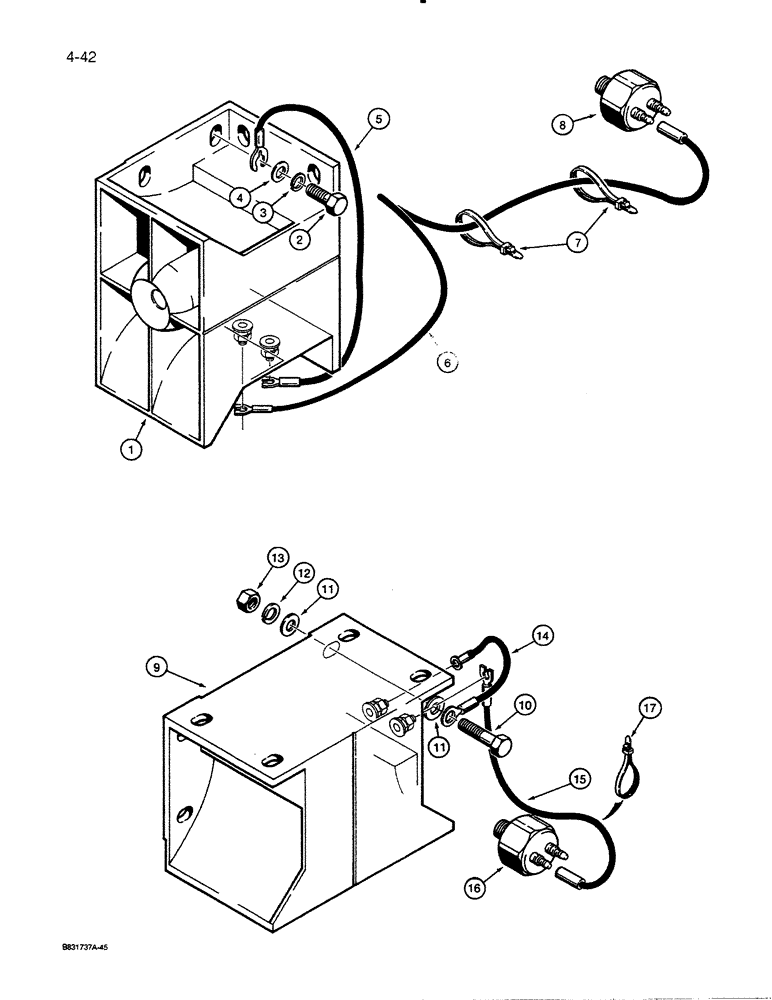

Запчасти Case 455C (4-42) - BACKUP ALARM, BOLTS TO SIDE OF FUEL TANK, MODELS WITHOUT A BACKHOE (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

BACKUP ALARM - bolts to inner side of fuel tank, inside rear cover

1шт.

2

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

4

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

5

R49493

ELECTRICAL WIRE

WIRE - ground

1шт.

6

R49494

ELECTRICAL WIRE

WIRE - backup alarm to pressure switch

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

8

D99796

SWITCH

- pressure, at transmission control valve

1шт.

REF: 8 & 16 NEW IMPROVED SWITCH WITH BETTER SEALING USE PART # D139904 AT THESE TWO LOCATIONS PER T/S # 80-94C ON 2/24/94.

1шт.

9

D121972

ALARM

BACKUP ALARM - bolts to left-hand side of seat and tank frame, models with a backhoe

1шт.

10

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Models with a backhoe Hex, 1/4"-20 x 1", G5

2шт.

11

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, models with a backhoe

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Models with a backhoe 1/4"

2шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Models with a backhoe

2шт.

14

R41006

ELECTRICAL WIRE

WIRE - ground, models with a backhoe

1шт.

15

R49494

ELECTRICAL WIRE

WIRE - backup alarm to pressure switch, models with a backhoe

1шт.

16

D99796

SWITCH

- pressure, at transmission control valve, models with a backhoe

1шт.

REF: 8 & 16 NEW IMPROVED SWITCH WITH BETTER SEALING USE PART # D139904 AT THESE TWO LOCATIONS PER T/S # 80-94C ON 2/24/94.

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, models with a backhoe

1шт.
