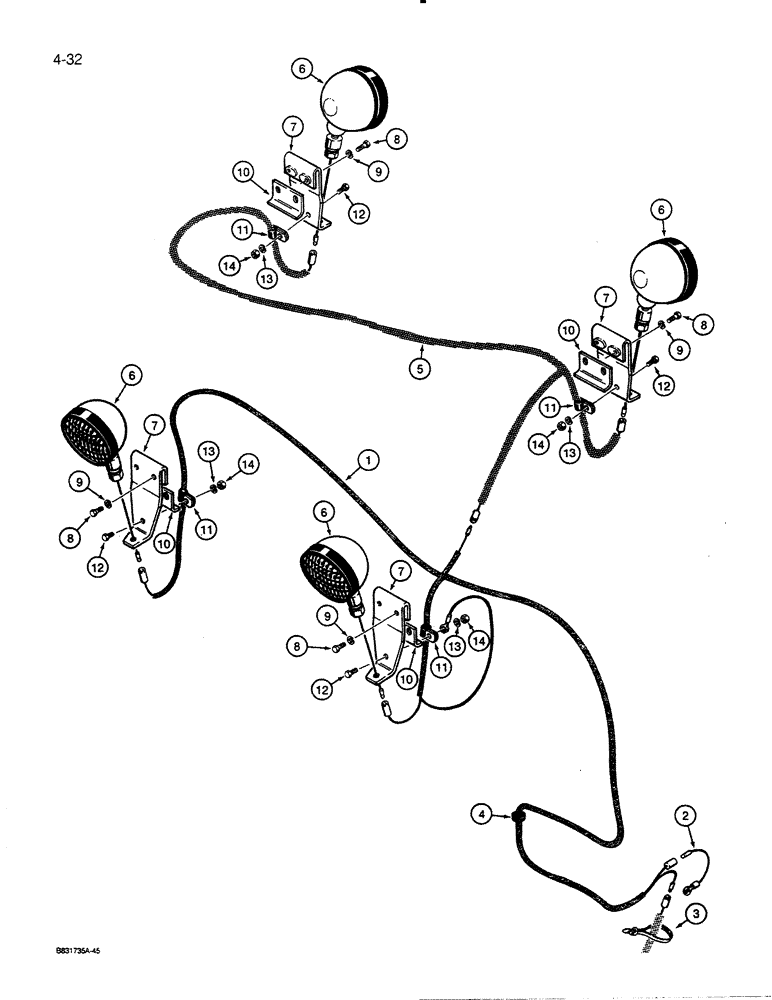

Запчасти Case 455C (4-32) - INCANDESCENT LAMPS AND WIRING, MODELS WITH ROPS CANOPY, REAR LAMPS MOUNTED OUTSIDE CANOPY SCREEN (04) - ELECTRICAL SYSTEMS

1

R47539

HARNESS

- rear lamps

1шт.

2

R47747

ELECTRICAL WIRE

WIRE - ground, rear lamp harness

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

D37936

GROMMET

- rear lamp harness through hydraulic reservoir frame

1шт.

5

R47540

HARNESS

- front lamps

1шт.

6

D88684

LAMP

ASSEMBLY - front and rear, parts list Fig. 4-38

4шт.

7

R47401

SUPPORT

BRACKET - lamp mounting

4шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

10

R47405

SUPPORT

ANGLE - bracket retaining

4шт.

11

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness to lamp bracket

4шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
