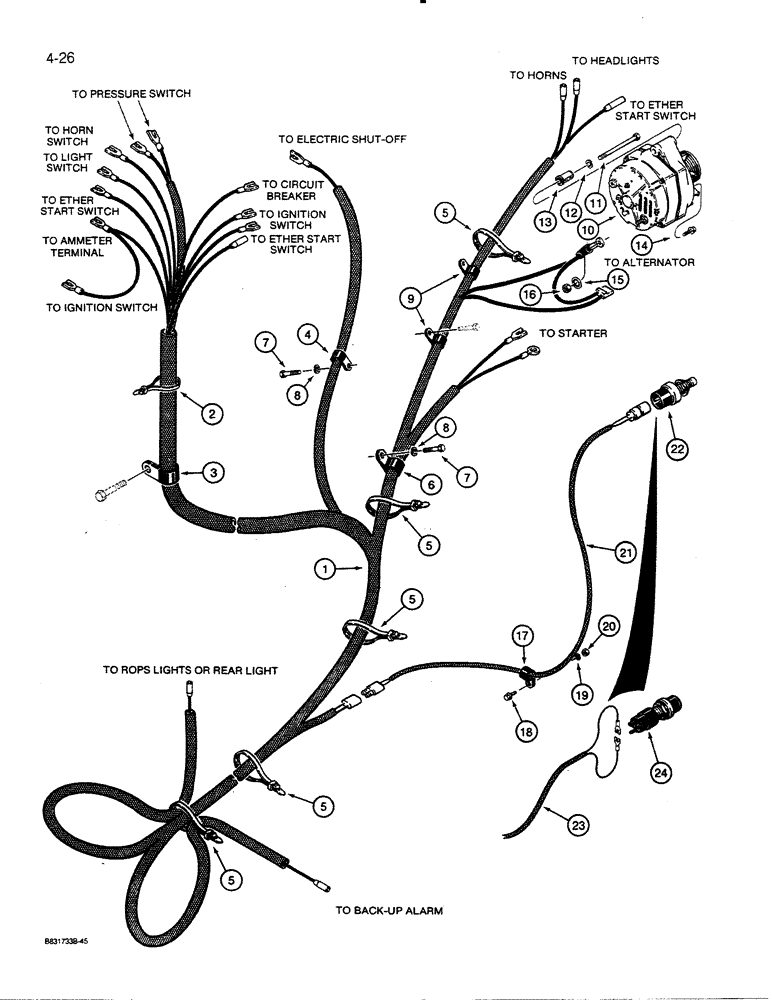

Запчасти Case 455C (4-26) - MAIN WIRING HARNESS, AND DELCO-REMY ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

R50989

HARNESS

- main wiring

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

D40471

CLAMP

- harness to firewall, uses throttle cross shaft mounting hardware

1шт.

4

S79579

CLAMP

- harness, to rear and left-hand side of engine

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

D41564

- harness, below starter on jump start decal plate

1шт.

7

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 25 mm (8.8), plated

3шт.

8

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

3шт.

9

49838

CLAMP

- harness, uses engine oil filter hardware

2шт.

10

REF

INSTRUCTION

ALTERNATOR - for correct assembly and components see Figs. 4-6 - 4-10, Delco-Remy alternator shown

1шт.

For Bosch alternator mounting and electrical connection to main wiring harness, see Fig. 4-28.

1шт.

11

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- Hex, M10 x 100, 8.8

1шт.

12

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

1шт.

13

J902469

SPACER

- alternator mounting, upper

1шт.

14

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

- hex flange head, 8 - 1.25 x 20 mm (10.9)

1шт.

15

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, , Harness connection to alternator Int Tooth, 1/4"

1шт.

16

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated

1шт.

17

D31148

CLAMP

- starter switch wire to heel plate

1шт.

18

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

21

R40995

ELECTRICAL WIRE

WIRE - to R40432 starter switch only, with 2-wire plug-type connector, if used

1шт.

22

R40432

SWITCH

- starter, push button, with plug-type connection, if used

1шт.

23

D39130

ELECTRICAL WIRE

WIRE - to S241920 starter switch only, with snap spade connectors, if used

1шт.

24

S241920

SWITCH

- starter, push button, with studs for snap spade connectors, if used

1шт.

25

B17425

LOCTITE

SEALANT - pipe threads, with Teflon, Loctite No. 92, 50 ml tube, use to seal S241920 switch, Ref. 24, if used, not shown

1шт.
