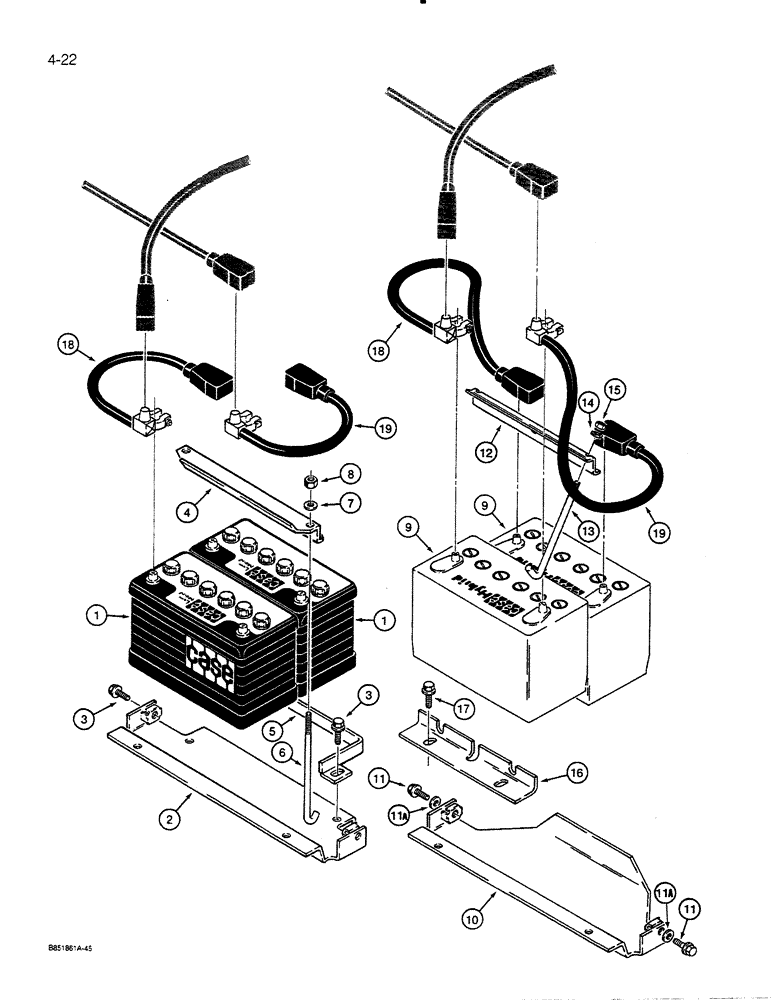

Запчасти Case 455C (4-22) - DUAL BATTERIES AND MOUNTING, BHC30 BATTERIES AND MOUNTING, IF USED (04) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY - 12 volt, 580 amperes, with vent caps, dry, if used

2шт.

2

R49192

LARGE PLATE

PLATE - battery mounting

1шт.

3

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

6шт.

4

R49194

SUPPORT

BRACKET - battery retaining, top

1шт.

5

R48677

SUPPORT

RETAINER - front battery

1шт.

6

D59707

BOLT

- J-type, 10" (254 mm) long, plated

2шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

9

BMF31E

DRY BATTERY

BATTERY - 12 volt, 700 amperes, dry, if used, BMF31 batteries and mounting

2шт.

10

R51792

LARGE PLATE

PLATE - battery mounting, BMF31 batteries and mounting

1шт.

10

R51792

LARGE PLATE

PLATE - battery mounting, BMF31 batteries and mounting

1шт.

11

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, , BMF31 batteries and mounting Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

4шт.

11a

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, use as a shim for the battery mounting plate, Ref. 10, if needed, BMF31 batteries and mounting

1шт.

12

R51648

LARGE PLATE

BRACKET - battery retaining, BMF31 batteries and mounting

1шт.

13

D59707

BOLT

- J-type, 10" (254 mm) long, plated, BMF31 batteries and mounting

2шт.

14

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, BMF31 batteries and mounting

2шт.

15

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, , BMF31 batteries and mounting 3/8"-16, GC

2шт.

16

R50651

BRACKET

PLATE - battery mounting, rear, BMF31 batteries and mounting

1шт.

17

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, , BMF31 batteries and mounting Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

2шт.

18

R49218

CABLE

- jumper, positive battery cable, parts used with either set of batteries

1шт.

19

R49217

CABLE

- jumper, negative battery cable, parts used with either set of batteries

1шт.
