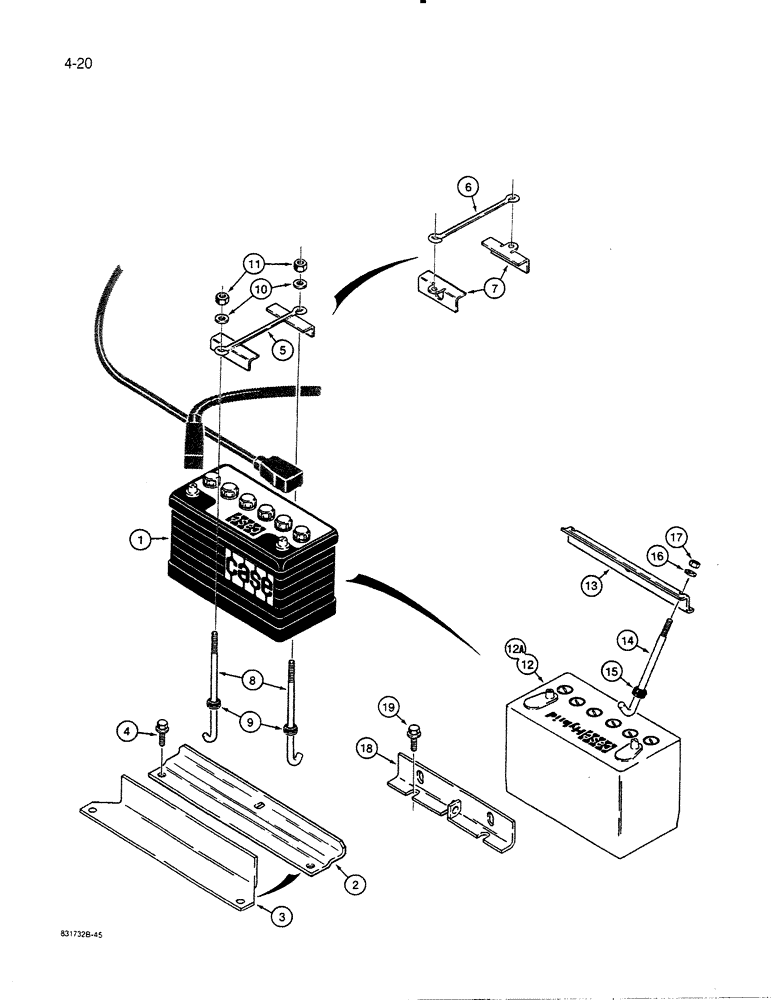

Запчасти Case 455C (4-20) - SINGLE BATTERY AND MOUNTING, BHC30 BATTERY AND MOUNTING, IF USED (04) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY - 12 volt, 580 amperes, with vent caps, dry, if used

1шт.

2

R50415

LARGE PLATE

PLATE - battery mounting, front, J-bolt anchors in hole in plate, if used

1шт.

3

R50653

LARGE PLATE

PLATE - battery mounting, front, J-bolt anchors in tab on front of plate, if used

1шт.

4

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

2шт.

5

D86424

RETAINER

- battery, top, one-piece, no longer available, order Ref. 6 retainer and two Ref. 7 brackets

1шт.

6

D55561

RETAINER

- battery, top

1шт.

7

D125079

BRACKET

- battery retainer

2шт.

8

D49723

BOLT

- J, 9" (229 mm) long

2шт.

9

49566

GROMMET

- J-bolt

2шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

11

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

12

BMF31E

DRY BATTERY

BATTERY - 12 volt, 700 amperes, dry, if used, BMF31 mounting

1шт.

12a

BMF31G

BATTERY, DRY

12V, 950 amperes, Must be used on P.I.N. GBE 0001501 and after, BMF31 mounting

1шт.

13

R51648

LARGE PLATE

BRACKET - battery retaining, BMF31 mounting

1шт.

14

D59707

BOLT

- J, 10" (254 mm) long, plated, BMF31 battery and mounting

2шт.

15

R39516

GROMMET

- J-bolt, BMF31 battery and mounting

2шт.

16

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, BMF31 battery and mounting

2шт.

17

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, , BMF31 battery and mounting 3/8"-16, GC

2шт.

18

R50651

BRACKET

PLATE - battery mounting, rear, if used, parts used with all batteries

1шт.

19

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, , Parts used with all batteries Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

2шт.
