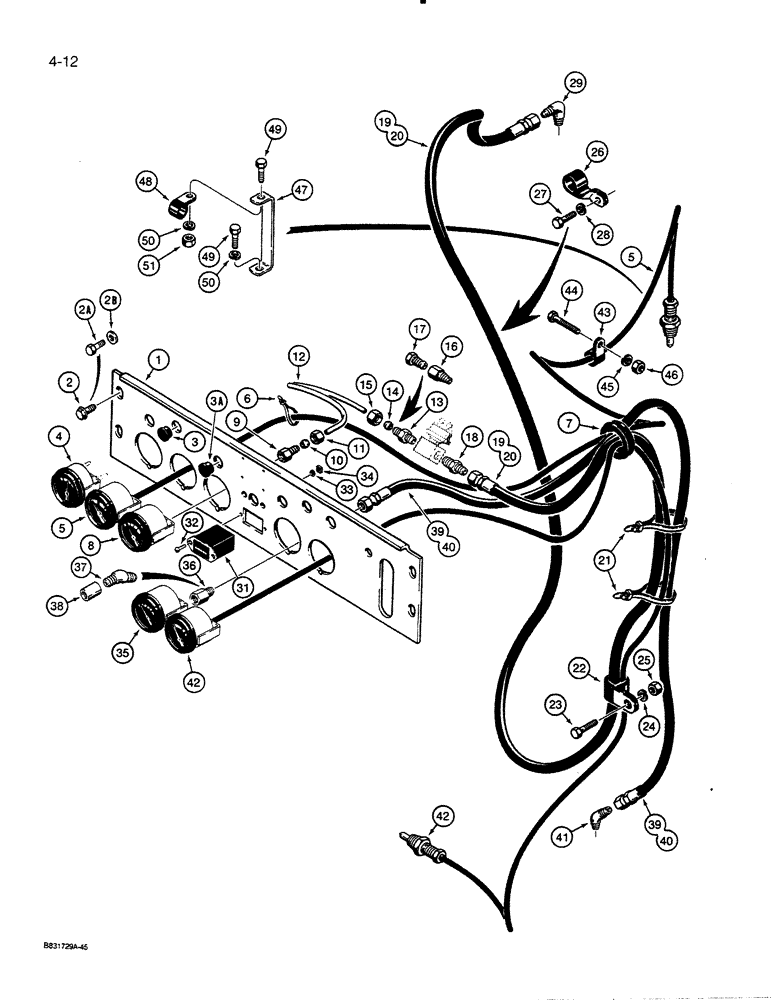

Запчасти Case 455C (4-12) - INSTRUMENT PANEL AND GAUGES (04) - ELECTRICAL SYSTEMS

1

R51646

PANEL

INSTRUMENT PANEL - includes decal, for decal see Fig. 9-64

1шт.

2

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated, if used

4шт.

If your instrument panel decal does not extend under panel mounting hardware, use bolt Ref. 2. If your instrument panel decal has holes for panel mounting hardware, use bolt 2A and washer 2B.

1шт.

2a

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

If your instrument panel decal does not extend under panel mounting hardware, use bolt Ref. 2. If your instrument panel decal has holes for panel mounting hardware, use bolt 2A and washer 2B.

1шт.

2b

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, if used

4шт.

If your instrument panel decal does not extend under panel mounting hardware, use bolt Ref. 2. If your instrument panel decal has holes for panel mounting hardware, use bolt 2A and washer 2B.

1шт.

3

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16" diameter, if used

1шт.

3a

353-404

PLUG,Dome, .500" hole, Nylon

Used when turbocharger fuel shutoff switch is not used Dome, .500" hole, Nylon

1шт.

4

R38643

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

5

X146163

HOUSING

- 52 inch long, engine temperature, replaces R42267 48 inch long gauge

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

7

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- cowl, loader models only

1шт.

8

R49132

GAUGE ASSY.

GAUGE - engine oil pressure

1шт.

D35091

PIPE FITTING

ADAPTER - straight, engine oil pressure gauge, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

10

D37176

SLEEVE

- compression fitting

1шт.

11

D37362

TUBE NUT

- compression fitting

1шт.

12

R40211

PLASTIC-RUBBER TUBE,0.125" OD x 10" L

TUBE - nylon, 10" (254 mm) long, cut from L60539, see below, engine oil pressure

1шт.

D35816

CONNECTOR, ELEC

ADAPTER - straight, production part, for service order 222-400 adapter, see Ref. 16 and 17, Includes: 13 -15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

14

D37176

SLEEVE

- compression

1шт.

15

D37362

TUBE NUT

- adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - straight, service replacement for D35816 adapter, see Ref. 13 - 15, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

17

222-500

TUBE NUT,5/16" - 24 NPT

NUT AND SLEEVE - adapter

1шт.

18

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, male

1шт.

19

D95116

HOSE

- engine oil pressure, 44" (1118 mm) long, dozer and drawbar models only

1шт.

20

R56604

HOSE ASSY.

HOSE - engine oil pressure, 50" (1270 mm) long, loader models only, replaces R40333 hose

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - cables and hoses behind firewall

1шт.

22

D40471

CLAMP

- engine oil pressure hose and torque converter temperature, Serial Range: cable-firewall

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

L60539

TUBE,0.125" OD x 168" L

- nylon, 14 ft (427 cm) long

1шт.

26

R40419

CLAMP

- twist, engine oil pressure hose

1шт.

27

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 25 mm (8.8), plated

1шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

29

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

31

L107631

METER

HOURMETER - engine

1шт.

32

169-169

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- machine - Fillister head, No. 5 - 40 NC x 1/2", plated

2шт.

33

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

2шт.

34

129-44

SQUARE NUT,Sq, #5-40

2шт.

35

R53929

GAUGE

- transmission oil pressure

1шт.

36

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER - straight, used on loader models only

1шт.

37

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree, male, used on dozer and drawbar models only

1шт.

38

221-1335

COUPLING,Pipe, 1/8" NPT

plated, used on dozer and drawbar models only Pipe, 1/8" NPT

1шт.

39

R56603

HOSE ASSY.

HOSE - transmission oil pressure, 30" (762 mm) long, used on dozer and drawbar models, replaces R50312 hose

1шт.

40

R56606

HOSE

- transmission oil pressure, 41-1/2" (1054 mm) long, used on loader models, replaces D95115 hose

1шт.

41

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree, male

1шт.

42

R54146

GAUGE

- torque converter temperature, includes tube and connector

1шт.

43

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- engine temperature cable at right-hand master brake cylinder

1шт.

44

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

46

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

47

R50427

BRACKET

- engine temperature cable, mounts to front of engine, used on all dozer and drawbar models and on loader models with a cold start kit

1шт.

48

80049853

YOKE

- engine temperature, Serial Range: cable-bracket

1шт.

49

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

50

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

2шт.

51

825-1110

NUT,M10, Cl 8

hex, plated M10, Cl 8

1шт.
