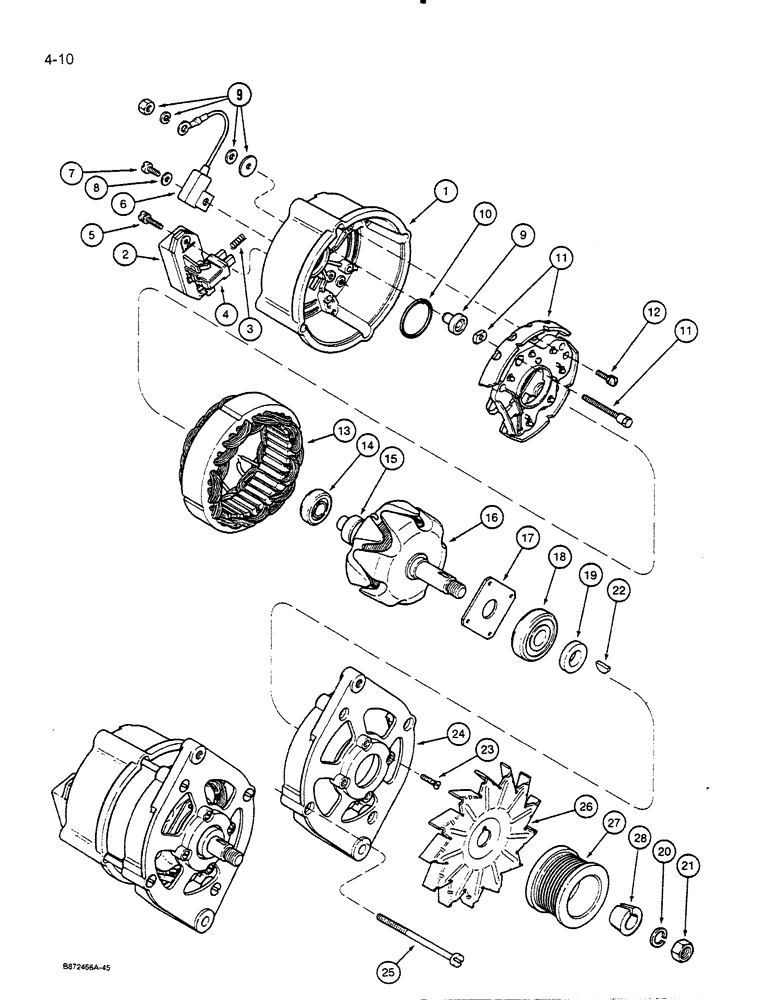

Запчасти Case 455C (4-10) - BOSCH ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A186125
ALTERNATOR
ALTERNATOR ASSEMBLY - Bosch, 14 volt, 65 ampere, Includes: Ref. 1 - 25
1шт.
AR186125GV
ALTERNATOR
Value
1шт.
AR186125
REMAN-ALTERNATOR
Reman For New PN A186125
1шт.
AC186125
CORE-ALTERNATOR
Return Number
1шт.
103799A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 63 AMP Alternator
1шт.
103799A1C
CORE-ALTERNATOR
Return Number, 12 Volt, 63 Amp Alternator
1шт.
103802A1R
REMAN-ALTERNATOR
Reman For New PN A186125
1шт.
103802A1C
CORE-ALTERNATOR
Return Number
1шт.
1
A186187
HOUSING
HOUSING - collector ring end
1шт.
2
A186189
REGULATOR
REGULATOR - voltage
1шт.
3
NSS
NOT SOLD SEPARAT
SPRING - compression
2шт.
4
NSS
NOT SOLD SEPARAT
BRUSH ASSEMBLY - alternator
1шт.
5
A186194
SCREW,M4 x 18mm
SCREW, , Voltage regulator retaining Sltd Truss Hd, M4 x 18, w/LW
2шт.
6
A186195
CAPACITOR
CAPACITOR - alternator
1шт.
7
625589C1
SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8
SCREW - Fillister head, capacitor retaining
1шт.
8
A186196
WASHER
WASHER - flat, capacitor screw
1шт.
9
3079135R1
TERMINAL CONNECTOR
HARDWARE SET - terminal
1шт.
10
3079386R1
O-RING
O-RING - ball bearing seal
1шт.
11
A186197
RECTIFIER
RECTIFIER BRIDGE - alternator, includes hardware
1шт.
12
A186188
SCREW
BOLT - with washer, rectifier bridge retaining
3шт.
13
A186192
STATOR
STATOR ASSEMBLY - alternator
1шт.
14
A186186
BALL BEARING,12mm ID x 32mm OD x 10mm W
BALL BEARING - rotor, collector ring end
1шт.
15
A186185
RING
RING - collector
1шт.
16
A186184
ROTOR
ROTOR ASSEMBLY - alternator
1шт.
17
3078379R1
COVER
PLATE - bearing retaining, drive end cover
1шт.
18
A186183
BALL BEARING,17 mm ID x 47 mm OD x 14 mm
BALL BEARING - rotor, drive end
1шт.
3078897R1
SET OF PARTS
RETAINING KIT - rotor, Includes: Ref. 19 - 23
1шт.
19
NSS
NOT SOLD SEPARAT
RING - spacer
1шт.
20
NSS
NOT SOLD SEPARAT
WASHER - lock, rotor shaft
1шт.
21
NSS
NOT SOLD SEPARAT
NUT - rotor shaft
1шт.
22
NSS
NOT SOLD SEPARAT
KEY - pulley retainer, not used in A186125 alternator
1шт.
23
NSS
NOT SOLD SEPARAT
SCREW - bearing retaining plate
4шт.
24
A186182
HOUSING
COVER - drive end
1шт.
25
A186193
BOLT,Pan, Cross Recess Phillips, M5 x 110mm
BOLT - cover retaining
4шт.
26
221425R1
FAN
FAN - alternator, not included with alternator assembly, order separately
1шт.
27
J903586
GROOVED PULLEY
PULLEY - drive, no longer available, replace with J908560 pulley and J908563 retainer as a matched set
1шт.
28
J903333
RETAINER
RETAINER - pulley, no longer available, replace with J908560 pulley and J908563 retainer as a matched set
1шт.
Выбрано товаров: 37
