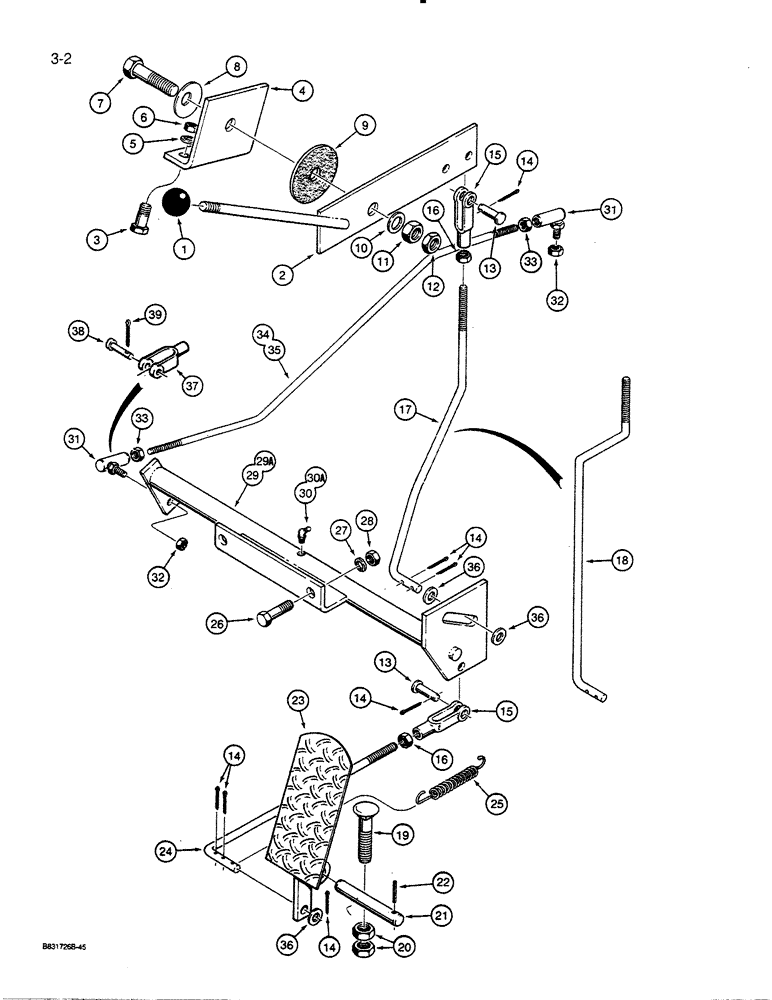

Запчасти Case 455C (3-02) - THROTTLE CONTROL LINKAGE (03) - FUEL SYSTEM

1

D49996

KNOB

- control lever

1шт.

2

R39829

LEVER

CONTROL LEVER - hand throttle

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

R26944

SUPPORT

BRACKET - mounting

1шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

7

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

8

R14771

WASHER

BELLEVILLE SPRING - lever mounting

1шт.

9

D139323

FRICTION WASHER

DISC - friction

1шт.

10

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

12

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

13

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2шт.

14

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

7шт.

15

H44198

YOKE

CLEVIS - adjustable, 5/16" - 24 NF, plated, replaces fiberglass clevis used in production on some models

2шт.

16

129-122

NUT,5/16"-24, G5

2шт.

17

R48113

ROD

- connecting, dozer and drawbar models

1шт.

18

R48382

ROD

- connecting, loader models

1шт.

19

111-530

CARRIAGE BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" - 13 NC x 2-1/2", plated

1шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

21

R17364

SHAFT

- pedal

1шт.

22

135-737

GROOVED PIN,5/32" x 1", Type E

ROLL PIN - 5/32" x 1"

1шт.

23

D35403

PEDAL

- foot throttle

1шт.

24

R39832

ROD

- connecting

1шт.

25

R29849

SPRING

- pedal

1шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

29

R49774

SUPPORT

SHAFT - cross, uses 5/16" grease fitting, no longer used, replace with Ref. 29A and 30A

1шт.

29a

R52634

BRACKET

SHAFT - cross, uses 3/16" grease fitting, Ref. 30A

1шт.

30

219-46

LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF

if used 65º, 5/16" NPT x .70" lg, Drive

1шт.

30a

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type, if used

1шт.

31

A10329

BALL JOINT,1/4" - 28 x 1"

- connecting rod, no longer used at cross shaft end, order Ref. 37 - 39

1-2шт.

32

131-498

LOCK NUT,1/4"-28, GB

NUT - hex, self-locking, 1/4" - 28 NF, plated, used with Ref. 31 only, if used

1-2шт.

33

129-121

NUT,1/4"-28, G5

2шт.

34

R53774

STEM

ROD - connecting, used on models without a turbocharger only

1шт.

35

R54381

STEM

ROD - connecting, used on models with a turbocharger only

1шт.

36

195-103

WASHER,5/16"

- flat, , plated 5/16"

3шт.

37

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - connecting rod at cross shaft end

1шт.

38

141-52

CLEVIS PIN,1/4" x .770"

- 1/4" diameter, at cross shaft

1шт.

39

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

HAIR PIN - at cross shaft clevis pin

1шт.
