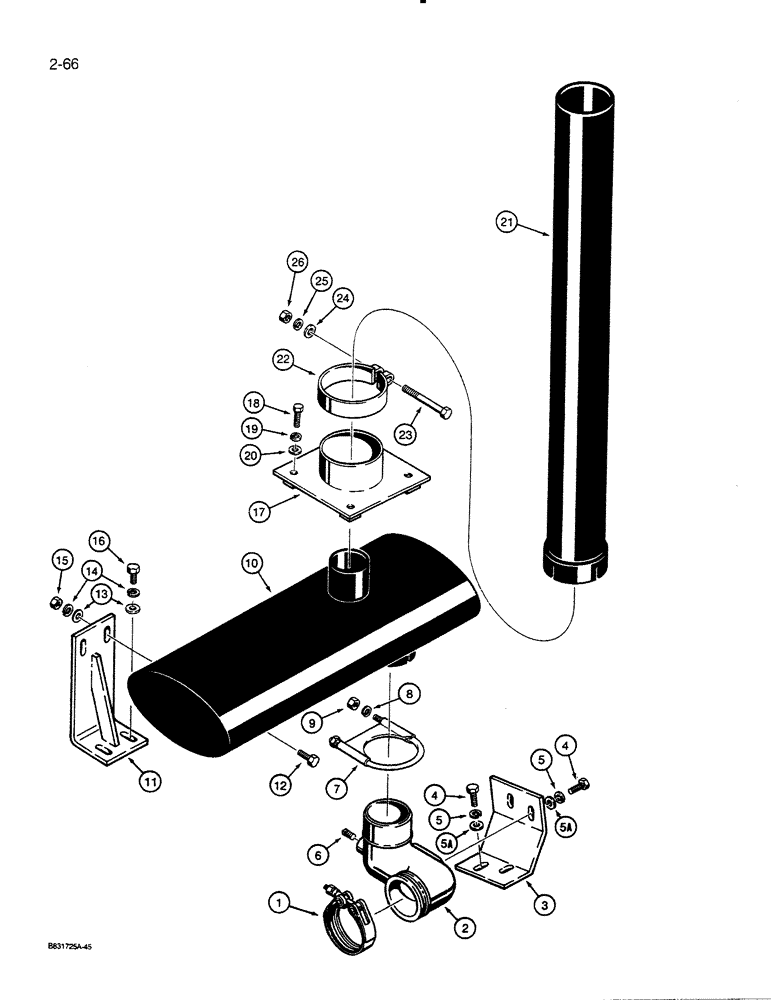

Запчасти Case 455C (2-66) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITH A TURBOCHARGER, IF USED (02) - ENGINE

1

A170467

CLAMP,72mm ID

- tube, at turbocharger

1шт.

2

A170987

ELBOW

TUBE - elbow, from turbocharger

1шт.

3

A172235

BRACKET

- tube support

1шт.

4

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 25 mm (8.8), plated

4шт.

5

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

4шт.

5a

D41740

WASHER

- flat, 3/8", hardened

4шт.

6

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

7

L73711

CLAMP

- muffler to tube, includes hardware, Includes: Ref. 8 and 9

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

A172783

MUFFLER

- used on models with a turbocharger, no longer available, order A189478 muffler on Fig. 2-68

1шт.

11

A172304

SUPPORT

BRACKET - muffler mounting

1шт.

12

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

13

D41740

WASHER

- flat, 3/8", hardened

4шт.

14

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

4шт.

15

825-1110

NUT,M10, Cl 8

hex, plated M10, Cl 8

2шт.

16

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 25 mm (8.8), plated

2шт.

17

R42378

BRACKET

- exhaust pipe

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, hardened, 3/8"

4шт.

21

R50444

PIPE

EXHAUST PIPE - muffler

1шт.

22

R42854

CLAMP

- exhaust pipe

1шт.

23

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

24

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

129-770

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, plated

1шт.
