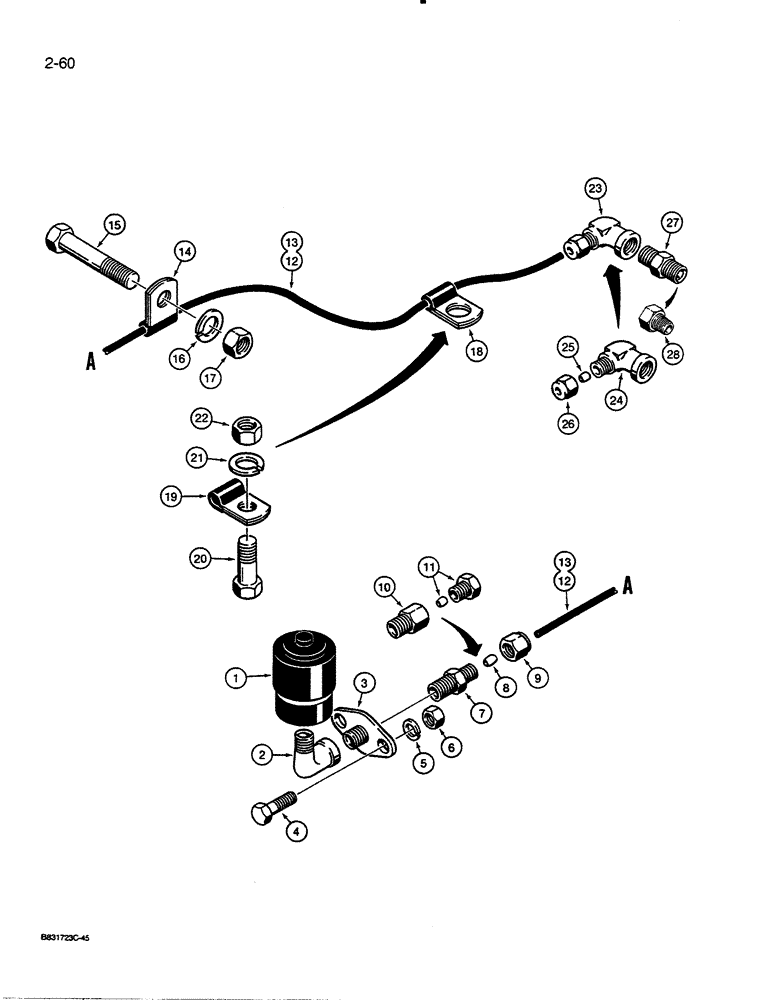

Запчасти Case 455C (2-60) - AIR RESTRICTION INDICATOR, MODELS WITHOUT A TURBOCHARGER (02) - ENGINE

1

A59569

INDICATOR

RESTRICTION INDICATOR - air

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

3

H357707

FLANGE

BRACKET - restriction indicator mounting

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

D35816

CONNECTOR, ELEC

ADAPTER ASSEMBLY - compression, straight, production part, for service order 222-400 adapter assembly, see Ref. 10 and 11, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

8

D37176

SLEEVE

- adapter

1шт.

9

D37362

TUBE NUT

- adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER ASSEMBLY - straight, service replacement for D35816 adapter assembly Ref. 7 - 9, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

11

222-500

TUBE NUT,5/16" - 24 NPT

NUT AND SLEEVE - adapter

1шт.

12

R52565

TUBE,0.125" OD x 29.5" L

- nylon, 29-1/2" (750 mm) long, used on dozer and drawbar models without a turbocharger, cut from L60539 bulk, see below

1шт.

13

R27253

PLASTIC-RUBBER TUBE,0.125" OD x 46" L

TUBE - nylon, 46" (1168 mm) long, used on loader models without a turbocharger, cut from S118583 bulk, see below

1шт.

14

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- tube, at left-hand master brake cylinder

1шт.

15

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

18

51200330

CLAMP

- tube, uses 1/2" diameter engine lift hook hardware, if used

1шт.

19

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- tube, uses 3/8" diameter hardware, Ref. 20 - 22, if used

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

1шт.

23

222-5390

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT

- 90 degree, compression fitting, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

25

222-4976

SLEEVE,1/8" Tube

- compression fitting

1шт.

26

222-4988

TUBE NUT,1/8" Tube

NUT - compression fitting

1шт.

27

D36264

FITTING

ADAPTER - special, filter-type, 1/8" NPT

1шт.

28

221-1087

REDUCER

- 1/2 x 1/8 inch taper PT, at engine

1шт.

L60539

TUBE,0.125" OD x 168" L

- 1/8" (3 mm) OD x 14 ft (427 cm) long

1шт.

S118583

LARGE HOSE

TUBE - 1/8" (3 mm) OD x 25 ft (762 cm) long

1шт.

a172784 SWITCH - Air filter restriction -

1шт.

adopted on C890003.

1шт.
