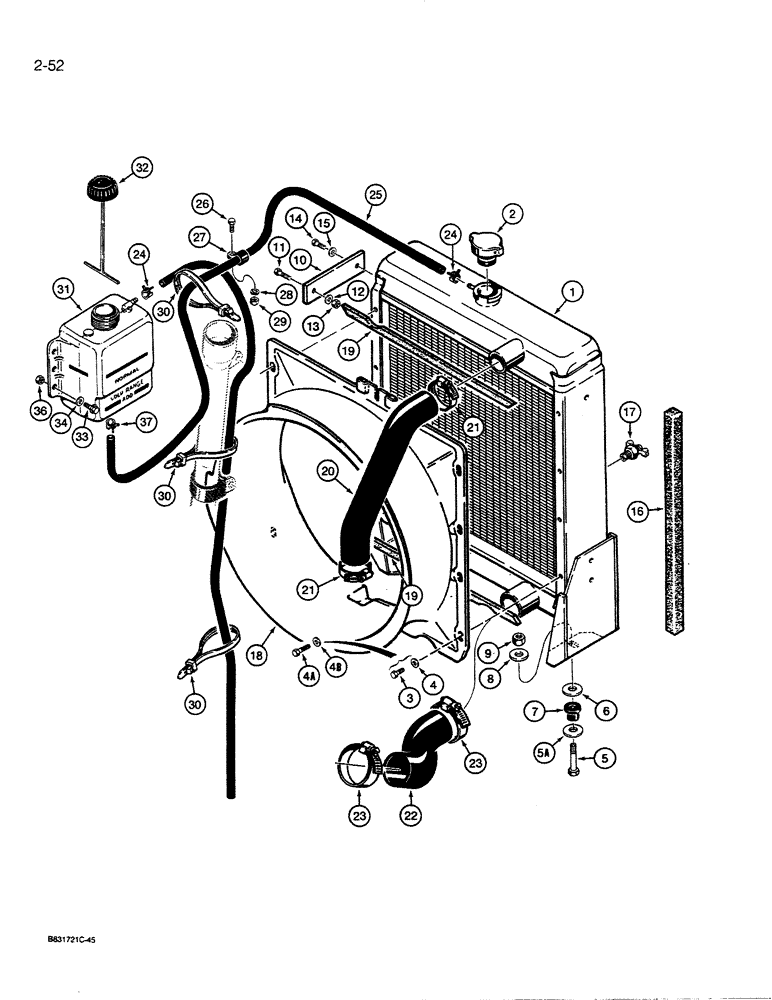

Запчасти Case 455C (2-52) - RADIATOR, HOSES, AND COOLANT BOTTLE (02) - ENGINE

1

A172867

RADIATOR

Standard, if used

1шт.

1

A172869

RADIATOR

Antisandblast, if used

1шт.

2

A170241

RADIATOR CAP

Filler, 15 psi

1шт.

3

814-8014

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

Used with item 4 washer, no longer used, replace with Ref. 4A and 4B

8шт.

4

195-521

WASHER,5/16", SAE

Used with item 3 bolt, no longer used, replace with Ref. 4A and 4B

8шт.

4a

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Used with Ref. 4B washer

8шт.

4b

H272880

WASHER

Flat, special, used with Ref. 4A bolt

8шт.

5

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

5a

D25022

WASHER

Flat, special

2шт.

6

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

Flat, hardened, special

2шт.

7

R29799

SHOCK ABSORBER

INSULATOR - rubber, radiator mounting

2шт.

8

196-15

WASHER,17/32" x 1 1/6" x .134"

Flat, hardened, 1/2", plated

2шт.

9

131-1116

LOCK NUT,1/2"-13, GB

2шт.

10

A170665

STABILIZER

STRAP - radiator mounting

2шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

Flat, 3/8", hardened

2шт.

13

131-179

LOCK NUT,3/8"-16, GA

2шт.

14

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Use with Loctite 242

2шт.

15

195-103

WASHER,5/16"

2шт.

16

REF

INSTRUCTION

PAD - radiator baffle, 23-13/16" (580 mm) long, cut from A139751 bulk strip, see below

2шт.

17

217-92

COCK

VALVE - drain, 1/4" NPT

1шт.

18

A173459

SHROUD

Fan

1шт.

19

A173165

SEALING STRIP

Fan shroud, adhesive-backed

2шт.

20

A170239

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4 CLASS C PER SAE J20 OR SAE 20R4 CLASS D1

Upper

1шт.

21

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

Upper radiator, adjustable

2шт.

22

A170633

RADIATOR HOSE,58.00 mm ID x 220.00 mm, SAE 20R4 PER SAE J20 OR SAE 20R4 CLASS D1

Lower

1шт.

23

214-177

CLIP

CLAMP - lower radiator hose, adjustable

2шт.

24

A171099

HOSE CLAMP,13.2mm - 15.4mm

Spring-type, coolant bottle hoses

2шт.

25

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

Cut from A172261 hose, Radiator to Coolant Bottle and Bottle Overflow

2шт.

A139751

FILLING STRIP

PAD - bulk strip, 75" (1905 mm) long

1шт.

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

1шт.

345-44

ADHESIVE

For attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.

26

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

27

49838

CLAMP

Coolant hose, at hood and side shield support

1шт.

28

192-21

LOCK WASHER,3/8"

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

1шт.

31

L127093

RESERVOIR

BOTTLE (Replaces A184373)

1шт.

32

1547924C1

CAP

Coolant bottle, with tether (replaces A184079)

1шт.

Ref: 32 1547924c1 CAP made by Kelch replaces

1шт.

Ref: 32 made by Flambeau. Per ECN C920172.

1шт.

33

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

34

495-11034

WASHER,5/16", SAE

4шт.

36

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Replaces lock washer and regular hex nut used on some models

4шт.

37

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adjustable, coolant bottle inlet

1шт.
