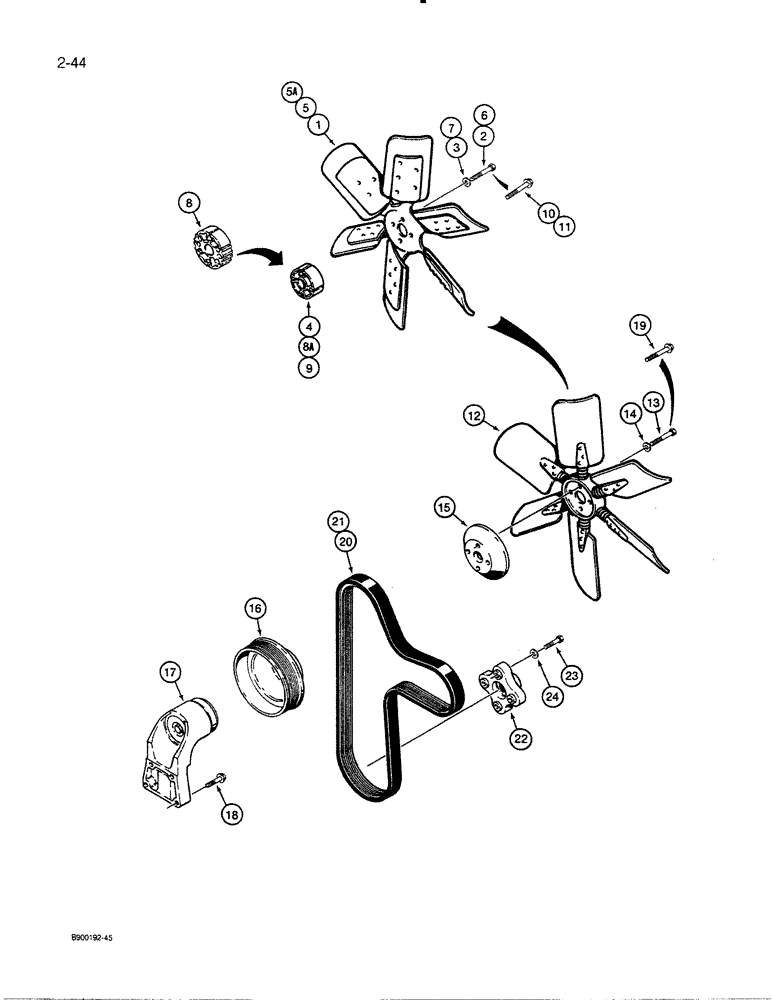

Запчасти Case 455C (2-44) - RADIATOR FAN, BELT, & MOUNTING, PUSHER & PULLER FAN, 50 MM BOLT CIRCLE, USED BEF. ENG. SN 44144174 (02) - ENGINE

1

A171555

FAN

PUSHER FAN - use with J907070 or J908270 fan bracket and J902709 pulley

1шт.

The engine fan brackets and pulley used with the 50 mm bolt circle pusher and puller fans described above are not illustrated on Fig. 2-44 (opposite). See Fig. 2-2 for these and other related parts.

1шт.

1

A171552

FAN

PULLER FAN - use with J907070 or J908270 fan bracket and J902709 pulley, not shown

1шт.

The engine fan brackets and pulley used with the 50 mm bolt circle pusher and puller fans described above are not illustrated on Figure 2-44 (opposite). See Figure 2-02 for these and other related parts.

1шт.

2

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

- hex, 8 - 1.25 x 55 mm, class 10.9, plated

4шт.

3

H426775

WASHER

- flat, 8 mm, hardened, plated

4шт.

4

A172621

SPACER

- use with item 1 pusher or puller fan only

1шт.

PUSHER AND PULLER FAN - 60 mm BOLT CIRCLE, USED ON ENGINE SN 44144174 AND AFTER

1шт.

5

A173543

FAN

PUSHER FAN - use with A173327 spacer (Ref. 8) and J910828 or J911922 fan bracket, Ref. 17, and J908448 pulley, Ref. 16

1шт.

5a

A173545

FAN

PULLER FAN - use with A184523 spacer (Ref. 8A) and J910828 or J911922 fan bracket, Ref. 17, and J908448 pulley, Ref. 16, fan not shown

1шт.

6

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

- hex, 10 mm - 1.5 x 55 mm, class 10.9, Used with A173327 spacer, Ref. 8

4шт.

7

25709R1

WASHER

- flat, 10 mm, hardened, used with Ref. 6 bolt

4шт.

8

A173327

SPACER

- use with Ref. 5 pusher fan, use with J910828 or J911922 fan bracket, Ref. 17, no longer available, order A184544 spacer, Ref. 9

1шт.

8a

A184523

SPACER

- 2-1/8 inch wide, used with Ref. 5A puller fan and J910828 or J911922 fan bracket, Ref. 17

1шт.

9

A184544

SPACER

- 1-1/4 inch wide, used with Ref. 5 pusher fan and J910828 or J911922 fan bracket, Ref. 17

1шт.

10

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 75 mm, class 10.9, use with Ref. 5A fan and Ref. 8A spacer only, if used

4шт.

11

J900634

FLANGE BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

BOLT - hex flange, 10 - 1.5 x 50 mm, use with Ref. 9 spacer, pusher and puller fan

4шт.

A184723

KIT

- reversible fan, contains all parts needed to retrofit earlier models equipped with the pusher or puller fans, Includes: Ref. 12 - 19

1шт.

12

A184472

FAN

- reversible, use with J911922 fan bracket only

1шт.

13

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10-1.5 x 50 mm, class 10.9, No longer available, Order J900634 flange head bolt, Ref. 19

4шт.

14

25709R1

WASHER

- flat, 10 mm, hardened, used with Ref. 13 bolt

4шт.

15

A184539

SPACER

- use with reversible fan only

1шт.

16

J908448

PULLEY

- fan, 60 mm bolt circle

1шт.

17

J911922

SUPPORT ASSY.

BRACKET - fan, component parts not serviced separately

1шт.

18

J900678

BOLT,Hex Flg, M8 x 40mm, Cl 8.8

- hex flange, 8 - 1.25 x 40 mm

4шт.

19

J900634

FLANGE BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

BOLT - hex flange, 10 - 1.5 x 50 mm

4шт.

20

J903098

V-BELT,3.56 mm W x 1536.70 mm L, 8 Ribs

Fan, no Longer Available, Order J911563 Belt, Ref. 21 3.56 mm W x 1536.70 mm L, 8 Ribs

1шт.

21

J911563

V-BELT,27.92mm W x 1536.7mm L, 8 Ribs

3.56 mm W x 1536.70 mm L, 8 Ribs, Fan

1шт.

22

D90883

SPLINED COUPLING

COUPLING - flexible, crankshaft

1шт.

23

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

24

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flat, hardened, 7/16", special

4шт.
