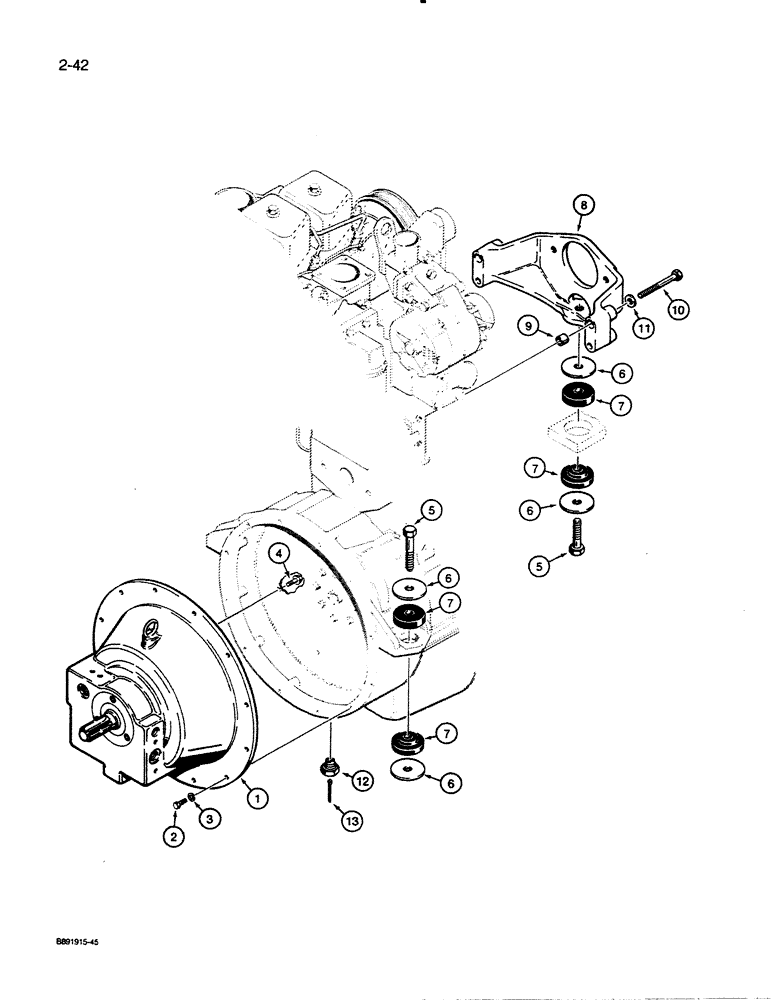

Запчасти Case 455C (2-42) - ENGINE, FLYWHEEL, AND TORQUE CONVERTER MOUNTING (02) - ENGINE

1

REF

INSTRUCTION

TORQUE CONVERTER ASSEMBLY - for correct assembly and components, see Fig. 6-02

1шт.

2

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

12шт.

3

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

12шт.

4

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

BOLT - heavy hex flange, special, flywheel mounting

6шт.

5

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- hex head, 5/8" - 11 NC x 3-1/2", use with Loctite 242

3шт.

6

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

- flat, 5/8", special

6шт.

7

R49482

RUBBER MOUNTING

INSULATOR - rubber, engine and flywheel housing mounting

6шт.

8

A170580

SUPPORT

- engine, front

1шт.

9

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

BUSHING - engine support

2шт.

10

A171690

BOLT

BOLT - special, 12 mm - 1.75 x 85 mm

4шт.

11

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, plated

4шт.

12

L113178

PLUG

BUSHING - pipe

1шт.

13

132-118

COTTER PIN,7/32" x 1"

PIN - cotter, 1/16 x 1 inch

1шт.
