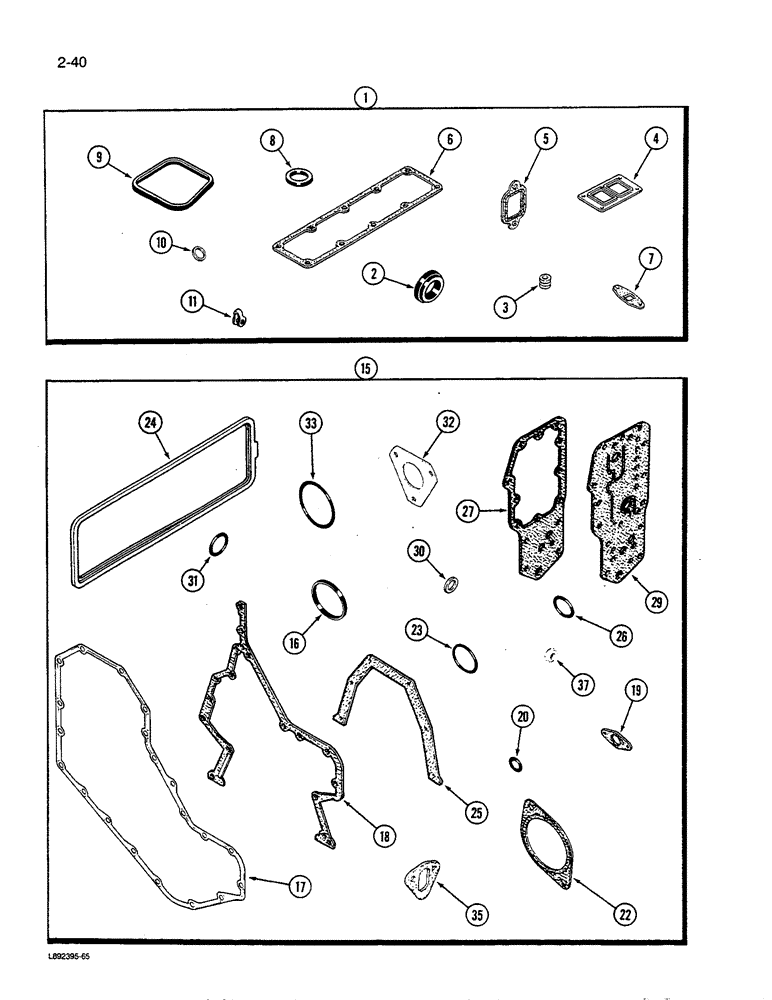

Запчасти Case 455C (2-40) - ENGINE GASKET KITS, 4-390 ENGINE, 4T-390 ENGINE, VALVE GRIND (02) - ENGINE

1

A77672

GASKET KIT

- valve grind, engine, see Note, replaces A77481, Includes: Ref. 1 - 11

1шт.

2

J903301

GASKET

- thermostat

1шт.

3

J901097

SEAL

- valve

8шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

6

J914028

GASKET

- intake manifold, replaces J901999

1шт.

7

J914388

GASKET

- oil drain tube, replaces J901805

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap, not used this application

1шт.

9

J902666

GASKET

SEAL - rocker cover

4шт.

10

J900808

SEAL

- injector

4шт.

11

J903380

SEAL

- connector

4шт.

15

A77671

GASKET KIT

- engine block, see Note, replaces A77480, Includes: Ref. 15 - 37

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, cylinder block

1шт.

17

J914385

GASKET,1.02mm Thk

- cover to housing replaces J910500, cylinder block

1шт.

18

J916131

GASKET

- gear housing replaces J907836, cylinder block

1шт.

19

J905595

GASKET

- pin housing, cylinder block

1шт.

20

J913994

O-RING

- sealing, replaces J903927, cylinder block

1шт.

22

J913192

GASKET

- cover plate, replaces A77441, cylinder block

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces 22290R1), Cylinder block -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J904056

GASKET

- tappet cover, cylinder block

1шт.

25

J914386

GASKET

- seal retainer, replaces J901019, cylinder block

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, replaces J901467, cylinder block

1шт.

27

J914387

GASKET

- cooler core, replaces J904427, cylinder block

1шт.

29

J912532

GASKET

- filter head, replaces J912638, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, replaces J906704, cylinder block

1шт.

32

J914389

GASKET

- fuel pump, replaces J905685, cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block, replaces A157927, cylinder

1шт.

35

J914304

GASKET

- fuel lift pump, replaces J904044, cylinder block

1шт.

37

J900267

SEAL

ASSEMBLY - cover bolt, cylinder block

4шт.
