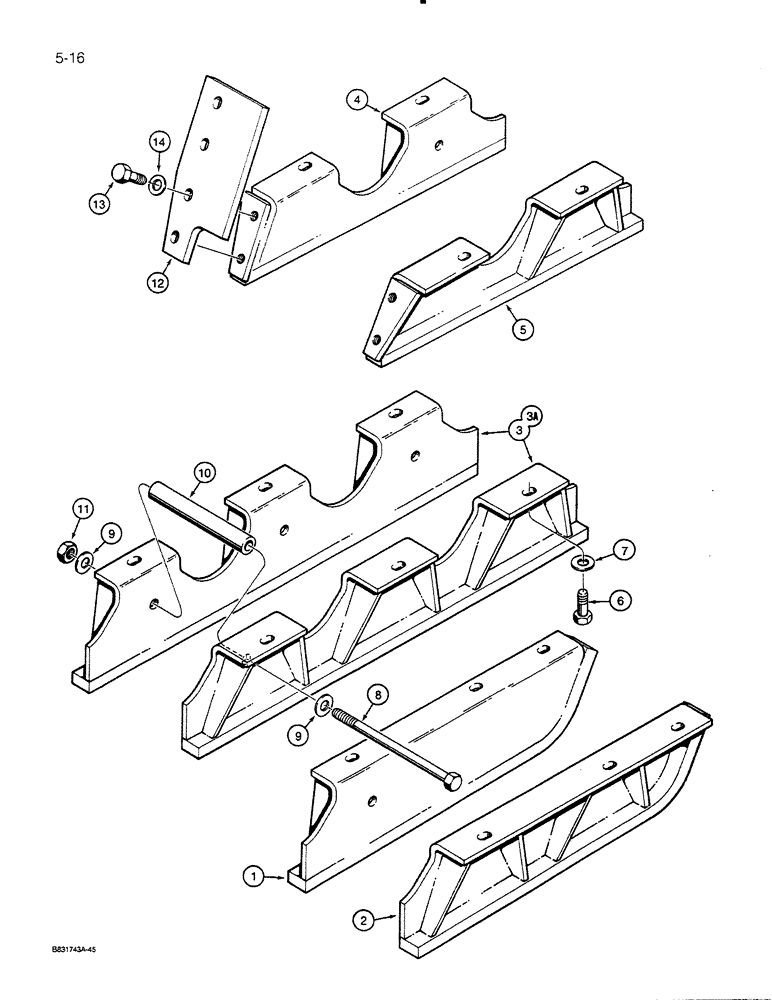

Запчасти Case 455C (5-16) - TRACK GUARDS (11) - TRACKS/STEERING

1

R36674

GUARD

TRACK GUARD - front, left-hand, all models

2шт.

2

R36675

GUARD

TRACK GUARD - front, right-hand, all models

2шт.

3

R36673

GUARD

TRACK GUARD - center, used on all models except LGP extended track and 53 inch gauge long track dozer models

4шт.

3a

R55612

GUARD

TRACK GUARD - center, used on LGP extended track and 53 inch gauge long track dozer models, not shown

4шт.

4

R47465

GUARD

TRACK GUARD - rear, left-hand, all models

2шт.

5

R47466

GUARD

TRACK GUARD - rear, right-hand, all models

2шт.

6

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Use with Loctite 242 Hex, 1/2"-13 x 1 1/4", G5, Full Thd

32-36шт.

7

R24718

WASHER

- flat, 1/2", hardened

32-36шт.

8

15-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

- hex head, 1/2" - 13 NC x 8-1/2"

10-12шт.

9

R24718

WASHER

- flat, 1/2", hardened

20-24шт.

10

R36665

GUARD

SPACER - track guards

10-12шт.

11

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

10-12шт.

12

R36667

COVER

GUARD - rear, sprocket

4шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Use with Loctite 242 Hex, 1/2"-13 x 1 1/4", G5, Full Thd

16шт.

14

R24718

WASHER

- flat, 1/2", hardened

16шт.
