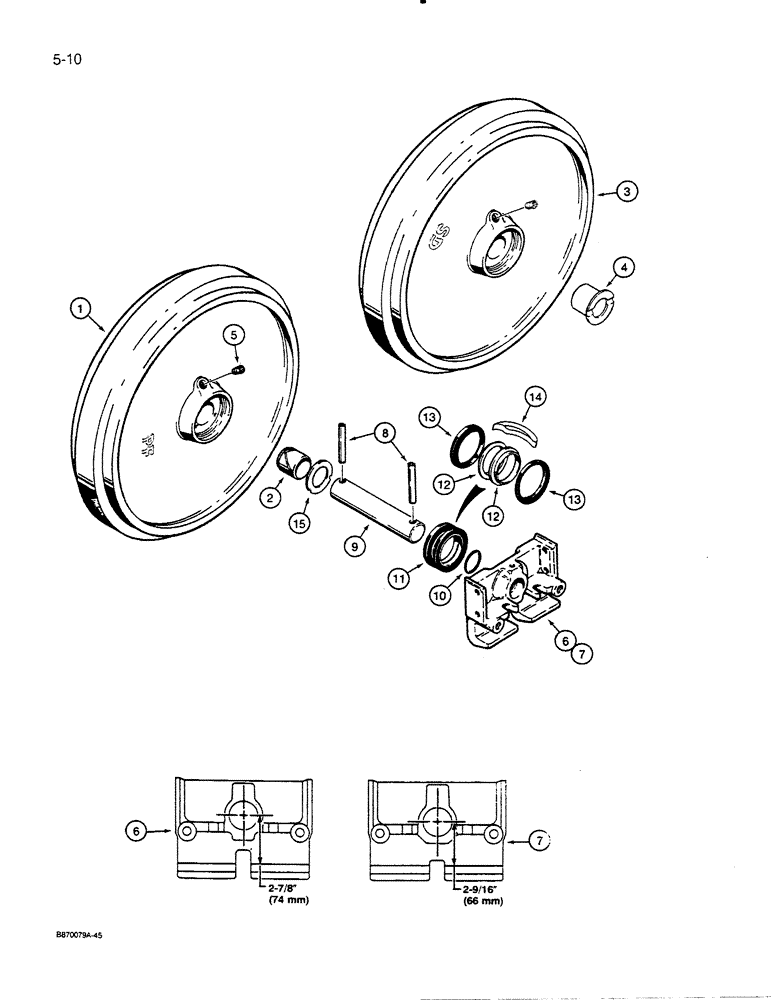

Запчасти Case 455C (5-10) - IDLER ASSEMBLY (11) - TRACKS/STEERING

R52404

STEERING IDLER

IDLER ASSEMBLY - track, stamped "PF" on the face of the hub, hub shaft bore is 1-15/16 inch diameter

2шт.

R52404 IDLER ASSY IS DOMESTIC AND R56624 IS A GOLDSTAR.

1шт.

R56624

IDLER ASSEMBLY - track, stamped "GS" on the face of the hub, hub shaft bore is 2-1/16 inch diameter, for service order R52404 idler assembly (above)

2шт.

R50452

BUSHING

HUB ASSEMBLY - includes split bushing R24542, Ref. 2, bushing bore is 1-15/16 inch diameter

1шт.

1

NSS

NOT SOLD SEPARAT

HUB - R50452 hub assembly

1шт.

2

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

- split, R50452 hub assembly

2шт.

3

R56625

HUB - use with flange bushing R56617, Ref. 4, bushing bore is 2-1/16 inch diameter, for service order R50452 hub assembly, and 2 - D35266 thrust washers, Ref. 15

1шт.

4

R56617

BUSHING,44.51mm ID x 63.5mm OD x 41mm L

- with flange, use with R56625 hub, Ref. 3, only

2шт.

5

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

6

R46694

BRACKET

- mounting, see illustration for measurement for identification, no longer available, replace with R52402 bracket, Ref. 7, and 2 - R52401 support blocks, Ref. 11, Fig. 5-6

2шт.

Do not mix Ref. 6 and Ref. 7 brackets on one idler assembly. Must use either 2 of Ref. 6 or 2 - of Ref. 7. However, you may use 2 - Ref. 6 brackets on one idler, and 2 - Ref. 7 brackets on the other idler. Measurement is to be taken from the centerline of the shaft bore to the top of the lower lip - see illustration.

1шт.

7

R52402

BRACKET

- mounting, see illustration for measurement for identification

2шт.

Do not mix Ref. 6 and Ref. 7 brackets on one idler assembly. Must use either 2 of Ref. 6 or 2 - of Ref. 7. However, you may use 2 - Ref. 6 brackets on one idler, and 2 - Ref. 7 brackets on the other idler. Measurement is to be taken from the centerline of the shaft bore to the top of the lower lip - see illustration.

1шт.

8

R50570

GROOVED PIN,1/2" x 3 1/2", Type A, Hardened

Pin, Grooved, , shaft retaining, replaces standard roll pin used on some models 1/2" x 3 1/2", Type A, Hardened

2шт.

9

R46697

SHAFT

- idler

1шт.

10

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- shaft

2шт.

11

R39273

SEAL

FACE SEAL - idler, Includes: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

RING - seal retaining

2шт.

D36826

SEAL KIT

KIT - repair, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

14

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

15

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust, use with R50452 hub assembly

2шт.
