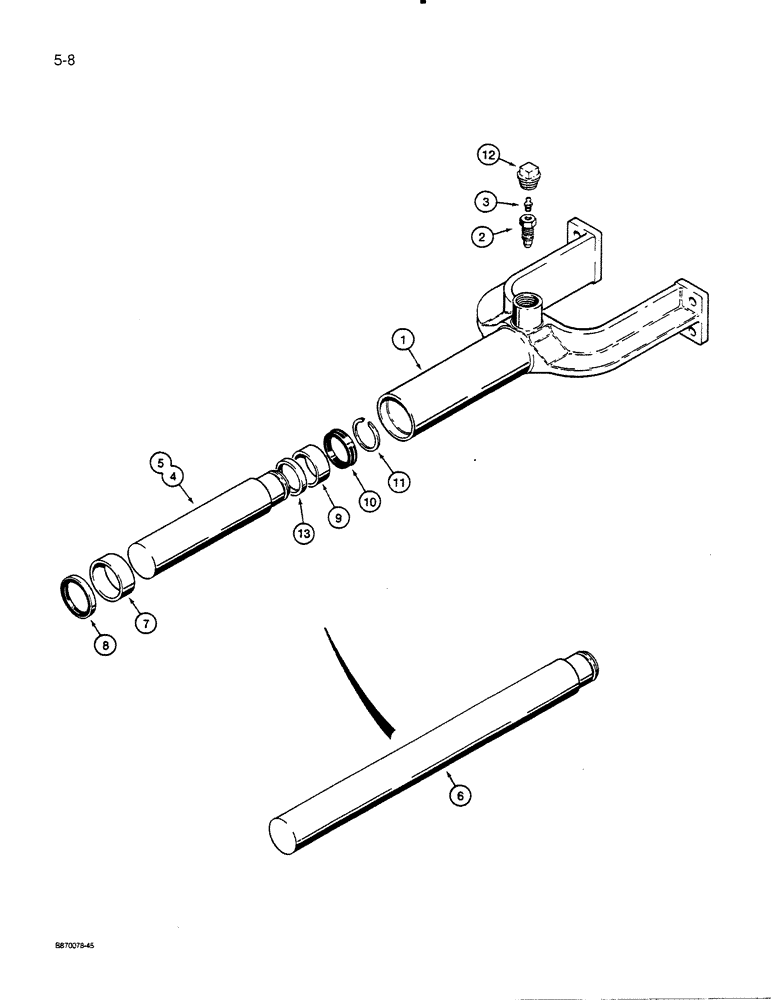

Запчасти Case 455C (5-08) - TRACK ADJUSTER ASSEMBLY (11) - TRACKS/STEERING

R51909

ADJUSTER

TRACK ADJUSTER ASSEMBLY - yoke, used on loaders, standard 53 inch gauge dozer, and 64 inch gauge standard length LGP dozer models, Includes: Ref. 1 - 13 Uses a 282mm Piston

2шт.

R54459

ADJUSTER

TRACK ADJUSTER ASSEMBLY - yoke, used on 64 inch gauge LGP extended track dozer and 53 inch gauge long track dozer models, Includes: Ref. 1 - 13 Uses a 511mm Piston

2шт.

1

R42184

YOKE

- cylinder

1шт.

2

D35287

CHECK VALVE,5/8" - 18

CHECK VALVE - track adjuster

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

4

R29669

PISTON

- track adjuster, used without backup ring, Ref. 13, no longer available, replace with Ref. 5 or 6 piston as required, and Ref. 13 backup ring

1шт.

5

R51793

PISTON

- track adjuster, used on all models except LGP extended track and 53 inch gauge long track dozer models, if used

1шт.

6

R54460

PISTON

- track adjuster, used on LGP extended track and 53 inch gauge long track dozer models, if used

1шт.

7

D35503

RING,50.7mm ID x 60.35mm OD x 22.23mm Thk

BUSHING - piston, recoil housing end

1шт.

8

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston

1шт.

9

D37289

BUSHING,44.35mm ID x 53.92mm OD x 19.05mm L

- piston, yoke end

1шт.

10

D95382

SEAL,44.27mm ID x 54.05mm OD x 10.69mm Thk

U-CUP SEAL - piston

1шт.

11

A27085

RING

RETAINING RING - piston

1шт.

12

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

13

R51794

PISTON RING,Square, 5.1mm Thk x 44.46mm ID

BACKUP RING - bushing

1шт.
